Hayter RT380H - 135E (135E280000001 - 135E280999999) - Fixed Steering Assy

Name: Hayter RT380H - 135E (135E280000001 - 135E280999999) - Fixed Steering Assy
SKU: RT380H 135E01 fixed steering assy-group
Price: 0.4 GBP
Availability: InStock

Part No. RT380H 135E01 fixed steering assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter RT380H - 135E (135E280000001 - 135E280999999) - Fixed Steering Assy

Description

Hayter RT380H - 135E

Serial No: 135E280000001 - 135E280999999

Fixed Steering Assy - Parts Diagram

	Part No.	Details
1	HA98-1467 Available to backorder	Steering Wheel Asm	£369.12 £307.60
2	HA32121-111 Available to backorder	Pin-Roll	£4.14 £3.45
4	HA88-4190 Available to backorder	Bushing-Sliding	£24.95 £20.79
6	HA3256-22 Available to backorder	Washer-Flat	£0.64 £0.53
7	HA321-4 Available to backorder	Screw-HH	£1.22 £1.02
9	HA3296-42 Available to backorder	Nut-Lock. Ni	£0.48 £0.40
11	HA98-1468 Available to backorder	Cover-Wheel. Steering	£21.02 £17.52

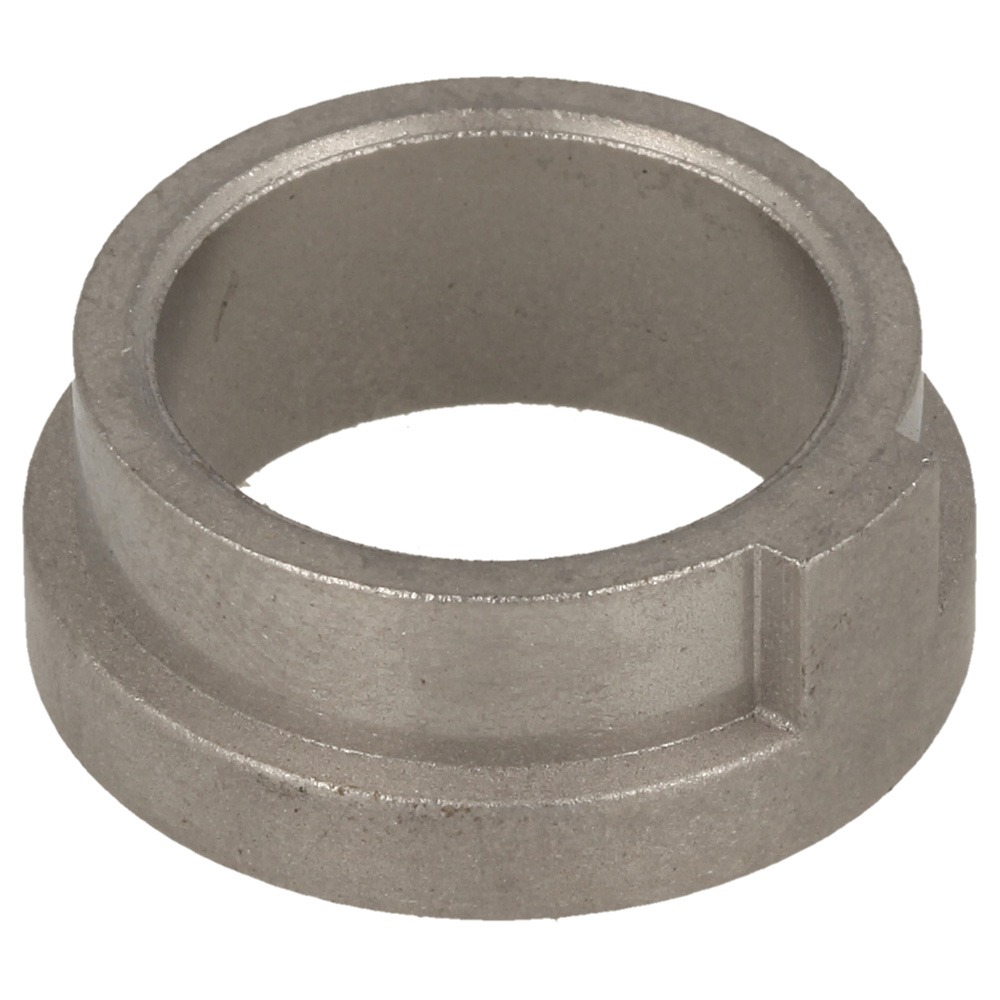

16	HA88-5150 Available to backorder	Bearing-Flange	£5.32 £4.43
17	HA3-6498 Available to backorder	Washer-Thrust	£7.84 £6.53
18	HA32151-48 Available to backorder	E-Ring	£1.74 £1.45
24	HA88-4150 Available to backorder	Plug	£7.46 £6.22
25	HA88-6380 Available to backorder	Shaft-Steering. Long	£273.72 £228.10
