Hayter RT380H - 135E (135E280000001 - 135E280999999) - Engine Assy

Description

Hayter RT380H - 135E

Serial No: 135E280000001 - 135E280999999

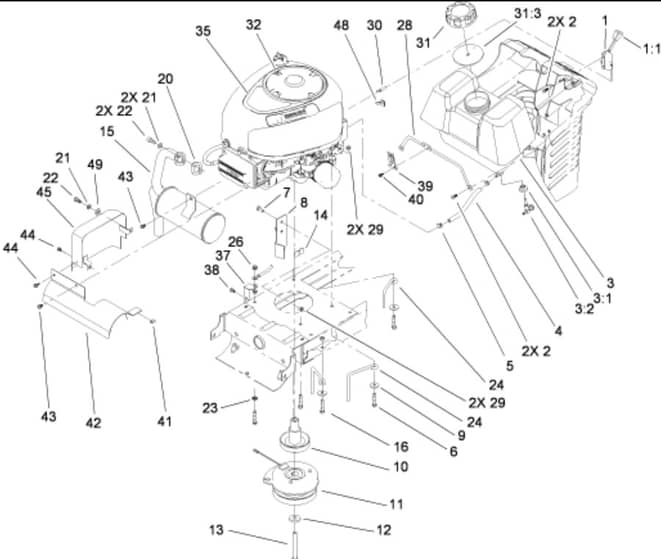

Engine Assy - Parts Diagram

	Part No.	Details
1	HA88-4340 Available to backorder	Throttle Control Asm	£61.57 £51.31
2	HA27-0220 Available to backorder	Screw-Special	£8.77 £7.31
3	HA88-3880 Available to backorder	Gas Tank Asm	£301.20 £251.00
4	HA107-9297 Available to backorder	Hose-Fuel	£9.02 £7.52
5	HA2412-98 Available to backorder	Clamp-Hose	£1.72 £1.43
6	HA322-9 Available to backorder	Screw-HH	£3.83 £3.19
7	HA322-3 Available to backorder	Screw-HH	£0.97 £0.81
8	HA107-4914-03 Available to backorder	Stop-Clutch	£21.77 £18.14
9	HA5-4460 Available to backorder	Washer-Pivot	£10.63 £8.86
10	HA107-4915 Available to backorder	Pulley-Engine	£198.48 £165.40
11	HA66-0120 Available to backorder	Knob	£6.85 £5.71
11	HA108-9510 Available to backorder	Clutch-Pto. Electric	£823.67 £686.39
13	HA3212-18 Available to backorder	Screw-HH	£5.46 £4.55
14	HA98-5023 Available to backorder	Bumper	£11.63 £9.69
15	HA114-3185 Available to backorder	Muffler-Exhaust	£377.99 £314.99
16	HA9267154 Available to backorder	Screw-Hwh. Taptite	£5.32 £4.43
20	HA88-4410 In stock	Gasket-Exhaust	£5.09 £4.24
21	HA3253-4 Available to backorder	Washer-Lock	£0.43 £0.36
23	HA3255-8 Available to backorder	Washer-Lock	£0.54 £0.45
24	HA93-3855 Available to backorder	Guide-Belt. Rh	£21.62 £18.02
26	HA32149-1 Available to backorder	Nut-Keps	£6.94 £5.78
28	HA94-1952 Available to backorder	Rod-Tank. Gas	£58.24 £48.53
29	HA3296-29 Available to backorder	Nut-Lock. Ni	£2.59 £2.16
30	HA88-4350 Available to backorder	Throttle Cable Asm	£43.26 £36.05
31	HA46-6560 In stock	Bushing	£5.24 £4.37
31	HA88-3980 Available to backorder	Gas Cap Asm	£39.58 £32.98
32	HA104048 Available to backorder	Valve-Fuel	£54.91 £45.76
37	HA93-3809 Available to backorder	Bracket-Ground	£8.66 £7.22
39	HA94-1951 Available to backorder	Latch-Hood	£12.29 £10.24
40	HA32144-112 Available to backorder	Screw-Hwh	£1.22 £1.02
41	HA93-3882 Available to backorder	Clip-Tinnerman	£3.29 £2.74
43	HA9266714 Available to backorder	Screw-Hwh	£1.22 £1.02
44	HA32104-76 Available to backorder	Screw-Hwhtf	£2.83 £2.36
45	HA93-8450-03 Available to backorder	Heat Shield Asm	£162.48 £135.40
48	HA88-4490 Available to backorder	Reducer-Throttle. Rpm	£22.26 £18.55
49	HA3256-23 Available to backorder	Washer-Plain	£0.48 £0.40
313	HA88-4010 In stock	Gasket-Cap. Gas	Was £33.50 £27.92 Special Price £22.39 £18.66
