Hayter RT380H - 135E (135E280000001 - 135E280999999) - Electrical Assy

Description

Hayter RT380H - 135E

Serial No: 135E280000001 - 135E280999999

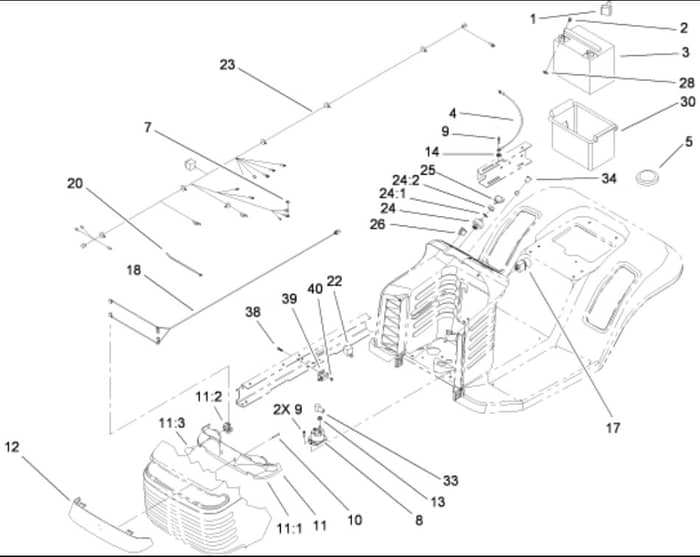

Electrical Assy - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA28-8080 Available to backorder	Boot-Terminal	£27.50 £22.92
2	HA321-4 Available to backorder	Screw-HH	£1.18 £0.98
3	HA105-1692 Available to backorder	Battery-155 Cca	£199.08 £165.90
4	HA44-8110 Available to backorder	Wire Asm	£27.14 £22.62
5	HA100-3524 Available to backorder	Switch-Seat	£69.38 £57.82
8	HA106-8245 Available to backorder	Solenoid-Starter	£83.64 £69.70
9	HA9266714 Available to backorder	Screw-Hwh	£1.18 £0.98
10	HA32144-32 Available to backorder	Screw	£2.74 £2.28
11	HA88-3970 Available to backorder	Headlight Reflector Asm	£229.20 £191.00
12	HA88-3960 Available to backorder	Lens-Headlight	£103.44 £86.20
13	HA32149-2 Available to backorder	Nut-Keps	£2.86 £2.38
17	HA93-9998 Available to backorder	Switch-Pto	£50.24 £41.87
18	HA99-1935 Available to backorder	Harness-Headlight	£70.06 £58.38
20	HA614249 Available to backorder	Tie-Cable	£0.94 £0.78
22	HA98-7249 Available to backorder	Relay	£25.12 £20.93
23	HA107-4912 Available to backorder	Harness-Wire	£352.56 £293.80
24	HA104-2541 Available to backorder	Key Switch Asm	£43.90 £36.58
25	HA700918 In stock	Key	£7.04 £5.87
26	HA92-8875 Available to backorder	Switch-Rocker	£19.12 £15.93
28	HA32103-22 Available to backorder	Nut-Wing	£2.86 £2.38
30	HA88-4040 Available to backorder	Box-Battery	£59.52 £49.60
33	HA93-3190 Available to backorder	Boot-Insulator. Terminal	£10.44 £8.70
34	HA95-7652 Available to backorder	Light-Indicator	£55.02 £45.85
38	HA3274-14 Available to backorder	Screw-Hsh	£0.34 £0.28
39	HA1-513051 Available to backorder	Switch-Pole. Single	£21.52 £17.93
40	HA3296-2 Available to backorder	Nut-Lock. Ni	£2.26 £1.88
112	HA116262 Available to backorder	Socket-Headlight	£75.62 £63.02
113	HA7228 Available to backorder	Bulb-1156	£33.78 £28.15
241	HA3254-5 Available to backorder	Washer-Lock	£0.80 £0.67
242	HA218-461 Available to backorder	Nut-HH	£3.00 £2.50
