Hayter RT380H - 135E (135E280000001 - 135E280999999) - Cylinder Assy B&S 31E777-0130-E1

Description

Hayter RT380H - 135E

Serial No: 135E280000001 - 135E280999999

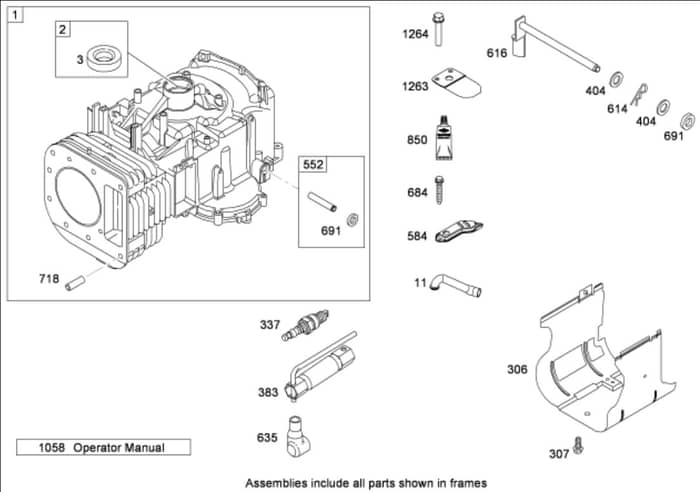

Cylinder Assy Briggs & Stratton 31E777-0130-E1 - Parts Diagram

	Part No.	Details
1	BP796010 Available to backorder	Cylinder Asm	£336.44 £280.37
2	BP797673 Available to backorder	Bushing And Seal Kit (Magneto Side)	£28.39 £23.66
3	BP391086S In stock	Seal-Oil (Magneto Side)	£5.48 £4.57
11	BP794683 In stock	Tube-Breather	£11.86 £9.88
307	BP691003 Available to backorder	Screw (Cylinder Shield)	£4.84 £4.03
337	BP691043 In stock	Spark Plug	£7.68 £6.40
383	BP89838S Available to backorder	Wrench-Spark Plug	£8.80 £7.33
404	BP691691 Available to backorder	Washer (Governor Crank)	£4.37 £3.64
552	BP697144 Available to backorder	Bushing-Crank. Governor	£11.98 £9.98
584	BP794682 Available to backorder	Cover-Passage. Breather	£7.60 £6.33
614	BP691620 Available to backorder	Pin-Cotter	£4.99 £4.16
616	BP692012 Available to backorder	Crank-Governor	£15.26 £12.72
635	BP691909 Available to backorder	Boot-Spark Plug	£5.86 £4.88
691	BP692407 Available to backorder	Seal-Shaft. Governor	£9.08 £7.57
718	BP690959 Available to backorder	Pin-Locating	£5.44 £4.53
1263	BP697124 In stock	Reed-Breather	£6.64 £5.53
