Hayter RT380H - 135E (135E280000001 - 135E280999999) - Carb Kit (Nikki) B&S 31E777-0130-E1

Description

Hayter RT380H - 135E

Serial No: 135E280000001 - 135E280999999

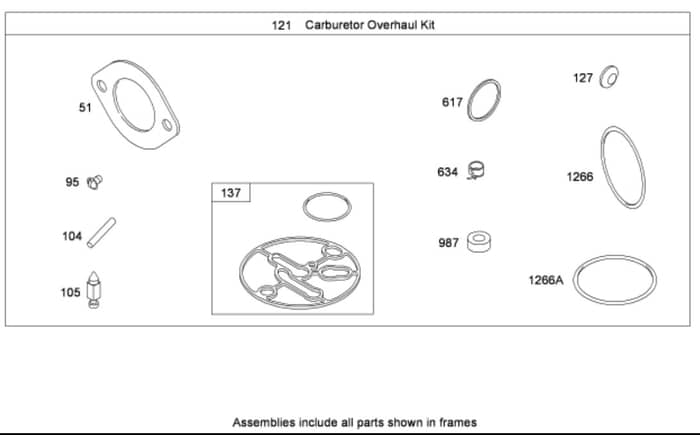

Carb Kit (Nikki) Briggs & Stratton 31E777-0130-E1 - Parts Diagram

	Part No.	Details
634	BP791850 Available to backorder	Spring And Seal Asm	£3.77 £3.14
51	BP692137 In stock	Gasket-Intake	£4.62 £3.85
95	BP690718 Available to backorder	Screw (Throttle Valve)	£5.38 £4.48
104	BP694918 Available to backorder	Pin-Hinge. Float	£8.94 £7.45
105	BP696136 In stock	Valve-Float. Needle	£25.43 £21.19
121	BP796184 Available to backorder	Carburetor Overhaul Kit	£58.31 £48.59
137	BP698781 In stock	Gasket-Bowl. Float	£20.40 £17.00
617	BP692138 In stock	Seal-O Ring (Intake Manifold)	£8.58 £7.15
987	BP690998 Available to backorder	Seal-Shaft. Throttle	£10.28 £8.57
1266	BP691917 In stock	Seal-O Ring (Intake Elbow)	£5.57 £4.64
