Hayter RT380H - 135E (135E280000001 - 135E280999999) - 38 Inch Deck Assy

Description

Hayter RT380H - 135E

Serial No: 135E280000001 - 135E280999999

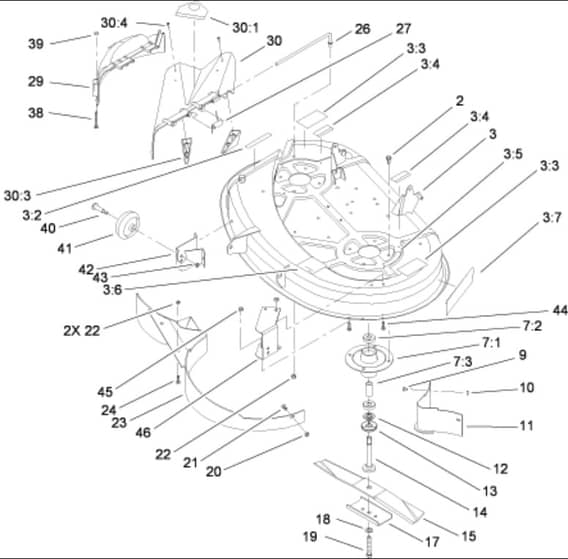

38 Inch Deck Assy - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HA32144-41 Available to backorder	Screw-Taptite	£5.74 £4.78
9	HA321-4 Available to backorder	Screw-HH	£1.42 £1.18
10	HA3296-42 Available to backorder	Nut-Lock. Ni	£0.44 £0.37
11	HA79-1640-03 Available to backorder	Baffle Asm	£94.92 £79.10
12	HA80-4380 Available to backorder	Spacer	£9.16 £7.63
13	HA80-4360 Available to backorder	Shield-Bearing	£27.34 £22.78
14	HA80-4341 Available to backorder	Shaft-Spindle	£75.62 £63.02

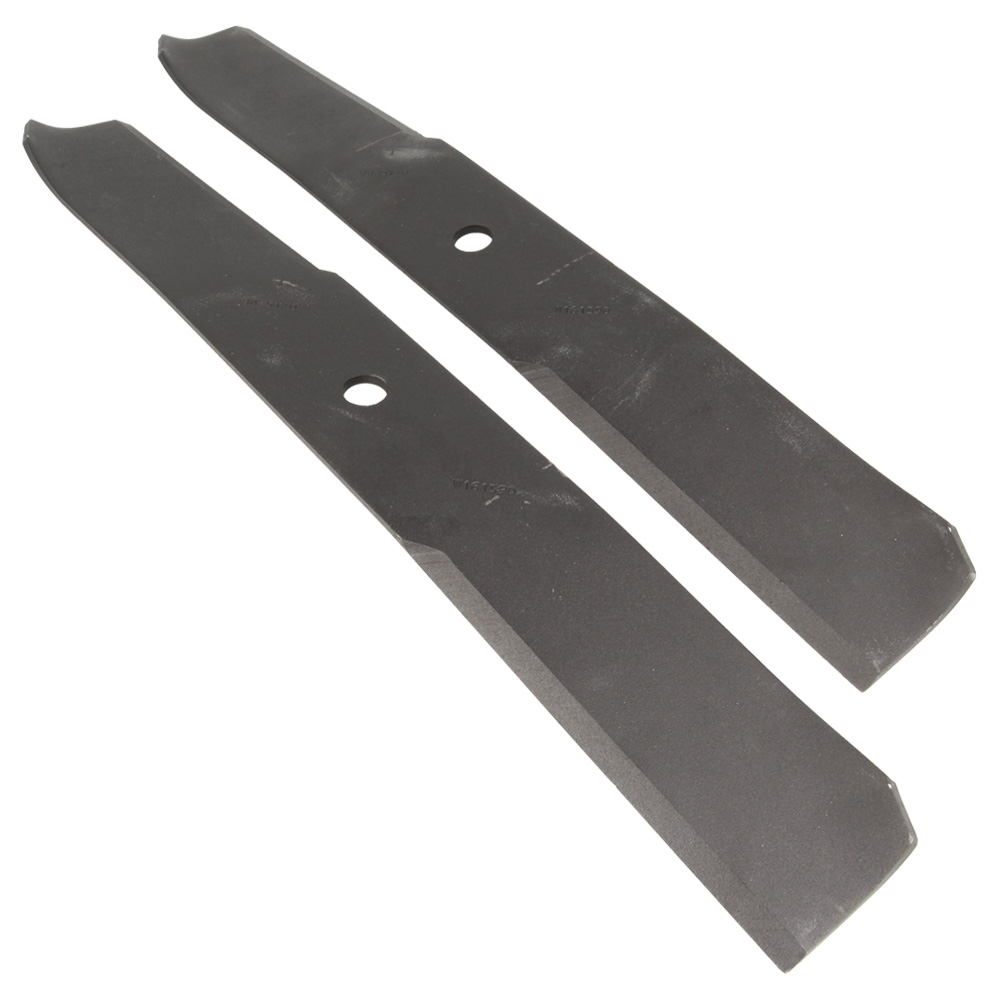

15	HA114-3231 Available to backorder	Blade Kit	£57.06 £47.55
17	HA80-0510-03 Available to backorder	Stiffener-Blade	£25.72 £21.43
18	HA3290-465 Available to backorder	Washer-Belleville	£4.68 £3.90
19	HA26-0671 Available to backorder	Screw-HH	£9.56 £7.97
21	HA3230-1 Available to backorder	Bolt-Carr	£1.78 £1.48
23	HA88-6210 Available to backorder	Baffle-38 Inch	£134.88 £112.40
24	HA323-5 Available to backorder	Screw-HH	£0.77 £0.64
26	HA95-1661 Available to backorder	Rod-Pivot	£23.92 £19.93
27	HA57-6950 Available to backorder	Spring	£40.20 £33.50
30	HA93-7695 Available to backorder	Deflector Asm	£128.70 £107.25
32	HA93-7009 Available to backorder	Decal-Danger	£8.12 £6.77
33	HA93-7010 Available to backorder	Decal-Danger	£14.34 £11.95
34	HA93-6674 Available to backorder	Decal-Warning	£7.88 £6.57
35	HA93-6677 Available to backorder	Decal-Danger. Shield	£11.94 £9.95
36	HA117-0033 Available to backorder	Decal-Routing. Belt	£10.60 £8.83
37	HA114-3233 Available to backorder	Decal-Recycling	£58.70 £48.92
38	HA321-14 Available to backorder	Screw-HH	£1.03 £0.86
39	HA32111-7 Available to backorder	Nut-Cap	£7.40 £6.17
40	HA56-6591 Available to backorder	Screw-Shoulder. Hwh	£9.56 £7.97
41	HA701756 Available to backorder	Wheel-Gage	£9.08 £7.57
42	HA88-5740-03 Available to backorder	Bracket-Wheel. Rh	£59.52 £49.60
43	HA3296-39 Available to backorder	Nut-Lock. Ni	£2.74 £2.28
44	HA322-3 Available to backorder	Screw-HH	£1.13 £0.94
45	HA3296-29 Available to backorder	Nut-Lock. Ni	£2.50 £2.08
46	HA93-3896-03 Available to backorder	Bracket-Wheel. Lh	£90.08 £75.07
71	HA88-4510 Available to backorder	Housing-Spindle	£139.96 £116.63
72	HA38-7820 In stock	Bearing-Ball	£16.74 £13.95
73	HA62-3661 Available to backorder	Spacer	£24.12 £20.10
301	HA93-7317 Available to backorder	Decal-Danger	£11.50 £9.58
303	HA93-7696 Available to backorder	Kicker	£16.74 £13.95
304	HA93-0231 Available to backorder	Screw-Pph	£1.13 £0.94
