Hayter Ranger 53 Pro - 396F (310000301 - 310999999) - Main Assembly

Description

Hayter Ranger 53 Pro - 396F

Serial No: 310000301 - 310999999

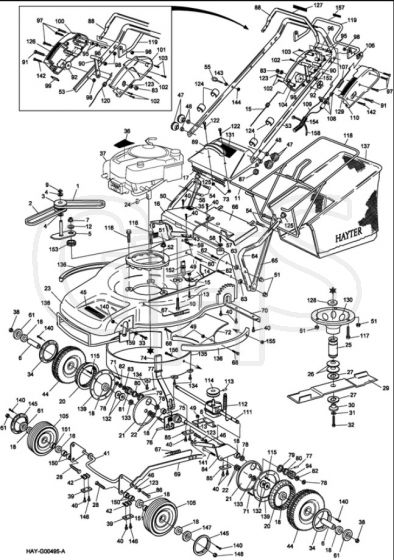

Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HASA284930 Available to backorder	Belt - Variable Pulley To Gearbox	£26.34 £21.95
2	HASA284920 Available to backorder	Belt - Engine Crankshaft To Variable Pulley	£28.56 £23.80
5	HASA380200 Available to backorder	Bracket - Pivot	£23.30 £19.42
13	HA111-4624 Available to backorder	Setscrew	£1.60 £1.33
19	HA320006 In stock	Decal-Hoc	£1.66 £1.38
26	HASA2006400 Available to backorder	Washer - Bellville	£6.80 £5.67
27	HASA3006420 Available to backorder	Washer - Large	£11.68 £9.73
30	HASA3006410 Available to backorder	Spacer - Location	£49.18 £40.98
31	HASA281100 Available to backorder	Washer - Spring	£1.48 £1.23
32	HASA281080 Available to backorder	Screw - Blade	£14.62 £12.18
36	HA111-3202 Available to backorder	Decal - Engine	£6.32 £5.27
42	HASA480180 Available to backorder	Bush - Axle	£1.74 £1.45
43	HA111-4592 Available to backorder	Washer - Plain	£1.74 £1.45
45	HA410087 In stock	Decal	£5.66 £4.72
47	HA111-4637 Available to backorder	Knob - Large	£4.72 £3.93
48	HA111-4638 Available to backorder	Cap	£1.60 £1.33
54	HA111-4642 Available to backorder	Bolt - Carriage	£1.50 £1.25
56	HASA380590 Available to backorder	Support R.H. - Handlebar	£7.96 £6.63
63	HA111-4628 Available to backorder	Washer - Fixing	£1.60 £1.33
65	HASA380300 Available to backorder	Support L.H. - Handlebar	£7.96 £6.63
77	HASA203510 Available to backorder	Key - Drive	£6.04 £5.03
78	HASA144590 Available to backorder	Circlip	£1.48 £1.23
79	HASA403510 Available to backorder	Collar	£4.48 £3.73
80	HASA403520 Available to backorder	Spacer - Plastic	£4.48 £3.73
90	HASA443670 Available to backorder	Lever	£5.06 £4.22
91	HASA147780 Available to backorder	Bolt	£50.98 £42.48
94	HASA242220 Available to backorder	Gear	£16.72 £13.93
96	HASA180790 Available to backorder	Pin - Pivot	£5.84 £4.87
97	HASA140310 Available to backorder	Screw	£1.48 £1.23
102	HASA185610 Available to backorder	Screw - Self Tapping	£1.48 £1.23
104	HASA480820 Available to backorder	Cover	£13.46 £11.22
106	HASA460260 Available to backorder	Spacer - Ground Drive Cable	£1.48 £1.23
107	HASA262090 Available to backorder	Spring - Ground Drive Cable	£5.50 £4.58

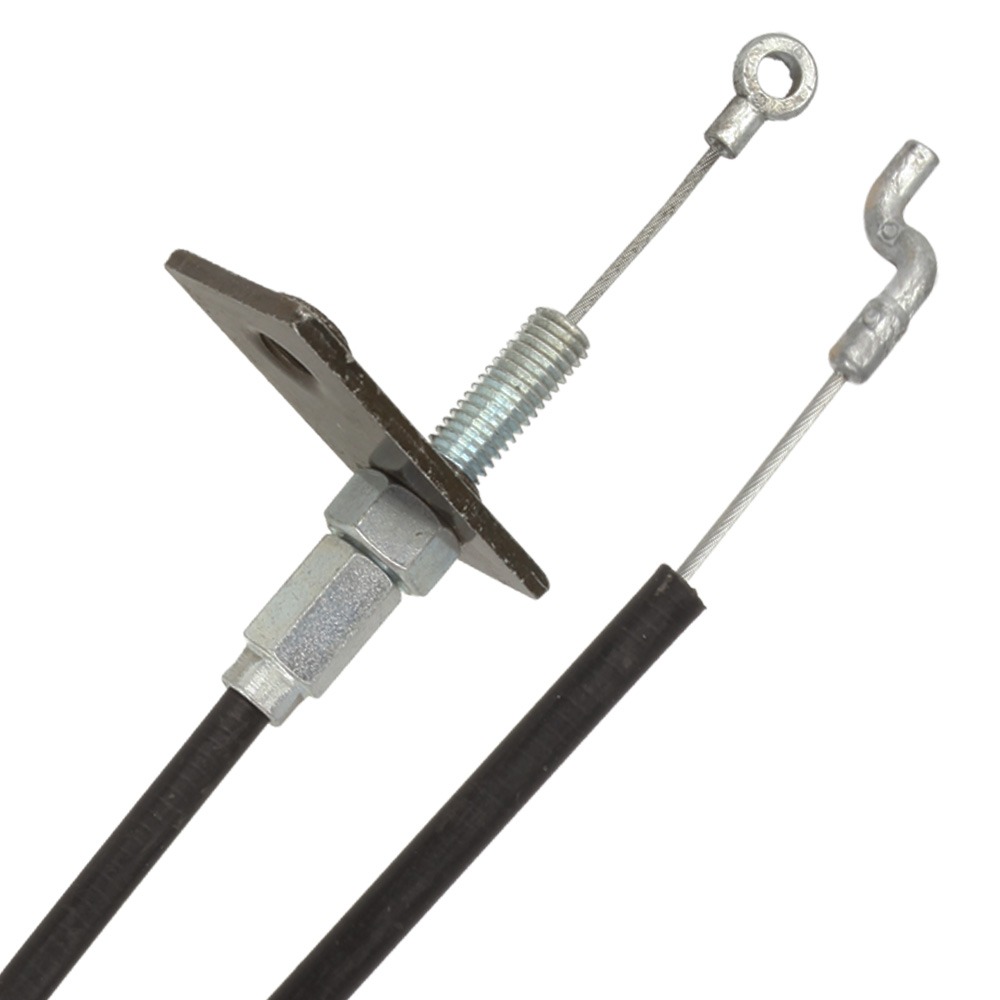

108	HASA2013880 Available to backorder	Cable - Ground Drive	£37.28 £31.07
109	HASA2053230 Available to backorder	Cable - Engine Stop	£32.30 £26.92
111	HASA280230 Available to backorder	Gearbox	£194.16 £161.80
112	HASA295930 Available to backorder	Spring - Tension	£6.84 £5.70
113	HASA280890 Available to backorder	Pin - Roll	£1.48 £1.23
114	HASA284840 Available to backorder	Pulley	£10.58 £8.82
121	HASA3013890 Available to backorder	Deflector - Rear	£83.22 £69.35
122	HA111-4615 Available to backorder	Setscrew	£6.34 £5.28
131	HA111-0083 Available to backorder	Decal-Safety	£2.36 £1.97
137	HASA2011620 Available to backorder	Fabric - Grassbag	£114.78 £95.65
144	HA111-4597 Available to backorder	Nut - Full Flanged	£1.74 £1.45
150	HA111-4618 Available to backorder	Spacer- Front Wheel	£5.78 £4.82
152	HASA1013500 Available to backorder	Ring - Shaft	£1.90 £1.58
153	HASA295940 Available to backorder	Spring	£10.68 £8.90
