Hayter R53S - 448F (400000000 - 499999999) - Housing - Rear Cover - Front Axle Assy

Description

Hayter R53S - 448F

Serial No: 400000000 - 499999999

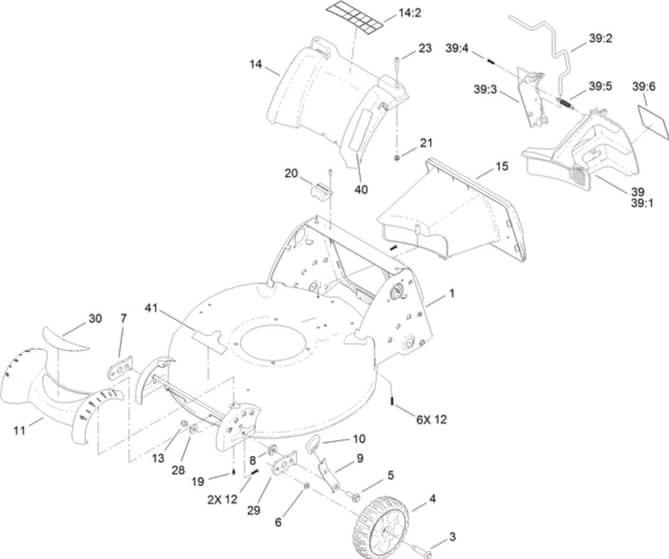

Housing - Rear Cover - Front Axle Assy - Parts Diagram

	Part No.	Details
4	HA117-5964 Available to backorder	7 Inch Wheel And Tire Asm	£28.28 £23.57
5	HA614672 Available to backorder	Screw-Shoulder. Hwh	£3.20 £2.67
7	HA107-3877 Available to backorder	Arm-Pivot. Rh	£14.83 £12.36
8	HA92-4890 Available to backorder	Washer	£10.80 £9.00
10	HA110-7125 In stock	Knob-Hoc	£5.12 £4.27
11	HA107-3926 Available to backorder	Cover-Front	£49.51 £41.26
13	HA3296-39 Available to backorder	Nut-Lock. Ni	£2.83 £2.36
14	HA115-3177 Available to backorder	Rear Cover Asm	£59.40 £49.50
15	HA110-9456 Available to backorder	Tunnel	£51.97 £43.31
19	HA108-7475 Available to backorder	Screw-Plastite	£6.31 £5.26
21	HA94-1610 Available to backorder	Nut-Clip	£1.09 £0.91
23	HA108-0965 Available to backorder	Screw-Pth	£1.60 £1.33
29	HA108-1044 Available to backorder	Arm-Pivot. Lh	£12.35 £10.29
30	HA111-2211 Available to backorder	Decal-Front	£22.22 £18.52
40	HA121-2370 Available to backorder	Decal-Handle Adjust	£9.14 £7.62
41	HA410087 In stock	Decal	£6.24 £5.20
391	HA110-9446 Available to backorder	Plug-Mulch. Lh	£28.45 £23.71
392	HA110-9448 Available to backorder	Latch-Plug. Mulch	£56.59 £47.16
394	HA108-7476 In stock	Screw-Plastite	£1.01 £0.84
395	HA110-9458 Available to backorder	Spring-Extension	£4.20 £3.50
