Hayter R53S - 448F (313000001 - 313999999) - Upper Handle Assy

Hayter R53S - 448F (313000001 - 313999999) - Upper Handle Assy
Hayter R53S - 448F (313000001 - 313999999) - Upper Handle Assy

Description

Hayter R53S - 448F

Serial No: 313000001 - 313999999

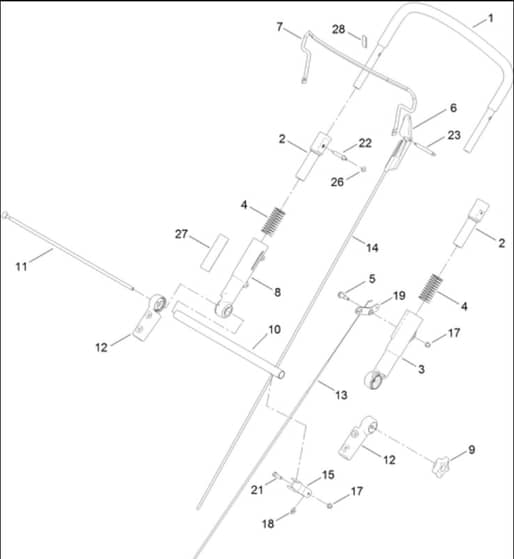

Upper Handle Assy - Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Upper Handle Asm HA108-0974
Upper Handle Asm
 Out of stock
£82.68 £68.90

  2 Sleeve-Inner HA112-8754
Sleeve-Inner
 Out of stock
£7.00 £5.83

  3 Sleeve-Outer. Lh HA112-1544
Sleeve-Outer. Lh
 Out of stock
£17.32 £14.43

  4 Spring-Compression HA107-3869
Spring-Compression
 Out of stock
£1.43 £1.19

  5 Bolt-Shoulder HA104-0858
Bolt-Shoulder
 Out of stock
£5.39 £4.49

  6 Stop-Pivot HA112-8764
Stop-Pivot
 Out of stock
£4.96 £4.13

  7 Bail-Brake HA110-1819-03
Bail-Brake
 Out of stock
£25.76 £21.47

  8 Sleeve-Outer. Rh HA112-1545
Sleeve-Outer. Rh
 Out of stock
£17.32 £14.43

  9 Knob-Handle HA117-5976
Knob-Handle
 Out of stock
£2.84 £2.37

  10 Tube-Cross HA107-3867-03
Tube-Cross
 Out of stock
£26.44 £22.03

  11 Rod-Threaded HA107-3871
Rod-Threaded
 Out of stock
£20.21 £16.84

  12 Mount-Handle. Lower HA107-3865
Mount-Handle. Lower
 Out of stock
£13.03 £10.86

  13 Cable-Traction HA107-3902
Cable-Traction
 Out of stock
£26.04 £21.70

  14 Cable-Brake HA107-3903
Cable-Brake
 Out of stock
£58.15 £48.46

  15 Clamp-Cable HA112-8801
Clamp-Cable
 Out of stock
£12.36 £10.30

  17 Nut-Lock. Ni HA3296-73
Nut-Lock. Ni
 Out of stock
£4.15 £3.46

  18 Washer-Flat HA3256-1
Washer-Flat
 Out of stock
£0.50 £0.42

  19 Lever-Traction HA107-3893
Lever-Traction
 Out of stock
£4.18 £3.48

  21 Screw-HH HA321-5
Screw-HH
 Out of stock
£0.50 £0.42

  22 Pin-Handle HA108-0959
Pin-Handle
 Out of stock
£6.86 £5.72

  23 Pin-Bail. Lh HA108-1008
Pin-Bail. Lh
 Out of stock
£7.30 £6.08

  26 Retainer-Push On HA108-9378
Retainer-Push On
 Out of stock
£1.55 £1.29

  28 Decal-Engine Stop HA117-4157
Decal-Engine Stop
 Out of stock
£192.00 £160.00


Description

Hayter R53S - 448F

Serial No: 313000001 - 313999999

Upper Handle Assy - Parts Diagram
