Hayter R53S - 448F (311000001 - 311999999) - Electrical Assy

Name: Hayter R53S - 448F (311000001 - 311999999) - Electrical Assy
SKU: R53S 448F06 electrical assy-group
Price: 0.54 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter R53S - 448F (311000001 - 311999999) - Electrical Assy

Description

Hayter R53S - 448F

Serial No: 311000001 - 311999999

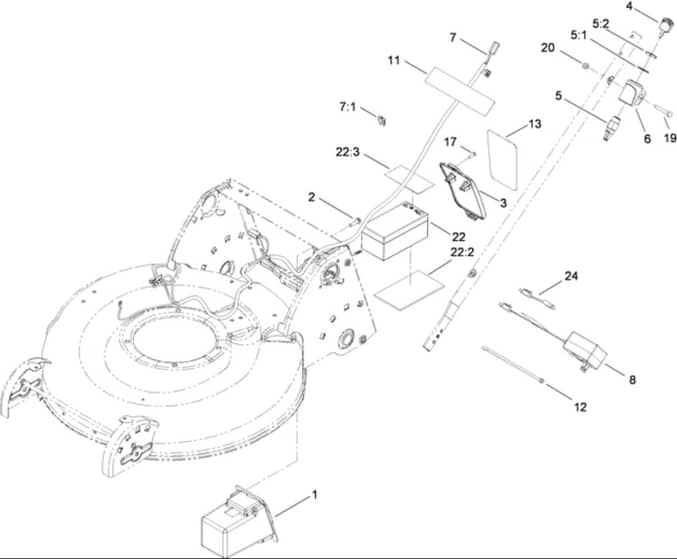

Electrical Assy - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA107-3932 Out of stock	Box-Battery	£20.21 £16.84
2	HA46-8091 Out of stock	Screw-Hwh	£3.36 £2.80
3	HA108-0981 Out of stock	Cover-Battery	£13.64 £11.37
4	HA700918 In stock	Key	£7.03 £5.86
5	HA46-5780 Out of stock	Starter Switch Asm	£35.09 £29.24
6	HA108-9760 Out of stock	Mount-Switch	£5.88 £4.90
7	HA119-2251 Out of stock	Harness-Wire	£91.20 £76.00
8	HA111-8160 In stock	Charger	£26.51 £22.09
11	HA104-7953 Out of stock	Decal-Warning	£9.11 £7.59
12	HA614249 Out of stock	Tie-Cable	£1.02 £0.85
13	HA108-0992 Out of stock	Decal-Instruction. Battery	£6.86 £5.72
17	HA32144-111 Out of stock	Screw-Pph	£1.07 £0.89
19	HA321-51 Out of stock	Screw-HH	£1.37 £1.14
20	HA3296-73 Out of stock	Nut-Lock. Ni	£4.15 £3.46
22	HA108-9358 Out of stock	Battery-Wet	£143.64 £119.70
24	HA107-3749 Out of stock	Adapter-Charger	£28.39 £23.66
51	HA3254-5 Out of stock	Washer-Lock	£0.65 £0.54
52	HA218-461 Out of stock	Nut-HH	£4.19 £3.49
71	HA99-6124 Out of stock	Fuse-40 Amp	£7.27 £6.06
222	HA108-0987 Out of stock	Foam-Battery	£2.11 £1.76
223	HA112-8763 Out of stock	Decal-Terminal. Battery	£3.72 £3.10
