Hayter R53S - 448E (448E290001000 - 448E290999999) - Engine - Blade Assy

Name: Hayter R53S - 448E (448E290001000 - 448E290999999) - Engine - Blade Assy
SKU: R53S 448E engine blade assy-group
Price: 1.84 GBP
Availability: InStock

Part No. R53S 448E engine blade assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter R53S - 448E (448E290001000 - 448E290999999) - Engine - Blade Assy

Description

Hayter R53S - 448E

Serial No: 448E290001000 - 448E290999999

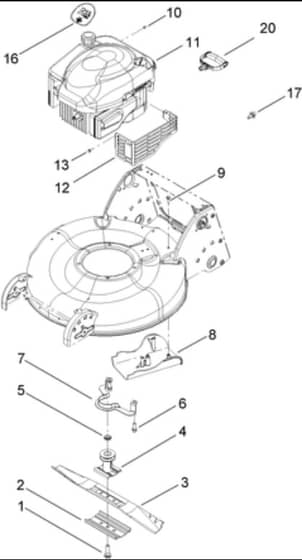

Engine - Blade Assy - Parts Diagram

	Part No.	Details
1	HA125-2466 In stock	Bolt-Blade	£3.83 £3.19
2	HA108-3766-03 Available to backorder	Support-Blade	£12.35 £10.29
3	HA133-8182-03 In stock	Blade-21 Inch	£28.33 £23.61
4	HA106-3987 In stock	Driver-Blade	Was £37.08 £30.90 Special Price £26.44 £22.03
5	HA106-3999 Available to backorder	Spacer-Driver	£4.08 £3.40
6	HA95-1726 In stock	Screw-Hwh Thd Form	£2.21 £1.84
7	HA105-3030-03 Available to backorder	Guide-Belt	£17.32 £14.43
8	HA110-1832 Available to backorder	Cover-Belt	£18.56 £15.47
9	HA46-8091 Available to backorder	Screw-Hwh	£4.44 £3.70
10	HA2210-316 Available to backorder	Stop-Rope	£11.14 £9.28
12	HA104-7577-03 Available to backorder	Shield-Muffler	£30.94 £25.78
13	HA32144-1 Available to backorder	Screw-Taptite	£3.95 £3.29
17	HA98-1394 Available to backorder	Screw-Hwh	£5.98 £4.98
20	HA117-4142 Available to backorder	Handle-Recoil	£24.74 £20.62
