Hayter R53S - 448E (448E290001000 - 448E290999999) - Carburetor Assy B&S 126T05-0239-B1

Name: Hayter R53S - 448E (448E290001000 - 448E290999999) - Carburetor Assy B&S 126T05-0239-B1
SKU: R53S 448E carburetor assy bs 126t05 0239 b1-group
Price: 3.65 GBP
Availability: InStock

Part No. R53S 448E carburetor assy bs 126t05 0239 b1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter R53S - 448E (448E290001000 - 448E290999999) - Carburetor Assy B&S 126T05-0239-B1

Description

Hayter R53S - 448E

Serial No: 448E290001000 - 448E290999999

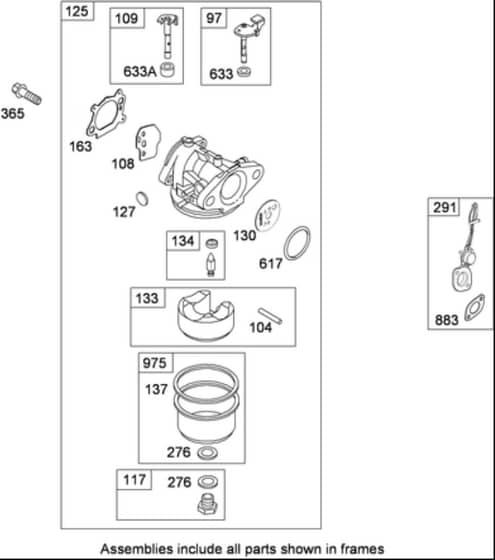

Carburetor Assy Briggs & Stratton 126T05-0239-B1 - Parts Diagram

	Part No.	Details
97	BP696565 Available to backorder	Shaft-Throttle	£12.43 £10.36
104	BP797622 Available to backorder	Pin-Hinge. Float	£5.11 £4.26
109	BP796193 Available to backorder	Shaft-Choke	£5.71 £4.76
127	BP694468 Available to backorder	Plug-Welch	£6.12 £5.10
130	BP696564 Available to backorder	Valve-Throttle	£6.25 £5.21
133	BP398187 Available to backorder	Float-Carburetor	£12.52 £10.43
134	BP398188 Available to backorder	Needle And Seat Kit	£8.80 £7.33
137	BP693981 In stock	Gasket-Bowl. Float (Used Before Date Code 08120200)	£6.19 £5.16
137	BP796610 Available to backorder	Gasket-Bowl. Float (Used After Date Code 08120100)	£6.48 £5.40
163	BP795629 In stock	Gasket-Cleaner. Air	£4.38 £3.65
276	BP271716 In stock	Washer-Sealing	£4.90 £4.08
291	BP593208 In stock	Thermostat	£26.90 £22.42
365	BP691688 Available to backorder	Screw (Carburetor)	£5.11 £4.26
617	BP270344S In stock	Seal-O Ring (Intake Manifold)	£5.42 £4.52
633	BP691321 Available to backorder	Seal-Shaft. Choke Throttle (Throttle Shaft)	£5.32 £4.43
633	BP693867 Available to backorder	Seal-Shaft. Choke Throttle (Choke Shaft)	£5.59 £4.66
883	BP691881 Available to backorder	Gasket-Exhaust	£12.43 £10.36
