Hayter R53S - 448E (448E290000001 - 448E290000999) - Rear Wheel - Transmission Assy

Name: Hayter R53S - 448E (448E290000001 - 448E290000999) - Rear Wheel - Transmission Assy
SKU: R53S 448E01 rear wheel transmission assy-group
Price: 0.30 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter R53S - 448E (448E290000001 - 448E290000999) - Rear Wheel - Transmission Assy

Description

Hayter R53S - 448E

Serial No: 448E290000001 - 448E290000999

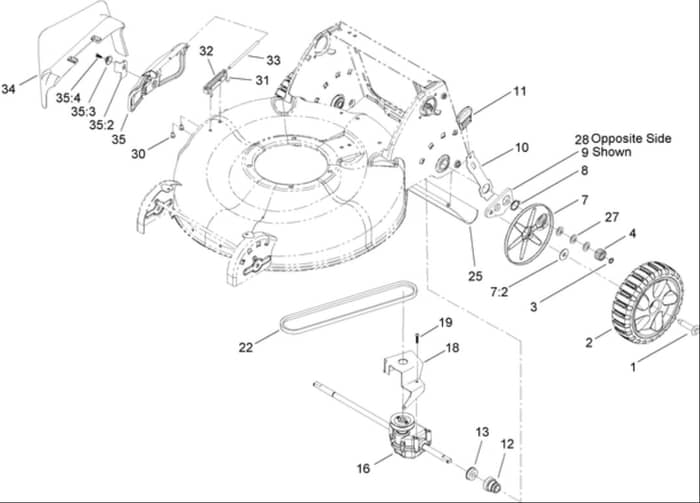

Rear Wheel - Transmission Assy - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA614650	Bolt-Shoulder	Out of stock	£4.93 £4.11
2	HA117-4083	Rear Wheel Asm	Out of stock	£66.48 £55.40
3	HA32151-61	Ring-Retaining	Out of stock	£2.98 £2.48
4	HA131-5399	Gear-Pinion. 15T	In stock	£5.94 £4.95
7	HA131-4513	Wheel Cover Asm	In stock	£11.14 £9.28
8	HA32151-36	Ring-Retaining	Out of stock	£5.21 £4.34
9	HA108-9344	Arm-Rear Pivot. Lh	Out of stock	£13.03 £10.86
10	HA110-9445	Arm-Spring. Rear	Out of stock	£12.65 £10.54
11	HA110-7125	Knob-Hoc	Out of stock	£4.68 £3.90
12	HA104-8698	Retainer-Bearing. Hoc	Out of stock	£12.36 £10.30
13	HA104-8699	Bearing-Ball	Out of stock	£5.06 £4.22
16	HA121-9182	Transmission Asm	Out of stock	£142.80 £119.00
18	HA114-7977-03	Bracket-Transmission	Out of stock	£14.27 £11.89
19	HA108-7476	Screw-Plastite	In stock	£0.97 £0.81
22	HA110-9429	V-Belt	In stock	£19.80 £16.50
25	HA120-7010	Shield-Trailing	Out of stock	£45.04 £37.53
27	HA36-4780	Washer-Plain	In stock	£7.28 £6.07
28	HA108-9343	Arm-Rear Pivot. Rh	Out of stock	£13.03 £10.86
30	HA137-4795	Screw-Hwh	Out of stock	£0.36 £0.30
31	HA99-5293	Spring-Torsion	Out of stock	£9.77 £8.14
32	HA112-6416	Bracket-Cover	Out of stock	£2.98 £2.48
33	HA136-8672	Rod-Cover	Out of stock	£3.49 £2.91
34	HA105-3028	Chute-Discharge. Side	In stock	£15.58 £12.98
35	HA106-8376	Discharge Door Asm	Out of stock	£17.90 £14.92
72	HA614426	Washer-Stepped	Out of stock	£3.71 £3.09
352	HA138-3221	Latch-Door	Out of stock	£2.28 £1.90
353	HA138-3242	Cap-Door	Out of stock	£1.82 £1.52
354	HA107-7461	Screw-Plastite	Out of stock	£0.76 £0.63
