Hayter R53S - 448E (448E290000001 - 448E290000999) - Ignition Assy B&S 126T05-0239-B1

Description

Hayter R53S - 448E

Serial No: 448E290000001 - 448E290000999

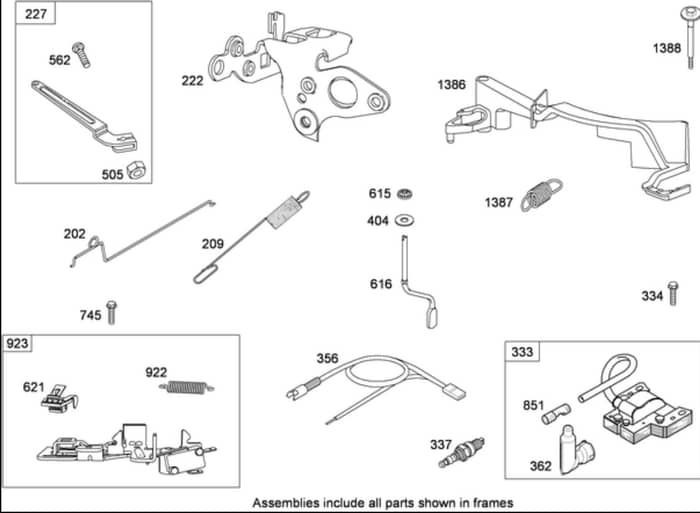

Ignition Assy Briggs & Stratton 126T05-0239-B1 - Parts Diagram

	Part No.	Details
202	BP691829 Available to backorder	Link-Governor. Mechanical	£6.79 £5.66
209	BP691292 Available to backorder	Spring-Governor (Black)	£9.08 £7.57
222	BP793754 Available to backorder	Bracket-Control	£9.48 £7.90
227	BP690783 Available to backorder	Lever-Control. Governor	£22.32 £18.60
334	BP691061 Available to backorder	Screw (Magneto Armature)	£4.84 £4.03
337	BP992300C In stock	Spark Plug	£3.22 £2.68
356	BP695283 Available to backorder	Wire-Stop	£10.63 £8.86
404	BP690272 In stock	Washer (Governor Crank)	Was £4.37 £3.64 Special Price £2.81 £2.34
505	BP691251 Available to backorder	Nut (Governor Control Lever)	£5.16 £4.30
562	BP691119 Available to backorder	Bolt (Governor Control Lever)	£5.44 £4.53
615	BP690340 Available to backorder	Retainer-Shaft. Governor	£5.44 £4.53
616	BP698801 Available to backorder	Crank-Governor	£10.37 £8.64
621	BP692310 Available to backorder	Switch-Stop	£7.74 £6.45
745	BP691648 Available to backorder	Screw (Brake)	£4.99 £4.16
851	BP692424 Available to backorder	Terminal–Spark Plug	£5.63 £4.69
922	BP692135 Available to backorder	Spring-Brake	£8.21 £6.84
1386	BP790848 Available to backorder	Vane-Air	£12.64 £10.53
1387	BP790849 In stock	Spring-Vane. Air	£7.58 £6.32
