Hayter R53A - 449F (449F315000001 - 449F315999999) - Upper Handle Assy

Description

Hayter R53A - 449F

Serial No: 449F315000001 - 449F315999999

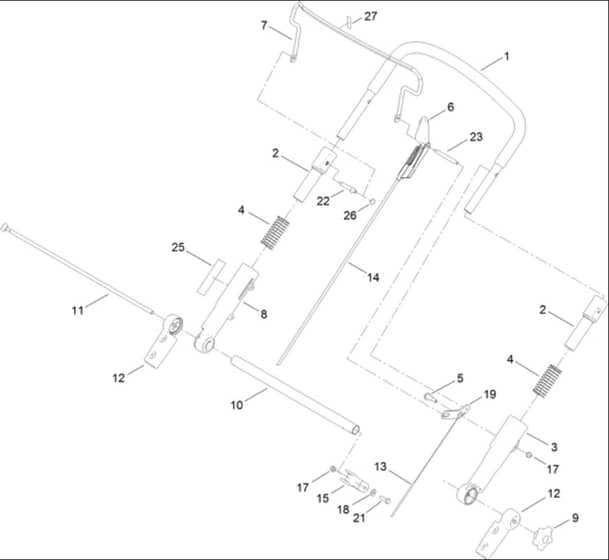

Upper Handle Assy - Parts Diagram

	Part No.	Details
1	HA108-0974 Available to backorder	Upper Handle Asm	£96.96 £80.80
2	HA112-8754 Available to backorder	Sleeve-Inner	£7.54 £6.28
3	HA112-1544 Available to backorder	Sleeve-Outer. Lh	£19.78 £16.48
4	HA107-3869 Available to backorder	Spring-Compression	£1.60 £1.33
5	HA104-0858 Available to backorder	Bolt-Shoulder	£5.81 £4.84
6	HA112-8764 Available to backorder	Stop-Pivot	£5.57 £4.64
7	HA110-1819-03 In stock	Bail-Brake	£30.94 £25.78
8	HA112-1545 Available to backorder	Sleeve-Outer. Rh	£19.78 £16.48
9	HA117-5976 In stock	Knob-Handle	£3.32 £2.77
10	HA107-3867-03 Available to backorder	Tube-Cross	£29.69 £24.74
11	HA107-3871 Available to backorder	Rod-Threaded	£23.51 £19.59
12	HA107-3865 Available to backorder	Mount-Handle. Lower	£14.83 £12.36
13	HA110-9465 Available to backorder	Cable-Traction	£65.76 £54.80
14	HA107-3903 Available to backorder	Cable-Brake	£59.40 £49.50
15	HA112-8801 Available to backorder	Clamp-Cable	£13.61 £11.34
17	HA3296-73 Available to backorder	Nut-Lock. Ni	£4.45 £3.71
18	HA3256-1 Available to backorder	Washer-Flat	£0.64 £0.53
19	HA107-3893 Available to backorder	Lever-Traction	£4.45 £3.71
21	HA321-5 Available to backorder	Screw-HH	£0.40 £0.33
22	HA108-0959 Available to backorder	Pin-Handle	£7.66 £6.38
23	HA108-1008 Available to backorder	Pin-Bail. Lh	£7.40 £6.17
26	HA108-9378 Available to backorder	Retainer-Push On	£1.60 £1.33
27	HA117-4157 Available to backorder	Decal-Engine Stop	£200.04 £166.70
