Hayter R53A - 449F (449F310000001 - 449F310999999) - Engine - Blade Assy

Description

Hayter R53A - 449F

Serial No: 449F310000001 - 449F310999999

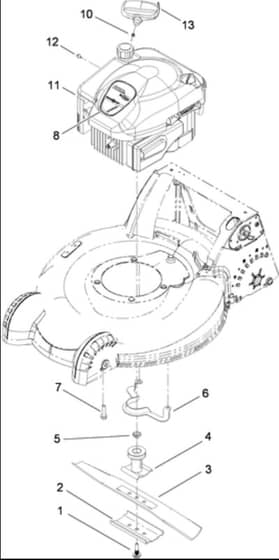

Engine - Blade Assy - Parts Diagram

	Part No.	Details
1	HA125-2466 In stock	Bolt-Blade	£3.83 £3.19
2	HA108-3766-03 Available to backorder	Support-Blade	£12.35 £10.29
3	HA133-8182-03 In stock	Blade-21 Inch	£28.33 £23.61
4	HA106-3987 In stock	Driver-Blade	Was £37.08 £30.90 Special Price £26.44 £22.03
5	HA106-3999 Available to backorder	Spacer-Driver	£4.08 £3.40
6	HA32144-102 Available to backorder	Screw-Hwh	£3.95 £3.29
7	HA108-8110-03 Available to backorder	Guide-Belt	£18.56 £15.47
8	HA111-3207 Available to backorder	Decal-Shroud	£6.35 £5.29
10	HA2210-316 Available to backorder	Stop-Rope	£11.14 £9.28
12	HA98-1394 Available to backorder	Screw-Hwh	£5.98 £4.98
13	HA117-4142 Available to backorder	Handle-Recoil	£24.74 £20.62
