Hayter R53A - 449F (402000000 - 999999999) - Rear Wheel - Transmission Assy

Name: Hayter R53A - 449F (402000000 - 999999999) - Rear Wheel - Transmission Assy
SKU: R53A 449F07 rear wheel transmission assy-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter R53A - 449F (402000000 - 999999999) - Rear Wheel - Transmission Assy

Description

Hayter R53A - 449F

Serial No: 402000000 - 999999999

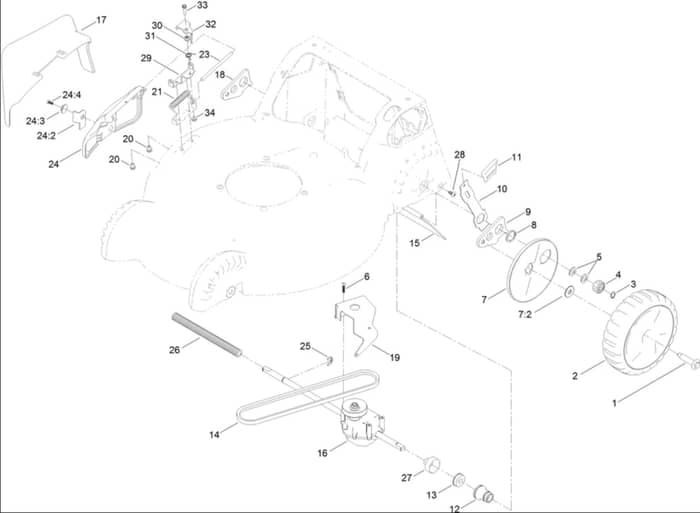

Rear Wheel - Transmission Assy - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA614650 Available to backorder	Bolt-Shoulder	£4.78 £3.98
2	HA119-7074 Available to backorder	8 Inch Wheel And Gear Asm	£61.12 £50.93
3	HA32151-61 Available to backorder	Ring-Retaining	£2.86 £2.38
4	HA131-5399 Available to backorder	Gear-Pinion. 15T	£5.74 £4.78
5	HA36-4780 In stock	Washer-Plain	£10.34 £8.62
6	HA108-7476 Available to backorder	Screw-Plastite	£0.94 £0.78
7	HA131-4513 In stock	Wheel Cover Asm	£11.94 £9.95
8	HA32151-36 Available to backorder	Ring-Retaining	£2.70 £2.25
9	HA108-9344 Available to backorder	Arm-Rear Pivot. Lh	£14.34 £11.95
10	HA110-9445 Available to backorder	Arm-Spring. Rear	£14.34 £11.95
11	HA110-7125 In stock	Knob-Hoc	£4.66 £3.88
12	HA110-9422 Available to backorder	Retainer-Bearing	£29.78 £24.82
13	HA104-8699 Available to backorder	Bearing-Ball	£5.26 £4.38
14	HA110-9429 In stock	V-Belt	£16.26 £13.55
15	HA120-7010 Available to backorder	Shield-Trailing	£46.64 £38.87
16	HA121-9186 Available to backorder	Transmission	£168.68 £140.57
17	HA105-3028 Available to backorder	Chute-Discharge. Side	£13.16 £10.97
18	HA108-9343 Available to backorder	Arm-Rear Pivot. Rh	£14.34 £11.95
19	HA114-7977-03 Available to backorder	Bracket-Transmission	£15.54 £12.95
20	HA137-4795 Available to backorder	Screw-Hwh	£0.34 £0.28
21	HA99-5293 Available to backorder	Spring-Torsion	£11.94 £9.95
23	HA136-8672 Available to backorder	Rod-Cover	£3.58 £2.98
24	HA138-3277 Available to backorder	Discharge Door Asm	£38.26 £31.88
25	HA65-2720 Available to backorder	Ring-Retaining. Clip	£1.20 £1.00
26	HA24-7922 Available to backorder	Conduit-Convoluted. Split	£11.94 £9.95
27	HA114-2755 Available to backorder	Cap-Bearing	£3.82 £3.18
28	HA117-1092 Available to backorder	Screw-Pth	£1.42 £1.18
29	HA138-3293 In stock	Bracket-Lockout	Was £5.04 £4.20 Special Price £2.39 £1.99
30	HA107-7463 Available to backorder	Spacer	£3.82 £3.18
31	HA107-7462 In stock	Spring-Torsion	Was £8.65 £7.21 Special Price £3.59 £2.99
32	HA161-4783 In stock	Lever-Lockout	Was £5.40 £4.50 Special Price £2.39 £1.99
33	HA106-9169 In stock	Screw-Hwh	Was £8.42 £7.02 Special Price £3.59 £2.99
34	HA32128-17 Available to backorder	Nut-Lock. Flange	£0.48 £0.40
72	HA614426 Available to backorder	Washer-Stepped	£3.86 £3.22
242	HA138-3221 Available to backorder	Latch-Door	£2.40 £2.00
243	HA138-3242 Available to backorder	Cap-Door	£4.30 £3.58
244	HA107-7461 Available to backorder	Screw-Plastite	£0.84 £0.70
