Hayter R53A - 449F (402000000 - 999999999) - Front Wheel Assy

Description

Hayter R53A - 449F

Serial No: 402000000 - 999999999

Front Wheel Assy - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA117-4111 Available to backorder	Housing Asm	£406.80 £339.00
2	HA110-9415-03 Available to backorder	Mount-Handle. Lh	£13.16 £10.97
3	HA614650 Available to backorder	Bolt-Shoulder	£4.78 £3.98
4	HA117-5951 Available to backorder	8 Inch Wheel And Tire Asm	£40.14 £33.45
5	HA614672 Available to backorder	Screw-Shoulder. Hwh	£3.10 £2.58
6	HA40-1940 Available to backorder	Washer	£2.50 £2.08
7	HA110-9421 Available to backorder	Arm-Pivot. Rh	£20.32 £16.93
8	HA121-2370 Available to backorder	Decal-Stow. Quick	£8.84 £7.37

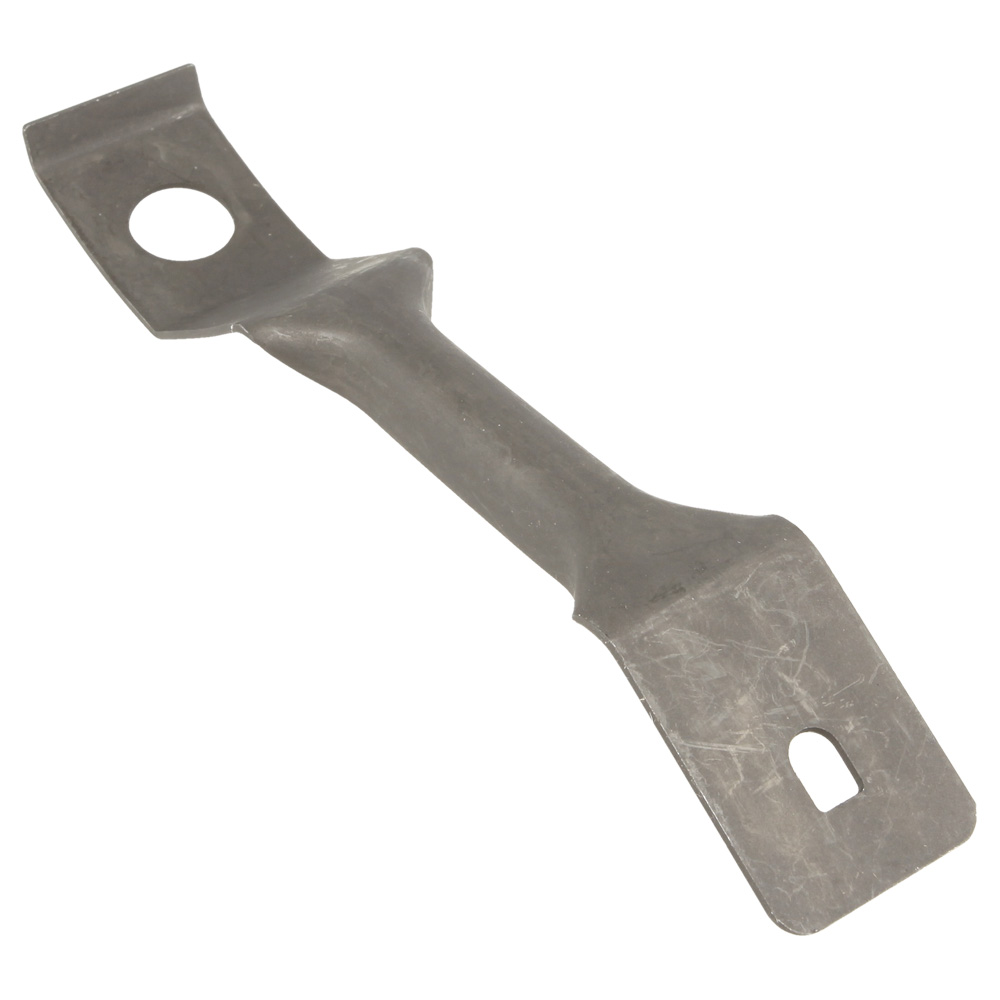

9	HA110-9434 Available to backorder	Arm-Spring. Front	£11.94 £9.95
10	HA110-7125 In stock	Knob-Hoc	£4.66 £3.88
12	HA112-8760 Available to backorder	Decal-Danger	£13.16 £10.97
13	HA3296-39 Available to backorder	Nut-Lock. Ni	£2.74 £2.28
14	HA115-3177 Available to backorder	Rear Cover Asm	£57.42 £47.85

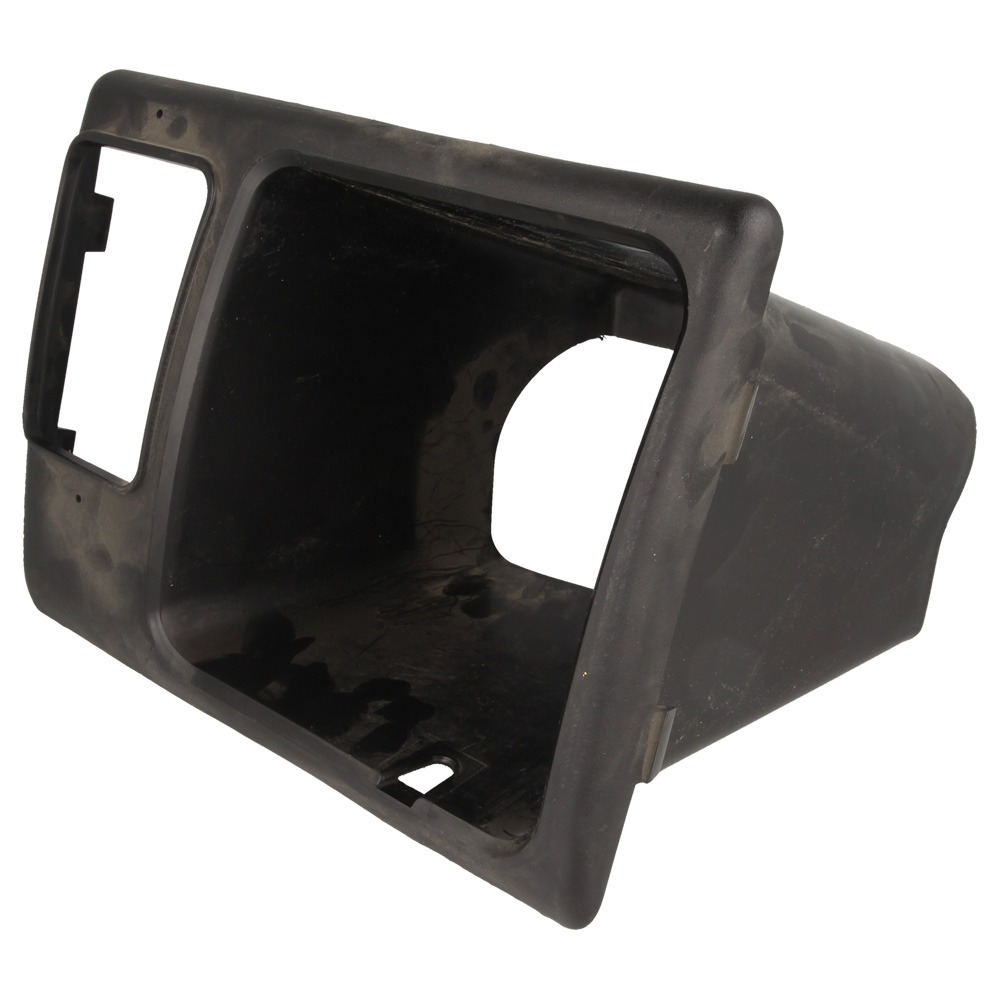

15	HA110-9456 Available to backorder	Tunnel	£50.24 £41.87
19	HA110-9416-03 Available to backorder	Mount-Handle. Rh	£13.16 £10.97
20	HA110-1787 Available to backorder	Module-Switch	£62.20 £51.83
21	HA94-1610 Available to backorder	Nut-Clip	£1.27 £1.06
23	HA108-0965 Available to backorder	Screw-Pth	£1.54 £1.28
24	HA110-9420 Available to backorder	Arm-Pivot. Lh	£20.32 £16.93
30	HA49-2040 In stock	Screw-Hwhtf	£2.38 £1.98
31	HA110-9468 Available to backorder	Mulch Plug Asm	£74.18 £61.82
32	HA110-9413 Available to backorder	Baffle-Rear	£38.26 £31.88
33	HA3256-14 Available to backorder	Washer-Flat	£0.72 £0.60
35	HA3256-22 Available to backorder	Washer-Flat	£0.72 £0.60
36	HA410087 In stock	Decal	£5.66 £4.72
37	HA114-3233 Available to backorder	Decal-Recycling	£58.70 £48.92
142	HA114-2820 Available to backorder	Decal-Warning	£8.12 £6.77
311	HA110-9446 Available to backorder	Plug-Mulch. Lh	£27.50 £22.92
312	HA110-9448 Available to backorder	Latch-Plug. Mulch	£53.08 £44.23
313	HA110-9447 Available to backorder	Plug-Mulch. Rh	£11.94 £9.95
314	HA108-7476 Available to backorder	Screw-Plastite	£0.94 £0.78
315	HA110-9458 Available to backorder	Spring-Extension	£4.06 £3.38
316	HA110-9457 Available to backorder	Decal-Plug. Mulch	£10.76 £8.97
