Hayter R53A - 449F (400000000 - 401999999) - Rear Wheel - Transmission Assy

Name: Hayter R53A - 449F (400000000 - 401999999) - Rear Wheel - Transmission Assy
SKU: R53A 449F08 rear wheel transmission assy-group
Price: 0.30 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter R53A - 449F (400000000 - 401999999) - Rear Wheel - Transmission Assy

Description

Hayter R53A - 449F

Serial No: 400000000 - 401999999

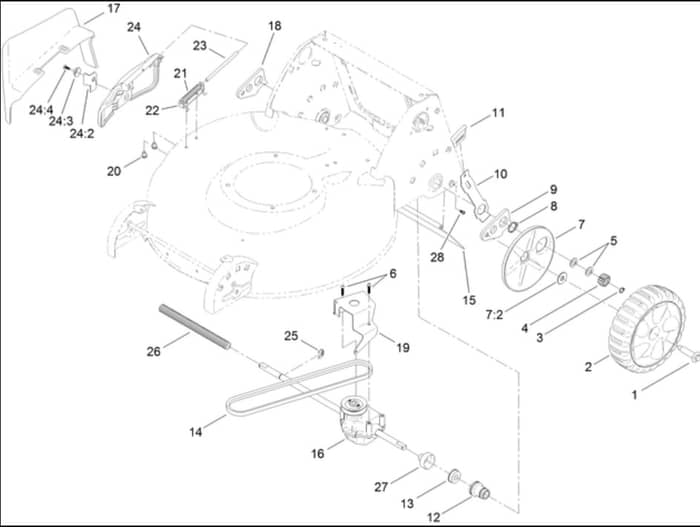

Rear Wheel - Transmission Assy - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA614650 Out of stock	Bolt-Shoulder	£4.93 £4.11
2	HA117-4083 Out of stock	Rear Wheel Asm	£66.48 £55.40
3	HA32151-61 Out of stock	Ring-Retaining	£2.98 £2.48
4	HA131-5399 In stock	Gear-Pinion. 15T	£5.94 £4.95
5	HA36-4780 In stock	Washer-Plain	£7.28 £6.07
6	HA108-7476 In stock	Screw-Plastite	£0.97 £0.81
7	HA131-4513 In stock	Wheel Cover Asm	£11.14 £9.28
8	HA32151-36 Out of stock	Ring-Retaining	£5.21 £4.34
9	HA108-9344 Out of stock	Arm-Rear Pivot. Lh	£13.03 £10.86
10	HA110-9445 Out of stock	Arm-Spring. Rear	£12.65 £10.54
11	HA110-7125 Out of stock	Knob-Hoc	£4.68 £3.90
12	HA110-9422 Out of stock	Retainer-Bearing	£18.18 £15.15
13	HA104-8699 Out of stock	Bearing-Ball	£5.06 £4.22
14	HA110-9429 In stock	V-Belt	£19.80 £16.50
15	HA120-7010 Out of stock	Shield-Trailing	£45.04 £37.53
16	HA121-9186 Out of stock	Transmission Asm	£143.52 £119.60
17	HA105-3028 In stock	Chute-Discharge. Side	£15.58 £12.98
18	HA108-9343 Out of stock	Arm-Rear Pivot. Rh	£13.03 £10.86
19	HA114-7977-03 Out of stock	Bracket-Transmission	£14.27 £11.89
20	HA137-4795 Out of stock	Screw-Hwh	£0.36 £0.30
21	HA99-5293 Out of stock	Spring-Torsion	£9.77 £8.14
22	HA112-6416 Out of stock	Bracket-Cover	£2.98 £2.48
23	HA136-8672 Out of stock	Rod-Cover	£3.49 £2.91
24	HA106-8376 Out of stock	Discharge Door Asm	£17.90 £14.92
25	HA65-2720 Out of stock	Ring-Retaining. Clip	£1.55 £1.29
26	HA24-7922 Out of stock	Conduit-Convoluted. Split	£10.21 £8.51
27	HA114-2755 Out of stock	Cap-Bearing	£3.46 £2.88
28	HA117-1092 Out of stock	Screw-Pth	£1.55 £1.29
72	HA614426 Out of stock	Washer-Stepped	£3.62 £3.02
242	HA138-3221 Out of stock	Latch-Door	£2.28 £1.90
243	HA138-3242 Out of stock	Cap-Door	£1.82 £1.52
244	HA107-7461 Out of stock	Screw-Plastite	£0.76 £0.63
