Hayter R53A - 449E (449E290000001 - 449E290000999) - Rewind Starter B&S 126T05-0239-B1

Name: Hayter R53A - 449E (449E290000001 - 449E290000999) - Rewind Starter B&S 126T05-0239-B1
SKU: R53A 449E01 rewind starter bs 126t05 0239 b1-group
Price: 3.54 GBP
Availability: InStock

Part No. R53A 449E01 rewind starter bs 126t05 0239 b1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter R53A - 449E (449E290000001 - 449E290000999) - Rewind Starter B&S 126T05-0239-B1

Description

Hayter R53A - 449E

Serial No: 449E290000001 - 449E290000999

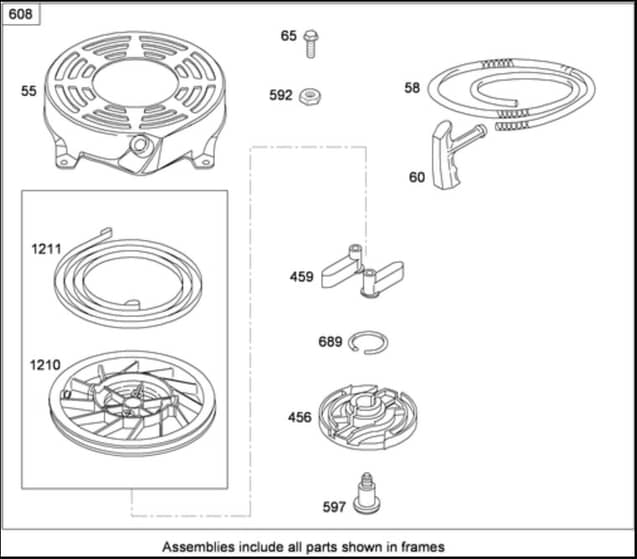

Rewind Starter Briggs & Stratton 126T05-0239-B1 - Parts Diagram

	Part No.	Details
55	BP691421 Available to backorder	Housing-Starter. Rewind	£46.32 £38.60
58	BP697316 In stock	Rope-Starter (Cut To Required Length)	£5.18 £4.32
60	BP281434S Available to backorder	Grip-Rope. Starter	£4.25 £3.54
65	BP690837 Available to backorder	Screw (Rewind Starter)	£4.99 £4.16
456	BP692299 In stock	Plate-Friction. Pawl	£5.18 £4.32
459	BP281505S In stock	Ratchet-Pawl	£4.66 £3.88
592	BP690800 Available to backorder	Nut (Rewind Starter)	£4.91 £4.09
597	BP691696 Available to backorder	Screw (Pawl Friction Plate)	£5.86 £4.88
689	BP691855 Available to backorder	Spring-Friction	£4.99 £4.16
1211	BP498144 In stock	Pulley And Spring Asm (Spring)	£21.52 £17.93
