Hayter R53A - 449E (449E290000001 - 449E290000999) - Lower Handle Assy

Name: Hayter R53A - 449E (449E290000001 - 449E290000999) - Lower Handle Assy
SKU: R53A 449E01 lower hle assy-group
Price: 0.81 GBP
Availability: InStock

Part No. R53A 449E01 lower hle assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter R53A - 449E (449E290000001 - 449E290000999) - Lower Handle Assy

Description

Hayter R53A - 449E

Serial No: 449E290000001 - 449E290000999

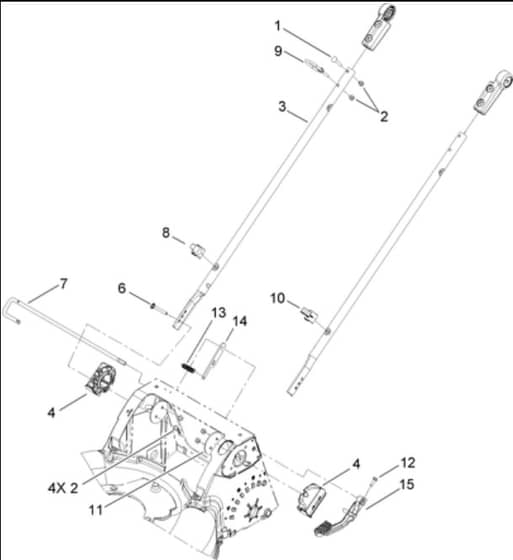

Lower Handle Assy - Parts Diagram

	Part No.	Details
1	HA108-0988 Available to backorder	Screw-Carr	£0.97 £0.81
2	HA3296-73 Available to backorder	Nut-Lock. Ni	£4.45 £3.71
3	HA107-3887-03 In stock	Tube-Lower	£38.45 £32.04
4	HA119-3847-03 Available to backorder	Mount-Handle. Lower	£19.78 £16.48
6	HA95-4453 Available to backorder	Screw	£3.83 £3.19
7	HA112-8755 Available to backorder	Rod-Release. Handle	£36.60 £30.50
8	HA117-4141 Available to backorder	Guide-Rope. Lower	£16.08 £13.40
9	HA107-3908 Available to backorder	Guide-Rope. Upper	£16.61 £13.84
10	HA114-7988 Available to backorder	Guide-Cable	£3.20 £2.67
11	HA107-3944-03 Available to backorder	Plate	£6.56 £5.47
12	HA49-2040 In stock	Screw-Hwhtf	£2.56 £2.13
13	HA112-1542 Available to backorder	Spring-Extension	£2.96 £2.47
14	HA112-1539 Available to backorder	Plate-Rod. Release	£7.91 £6.59
15	HA110-1823-03 Available to backorder	Lever-Release	£50.74 £42.28
