Hayter R53A - 449E (449E290000001 - 449E290000999) - Electrical Assy

Name: Hayter R53A - 449E (449E290000001 - 449E290000999) - Electrical Assy
SKU: R53A 449E01 electrical assy-group
Price: 0.78 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter R53A - 449E (449E290000001 - 449E290000999) - Electrical Assy

Description

Hayter R53A - 449E

Serial No: 449E290000001 - 449E290000999

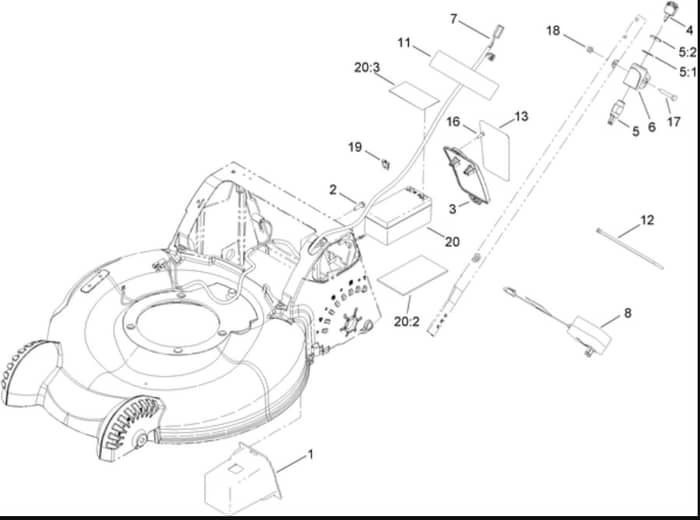

Electrical Assy - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA107-3932 Available to backorder	Box-Battery	£22.72 £18.93
2	HA46-8091 Available to backorder	Screw-Hwh	£4.44 £3.70
3	HA108-0981 Available to backorder	Cover-Battery	£15.54 £12.95
4	HA700918 In stock	Key	£7.04 £5.87
5	HA46-5780 Available to backorder	Starter Switch Asm	£33.48 £27.90
6	HA108-9760 Available to backorder	Mount-Switch	£6.34 £5.28
7	HA114-2815 In stock	Harness-Wire	Was £119.72 £99.77 Special Price £84.74 £70.62
8	HA111-8160 In stock	Charger	£25.62 £21.35
11	HA104-7953 Available to backorder	Decal-Warning	£10.76 £8.97
12	HA614249 Available to backorder	Tie-Cable	£1.13 £0.94
13	HA108-0992 Available to backorder	Decal-Instruction. Battery	£8.00 £6.67
16	HA32144-111 Available to backorder	Screw-Pph	£1.27 £1.06
17	HA321-51 Available to backorder	Screw-HH	£1.54 £1.28
18	HA3296-73 Available to backorder	Nut-Lock. Ni	£4.30 £3.58
19	HA99-6124 Available to backorder	Fuse-40 Amp	£7.22 £6.02
20	HA108-9358 Available to backorder	Battery-Wet	£139.50 £116.25
51	HA3254-5 Available to backorder	Washer-Lock	£0.94 £0.78
52	HA218-461 Available to backorder	Nut-HH	£3.00 £2.50
202	HA108-0987 Available to backorder	Foam-Battery	£2.26 £1.88
203	HA112-8763 Available to backorder	Decal-Terminal. Battery	£4.30 £3.58
