Hayter R48 - 447T (447T280T00001 - 447T280T99999) - Drive Assy

Description

Hayter R48 - 447T

Serial No: 447T280T00001 - 447T280T99999

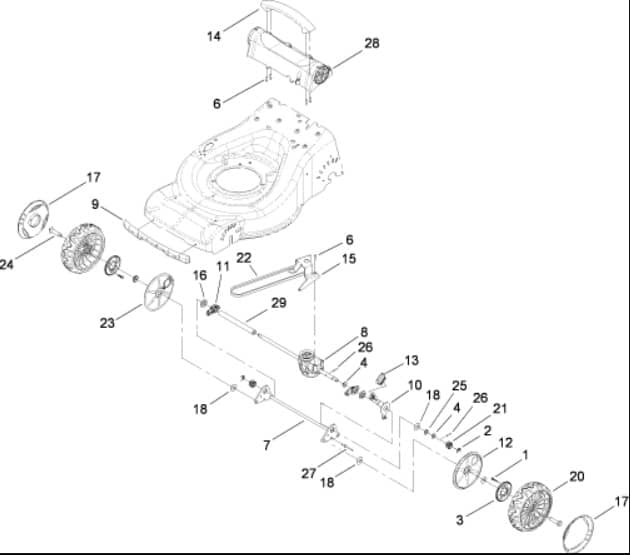

Drive Assy - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA27-6260 Available to backorder	Screw-Drive	£1.06 £0.88
2	HA65-2720 In stock	Ring-Retaining. Clip	£1.18 £0.98
3	HA105-3035 Available to backorder	Gear-Wheel. 52T	£30.56 £25.47
4	HA112-3911 Available to backorder	Washer-Thrust. Keyed	£24.12 £20.10
6	HA110-1271 Available to backorder	Screw-Torx. Pan Head	£0.70 £0.58
7	HA110-7016 Available to backorder	Pivot Bar Asm	£40.32 £33.60
8	HA110-7042 Available to backorder	Gearbox Asm	£163.68 £136.40
9	HA110-7067 Available to backorder	Bumper-Front	£4.18 £3.48
10	HA110-7073 Available to backorder	Lever-Hoc. Rear	£7.56 £6.30
11	HA110-7112 Available to backorder	Bushing-Camlock	£40.20 £33.50
12	HA110-7114 Available to backorder	Cover-Wheel	£6.42 £5.35
13	HA110-7125 In stock	Knob-Hoc	£4.66 £3.88
14	HA110-7155 Available to backorder	Handle-Rear	£7.50 £6.25
15	HA110-7158 Available to backorder	Bracket-Gear Case	£12.86 £10.72
16	HA110-7171 Available to backorder	Spacer-Flange	£1.54 £1.28
17	HA110-7174 Available to backorder	Cover-Wheel. Rear	£6.42 £5.35
18	HA110-7179 Available to backorder	Washer-Plain	£3.86 £3.22
20	HA110-7254 Available to backorder	Rear Wheel Asm	£41.82 £34.85
21	HA131-5399 In stock	Gear-Pinion. 15T	£5.74 £4.78
22	HA110-9429 In stock	V-Belt	£16.26 £13.55
23	HA614426 Available to backorder	Washer-Stepped	£4.00 £3.33
24	HA614650 Available to backorder	Bolt-Shoulder	£4.78 £3.98
25	HA110-7191 Available to backorder	Washer-Thrust	£2.88 £2.40
26	HA110-7192 Available to backorder	Pin-Roll	£0.70 £0.58
27	HA110-7193 Available to backorder	Rivet-Pop	£3.94 £3.28
28	HA110-7153 Available to backorder	Mount-Handle	£37.58 £31.32
29	HA115-3850 Available to backorder	Spacer	£5.64 £4.70
