Hayter R48 - 447E (290000001 - 290999999) - Crankcase Assy B&S 126T05-1840-B1

Name: Hayter R48 - 447E (290000001 - 290999999) - Crankcase Assy B&S 126T05-1840-B1
SKU: R48 447E crankcase assy bs 126t05 1840 b1-group
Price: 1.99 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter R48 - 447E (290000001 - 290999999) - Crankcase Assy B&S 126T05-1840-B1

Description

Hayter R48 - 447E

Serial No: 290000001 - 290999999

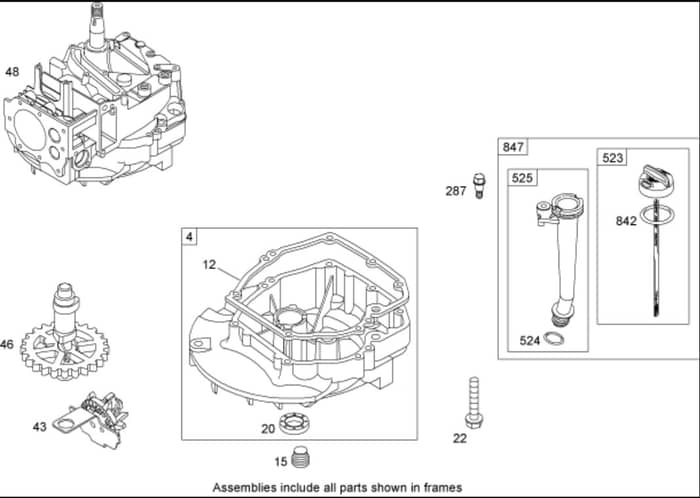

Crankcase Assy Briggs & Stratton 126T05-1840-B1 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
4	BP84007233 Available to backorder	Sump-Engine	£123.00 £102.50
12	BP692232 In stock	Gasket-Crankcase (.015 Std)	£9.68 £8.07
15	BP691680 In stock	Plug-Drain. Oil	Was £5.00 £4.17 Special Price £3.68 £3.07
20	BP399781S In stock	Seal-Oil	£7.70 £6.42
22	BP691092 Available to backorder	Screw (Engine Sump)	£4.30 £3.58
43	BP691997 Available to backorder	Slinger-Oil. Governor	£22.42 £18.68
46	BP691449 Available to backorder	Camshaft	£65.72 £54.77
48	BP792742 Available to backorder	Block-Short	£119.99 £99.99
287	BP690940 Available to backorder	Screw (Dipstick Tube)	£5.08 £4.23
523	BP499621 Available to backorder	Dipstick	£19.38 £16.15
524	BP692296 Available to backorder	Seal. O-Ring (Dipstick Tube)	£5.14 £4.28
525	BP495265 Available to backorder	Tube-Dipstick	£15.35 £12.79
842	BP691031 In stock	Seal. O-Ring (Dipstick Tube)	Was £5.28 £4.40 Special Price £2.39 £1.99
842	BP790832 Available to backorder	Seal. O-Ring (Dipstick Tube)	£4.94 £4.12
