Hayter R48 - 447E (290000001 - 290999999) - Carburetor Assy B&S 126T05-1840-B1

Name: Hayter R48 - 447E (290000001 - 290999999) - Carburetor Assy B&S 126T05-1840-B1
SKU: R48 447E carburetor assy bs 126t05 1840 b1-group
Price: 3.65 GBP
Availability: InStock

Part No. R48 447E carburetor assy bs 126t05 1840 b1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter R48 - 447E (290000001 - 290999999) - Carburetor Assy B&S 126T05-1840-B1

Description

Hayter R48 - 447E

Serial No: 290000001 - 290999999

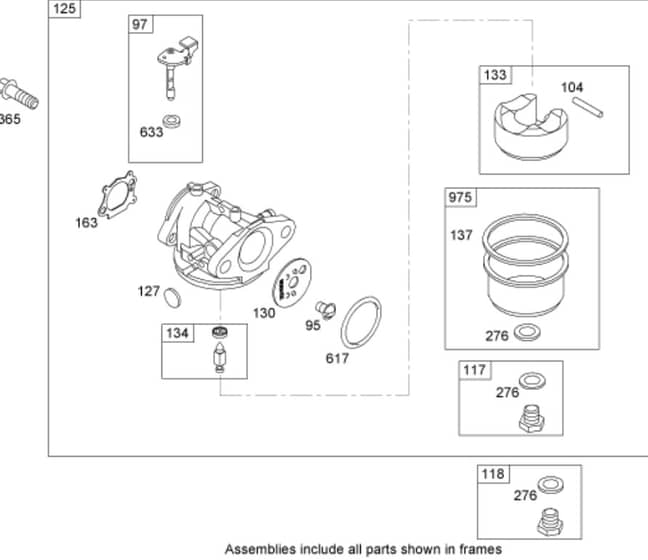

Carburetor Assy Briggs & Stratton 126T05-1840-B1 - Parts Diagram

	Part No.	Details
95	BP691636 Available to backorder	Screw (Throttle Valve)	£5.32 £4.43
97	BP696565 Available to backorder	Shaft-Throttle	£12.43 £10.36
104	BP797622 Available to backorder	Pin-Hinge. Float	£5.11 £4.26
118	BP494870 Available to backorder	Jet-Main (High Altitude)	£12.72 £10.60
125	BP799868 In stock	Carburetor	£44.72 £37.27
127	BP694468 Available to backorder	Plug-Welch	£6.12 £5.10
130	BP696564 Available to backorder	Valve-Throttle	£6.25 £5.21
133	BP398187 Available to backorder	Float-Carburetor	£12.52 £10.43
134	BP398188 Available to backorder	Needle And Seat Kit	£8.80 £7.33
137	BP693981 In stock	Gasket-Bowl. Float	£6.19 £5.16
163	BP795629 In stock	Gasket-Cleaner. Air	£4.38 £3.65
276	BP271716 In stock	Washer-Sealing	£4.90 £4.08
617	BP270344S In stock	Seal. O-Ring (Intake Manifold)	£5.42 £4.52
633	BP691321 Available to backorder	Seal-Shaft. Choke Throttle	£5.32 £4.43
