Hayter R48 - 447E (280000001 - 280999999) - Deck - Baffle Assy

Name: Hayter R48 - 447E (280000001 - 280999999) - Deck - Baffle Assy
SKU: R48 447E01 deck baffle assy-group
Price: 0.65 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter R48 - 447E (280000001 - 280999999) - Deck - Baffle Assy

Description

Hayter R48 - 447E

Serial No: 280000001 - 280999999

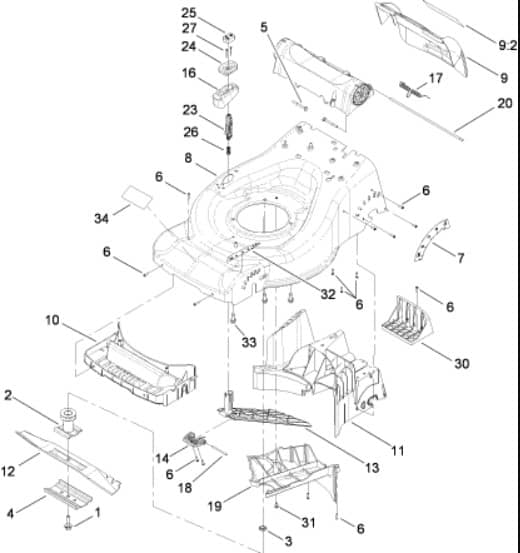

Deck - Baffle Assy - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA125-2466 Out of stock	Bolt-Blade	£3.76 £3.13
2	HA106-3987 In stock	Driver-Blade	£33.41 £27.84
3	HA106-3999 Out of stock	Spacer-Driver	£3.95 £3.29
4	HA108-3766-03 Out of stock	Support-Blade	£11.69 £9.74
5	HA110-1263 Out of stock	Screw-HH	£0.78 £0.65
6	HA110-1271 Out of stock	Screw-Torx. Pan Head	£0.78 £0.65
7	HA110-7058 Out of stock	Decal	£2.92 £2.43
10	HA110-7066 Out of stock	Baffle-Front	£25.90 £21.58
11	HA120-0157 Out of stock	Baffle-Rear	£43.73 £36.44
12	HA110-7080 In stock	Blade	£24.72 £20.60
13	HA110-7094 Out of stock	Door-Recycle	£10.19 £8.49
14	HA110-7095 Out of stock	Hinge-Door. Recycle	£2.92 £2.43
17	HA110-7107 Out of stock	Spring-Torsion	£4.26 £3.55
18	HA110-7108 Out of stock	Pin-Hinge	£4.98 £4.15
19	HA110-7109 Out of stock	Cover-Belt	£83.88 £69.90
20	HA110-7119 Out of stock	Bar-Pivot. Rear Door	£3.78 £3.15
23	HA110-7129 Out of stock	Latch-Recycle	£2.92 £2.43
24	HA110-7136 Out of stock	Housing-Knob	£2.00 £1.67
25	HA110-7138 Out of stock	Knob	£1.91 £1.59
26	HA110-7141 Out of stock	Spring-Compression	£0.78 £0.65
27	HA110-7143 Out of stock	Screw-Plastic	£1.10 £0.92
30	HA110-7154 Out of stock	Tray-Battery	£8.15 £6.79
31	HA110-7170 Out of stock	Screw-HH	£0.78 £0.65
32	HA110-7178 Out of stock	Decal	£4.13 £3.44
34	HA410087 In stock	Decal	£5.86 £4.88
