Hayter R48 - 447E (280000001 - 280999999) - Crankshaft Assy B&S 126T05-1840-B1

Name: Hayter R48 - 447E (280000001 - 280999999) - Crankshaft Assy B&S 126T05-1840-B1
SKU: R48 447E01 crankshaft assy bs 126t05 1840 b1-group
Price: 3 GBP
Availability: InStock

Part No. R48 447E01 crankshaft assy bs 126t05 1840 b1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter R48 - 447E (280000001 - 280999999) - Crankshaft Assy B&S 126T05-1840-B1

Description

Hayter R48 - 447E

Serial No: 280000001 - 280999999

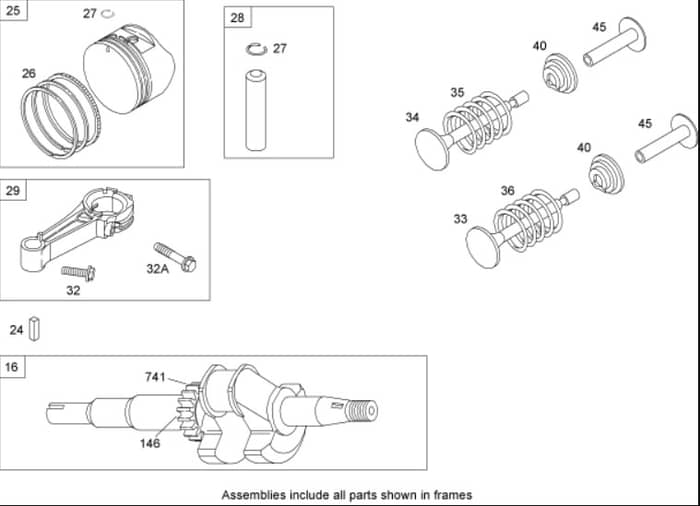

Crankshaft Assy Briggs & Stratton 126T05-1840-B1 - Parts Diagram

	Part No.	Details
16	BP590807 Available to backorder	Crankshaft	£109.92 £91.60
24	BP222698S In stock	Key-Flywheel	£3.60 £3.00
24	BP596006 Available to backorder	Key-Flywheel	£163.80 £136.50
25	BP799063 Available to backorder	Piston Asm (Std)	£86.76 £72.30
25	BP795430 Available to backorder	Piston Asm (.020 O S)	£117.12 £97.60
26	BP791098 Available to backorder	Ring Set (Std)	£61.44 £51.20
27	BP691866 Available to backorder	Lock-Pin. Piston	£4.99 £4.16
28	BP499423 Available to backorder	Pin-Piston (Std)	£9.35 £7.79
29	BP590406 Available to backorder	Rod-Connecting (Std)	£84.60 £70.50
32	BP695759 Available to backorder	Screw (Connecting Rod)	£5.26 £4.38
32	BP691664 Available to backorder	Screw (Connecting Rod)	£5.59 £4.66
34	BP590393 Available to backorder	Valve-Intake	£17.54 £14.62
36	BP691270 Available to backorder	Spring-Valve (Exhaust)	£5.44 £4.53
40	BP692194 In stock	Retainer-Valve	£7.32 £6.10
146	BP690979 Available to backorder	Key-Timing	£4.99 £4.16
741	BP691830 Available to backorder	Gear-Timing	£11.57 £9.64
