Hayter R48 - 446E (290000001 - 290999999) - Engine Assy

Hayter R48 - 446E (290000001 - 290999999) - Engine Assy

Description

Hayter R48 - 446E

Serial No: 290000001 - 290999999

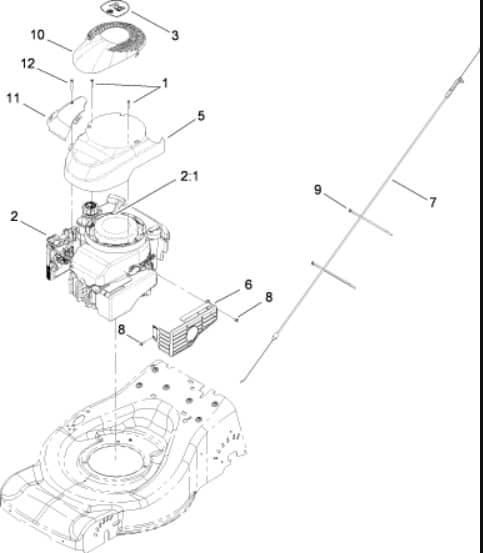

Engine Assy - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HA93-0231 Available to backorder	Screw-Pph		£0.97 £0.81
	8		HA32144-1 Available to backorder	Screw-Taptite		£3.95 £3.29
	9		HA614249 Available to backorder	Tie-Cable		£0.97 £0.81
	12		HA800-691142 Available to backorder	Screw-Pph		£7.51 £6.26
	21		HA2210-316 Available to backorder	Stop-Rope		£11.14 £9.28

Description

Hayter R48 - 446E

Serial No: 290000001 - 290999999

Engine Assy - Parts Diagram
