Hayter R48 - 446E (290000001 - 290999999) - Drive Assy

Name: Hayter R48 - 446E (290000001 - 290999999) - Drive Assy
SKU: R48 446E drive assy-group
Price: 0.6 GBP
Availability: InStock

Part No. R48 446E drive assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter R48 - 446E (290000001 - 290999999) - Drive Assy

Description

Hayter R48 - 446E

Serial No: 290000001 - 290999999

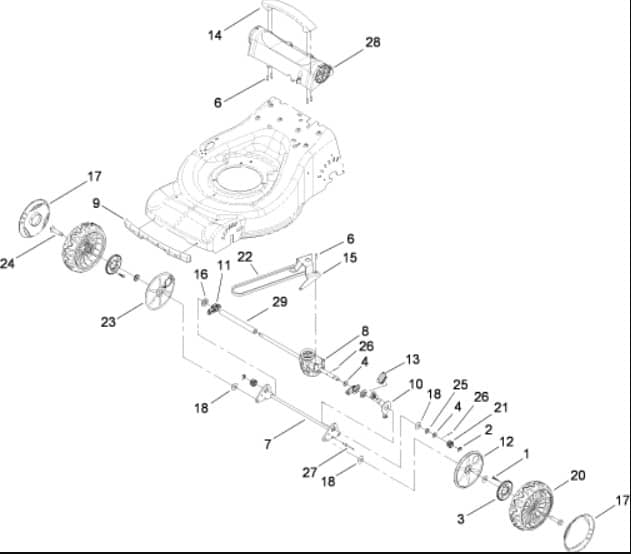

Drive Assy - Parts Diagram

	Part No.	Details
1	HA27-6260 Available to backorder	Screw-Drive	£1.09 £0.91
2	HA65-2720 In stock	Ring-Retaining. Clip	£1.22 £1.02
3	HA105-3035 Available to backorder	Gear-Wheel. 52T	£31.61 £26.34
4	HA112-3911 Available to backorder	Washer-Thrust. Keyed	£24.95 £20.79
6	HA110-1271 Available to backorder	Screw-Torx. Pan Head	£0.72 £0.60
7	HA110-7016 Available to backorder	Pivot Bar Asm	£41.71 £34.76
8	HA110-7042 Available to backorder	Gearbox Asm	£170.52 £142.10
9	HA110-7067 Available to backorder	Bumper-Front	£4.32 £3.60
10	HA110-7073 Available to backorder	Lever-Hoc. Rear	£7.82 £6.52
11	HA110-7112 Available to backorder	Bushing-Camlock	£41.59 £34.66
12	HA110-7114 Available to backorder	Cover-Wheel	£6.64 £5.53
13	HA110-7125 In stock	Knob-Hoc	£5.12 £4.27
14	HA110-7155 Available to backorder	Handle-Rear	£7.76 £6.47
15	HA110-7158 Available to backorder	Bracket-Gear Case	£13.31 £11.09
16	HA110-7171 Available to backorder	Spacer-Flange	£1.60 £1.33
17	HA110-7174 Available to backorder	Cover-Wheel. Rear	£6.64 £5.53
18	HA110-7179 Available to backorder	Washer-Plain	£4.00 £3.33
20	HA110-7254 Available to backorder	Rear Wheel Asm	£43.26 £36.05
21	HA131-5399 In stock	Gear-Pinion. 15T	£6.25 £5.21
22	HA110-9429 In stock	V-Belt	£17.44 £14.53
23	HA614426 Available to backorder	Washer-Stepped	£4.14 £3.45
24	HA161-8231 Available to backorder	Bolt-Shoulder	£1.97 £1.64
25	HA110-7191 Available to backorder	Washer-Thrust	£2.98 £2.48
26	HA110-7192 Available to backorder	Pin-Roll	£0.72 £0.60
27	HA110-7193 Available to backorder	Rivet-Pop	£4.08 £3.40
28	HA110-7153 Available to backorder	Mount-Handle	£38.88 £32.40
29	HA115-3850 Available to backorder	Spacer	£5.83 £4.86
