Hayter Osprey 53 - 346A (400000001 - 999999999) - Rear Wheel Assembly

Name: Hayter Osprey 53 - 346A (400000001 - 999999999) - Rear Wheel Assembly
SKU: 53cm lawn mower 346a rear wheel assembly-group
Price: 0.29 GBP
Availability: InStock

Part No. 53cm lawn mower 346a rear wheel assembly-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Osprey 53 - 346A (400000001 - 999999999) - Rear Wheel Assembly

Description

Hayter Osprey 53 - 346A

Serial No: 400000001 - 999999999

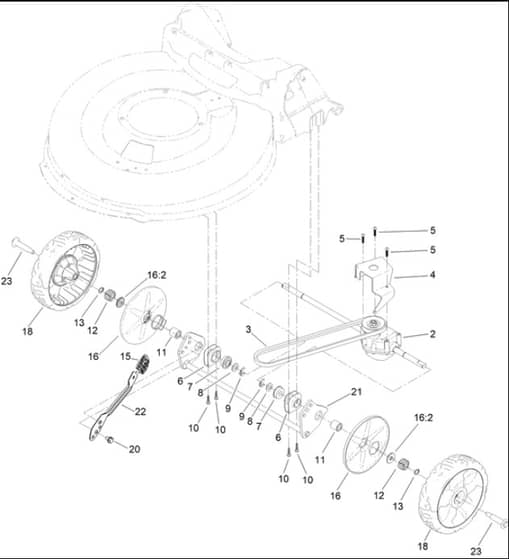

Rear Wheel Assembly - Parts Diagram

	Part No.	Details
2	HA130-6734 Available to backorder	Transmission	£117.24 £97.70
3	HA110-9429 In stock	V-Belt	£17.44 £14.53
4	HA114-7977-03 Available to backorder	Bracket-Transmission	£16.08 £13.40
5	HA108-7476 In stock	Screw-Plastite	£1.01 £0.84
6	HA138-3234 Available to backorder	Retainer-Bearing	£3.83 £3.19
7	HA104-8699 In stock	Bearing-Ball	£5.77 £4.81
8	HA36-4780 In stock	Washer-Plain	£11.70 £9.75
9	HA65-2720 In stock	Ring-Retaining. Clip	£1.22 £1.02
10	HA139-1690 Available to backorder	Screw-Plastic. Hwh	£0.35 £0.29
11	HA127-6896 Available to backorder	Bushing-Sleeve	£3.83 £3.19
12	HA131-5399 In stock	Gear-Pinion. 15T	£6.25 £5.21
13	HA32151-61 Available to backorder	Ring-Retaining	£3.07 £2.56
15	HA105-3042 Available to backorder	Knob-Lever. Hoc	£4.94 £4.12
16	HA131-4513 In stock	Wheel Cover Asm	£12.79 £10.66
18	HA130-6714 Available to backorder	Wheel Gear Asm (8In)	£54.91 £45.76
20	HA139-1710 Available to backorder	Screw-Thd Cut. Hwh	£2.34 £1.95
21	HA134-1669-03 Available to backorder	Axle Rear	£53.71 £44.76
22	HA134-1757 Available to backorder	Arm Spring	£5.29 £4.41
23	HA161-8231 Available to backorder	Bolt-Shoulder	£1.97 £1.64
162	HA614426 Available to backorder	Washer-Stepped	£4.14 £3.45
