Hayter Osprey 53 - 346A (400000001 - 999999999) - Handlebar - Controls

Description

Hayter Osprey 53 - 346A

Serial No: 400000001 - 999999999

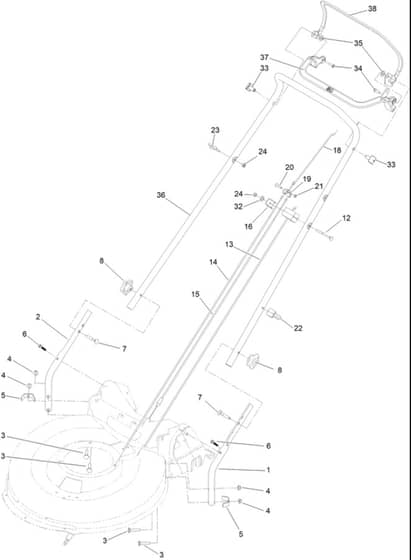

Handlebar - Controls - Parts Diagram

	Part No.	Details
1	HA136-5923-05 Available to backorder	Handle-Lower. Lh	£55.68 £46.40
2	HA136-5924-05 Available to backorder	Handle-Lower. Rh	£27.20 £22.67
3	HA139-1707 Available to backorder	Screw-Carr	£0.85 £0.71
4	HA138-8401 Available to backorder	Nut-Hf	£0.62 £0.52
5	HA127-0699 Available to backorder	Bracket-Chute	£2.21 £1.84
6	HA130-6659 Available to backorder	Screw-Flange. Serrated	£1.60 £1.33
7	HA137-3107 In stock	Screw-Handle	£2.09 £1.74
8	HA117-5976 In stock	Knob-Handle	£3.32 £2.77
12	HA140-3985 Available to backorder	Screw-Handle	£1.22 £1.02
13	HA134-4291 Available to backorder	Cable Brake	£45.79 £38.16

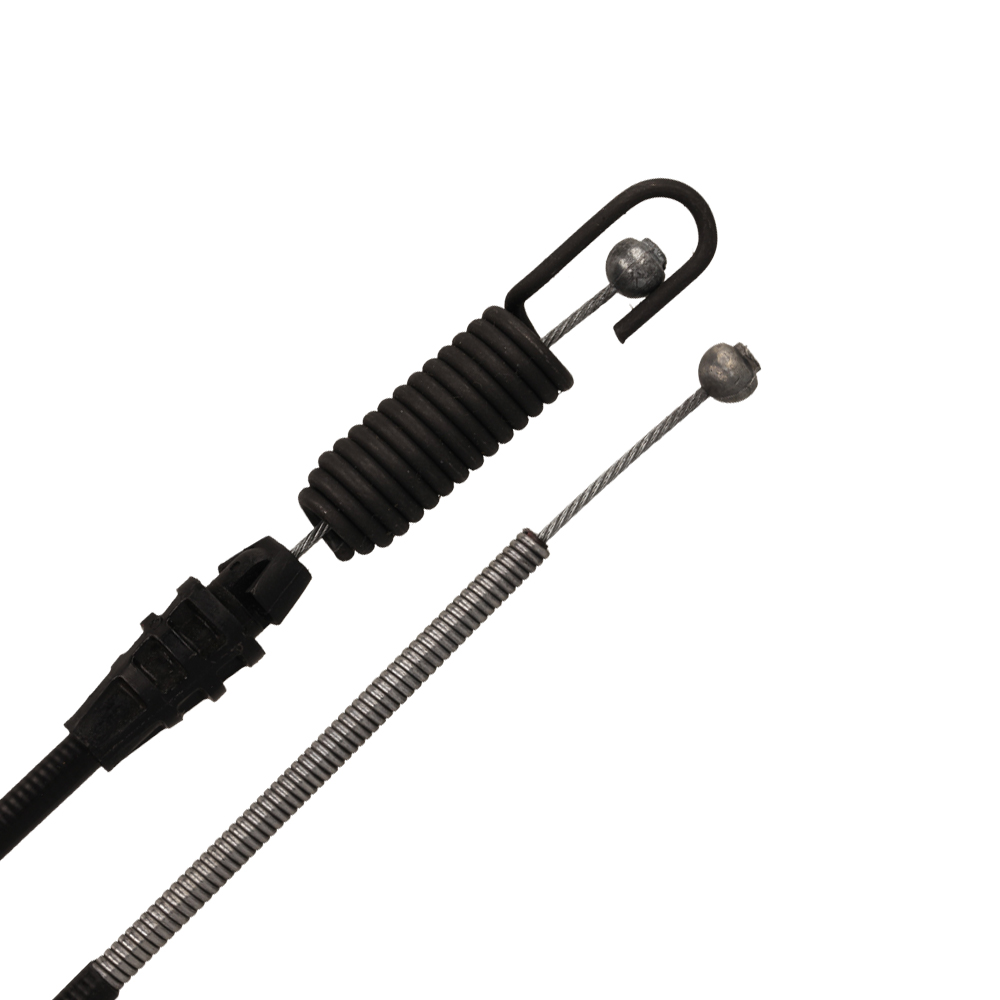

14	HA134-1917 Available to backorder	Cable Traction	£16.12 £13.43

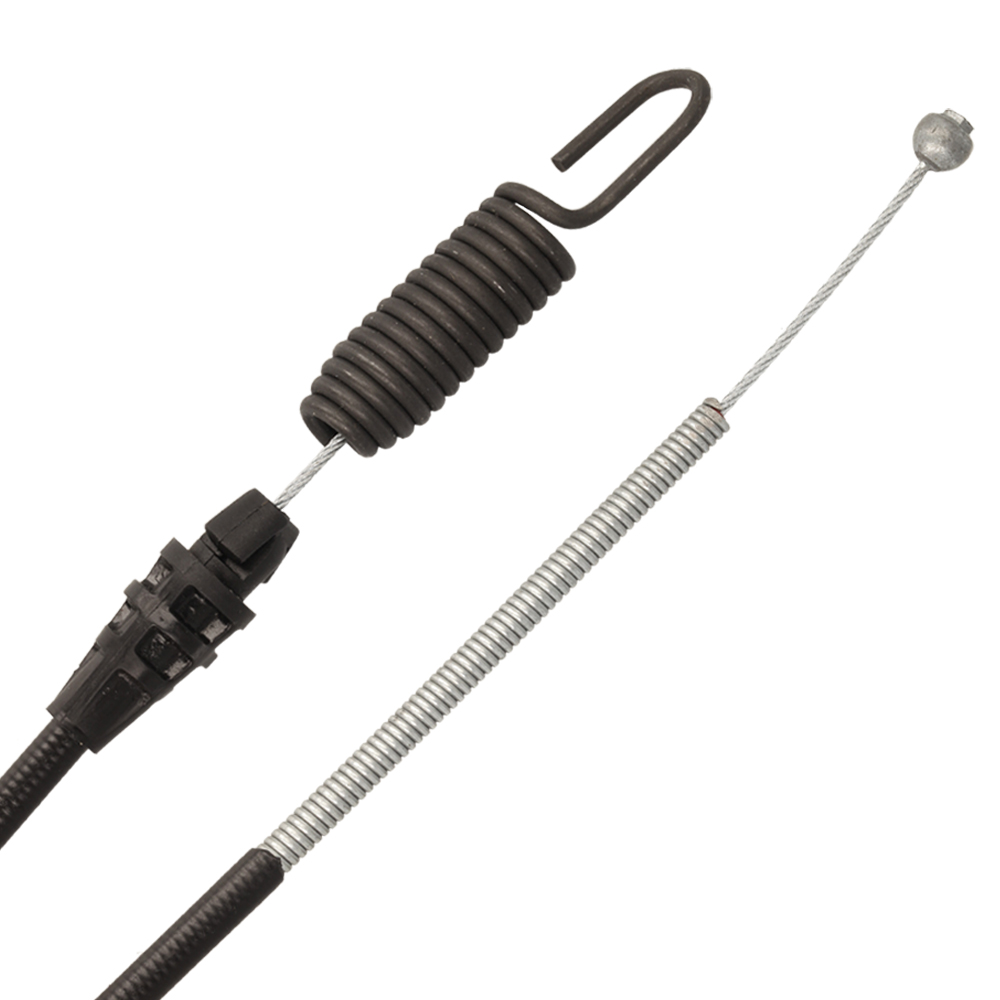

15	HA134-1916 Available to backorder	Cable Traction	£14.75 £12.29
16	HA136-5922 Available to backorder	Clamp-Cable	£4.32 £3.60

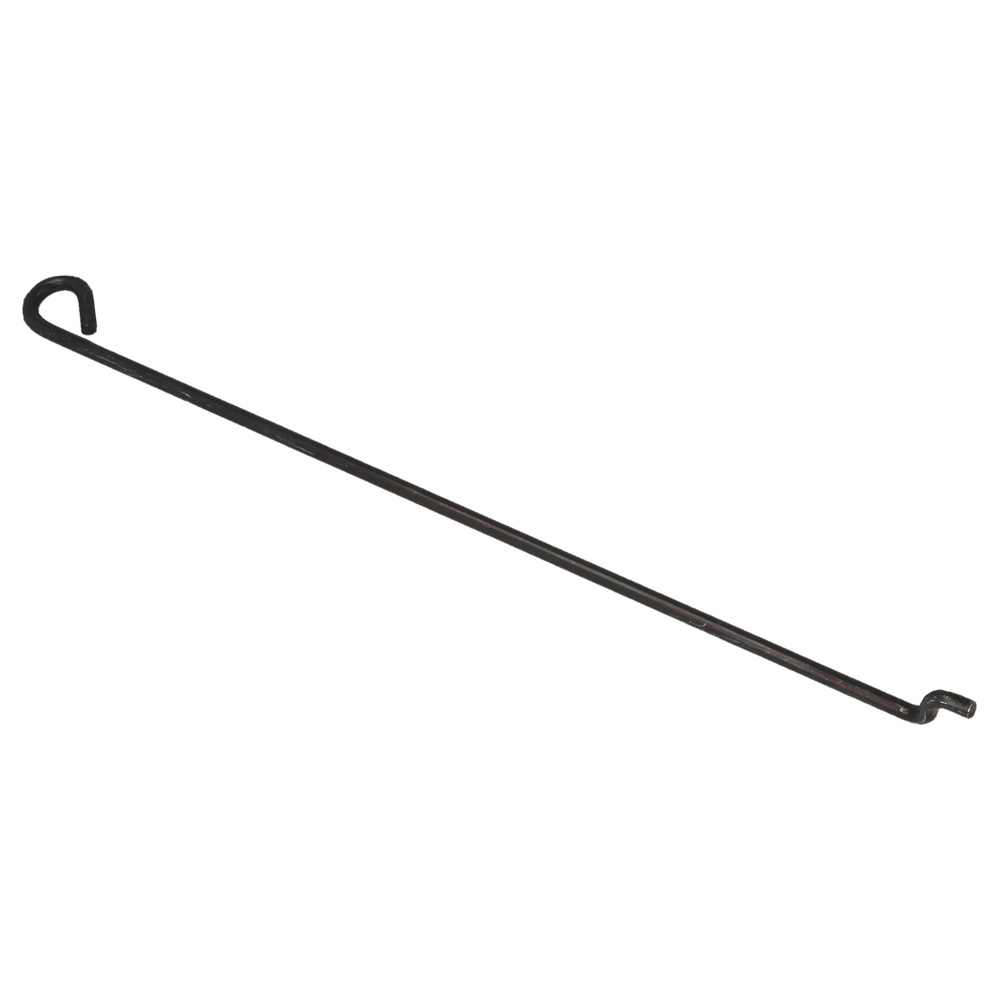

18	HA138-5321 Available to backorder	Linkage-Equalizer	£7.28 £6.07

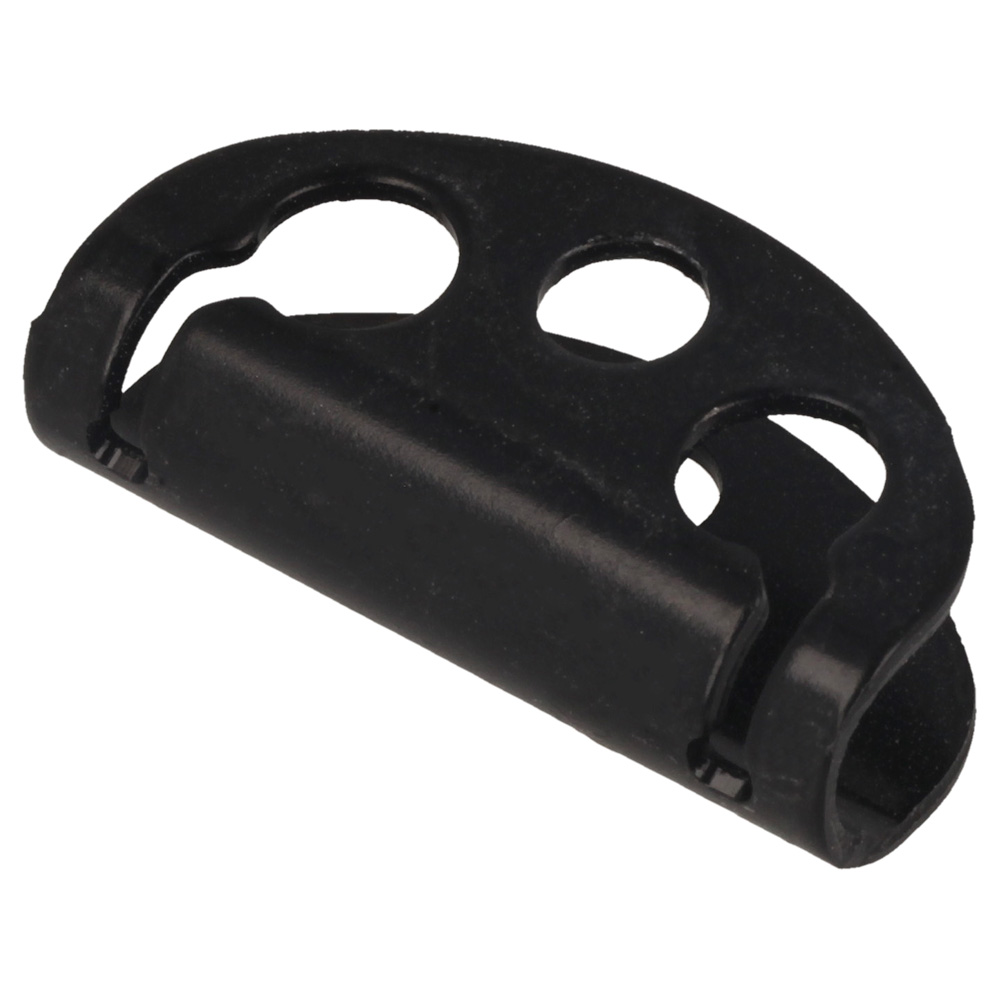

19	HA130-6719 Available to backorder	Yoke-Cable	£4.82 £4.02
20	HA139-1709 Available to backorder	Screw-Shoulder	£2.46 £2.05
21	HA137-3085 Available to backorder	Nut-Hex	£0.48 £0.40
22	HA114-7988 Available to backorder	Guide-Cable	£3.20 £2.67
23	HA86-9671 In stock	Guide-Rope	Was £4.94 £4.12 Special Price £3.48 £2.90
24	HA137-3094 Available to backorder	Nut-Hex	£0.48 £0.40
32	HA139-1699 Available to backorder	Washer-Flat	£1.49 £1.24
33	HA340182 In stock	Pin-Pivot	£1.84 £1.53
34	HA09687 In stock	Screw	£1.84 £1.53
36	HA134-4276-03 In stock	Upper Handlebar	£25.25 £21.04
37	HA111-9662 In stock	Opc Lever - Engine	£20.12 £16.77
38	HA111-1921-03 In stock	Lever-Clutch	£46.68 £38.90
