Hayter Osprey 53 - 345A (400000001 - 999999999) - Rear Wheel Assembly

Name: Hayter Osprey 53 - 345A (400000001 - 999999999) - Rear Wheel Assembly
SKU: 53cm lawn mower 345a rear wheel assembly-group
Price: 0.6 GBP
Availability: InStock

Part No. 53cm lawn mower 345a rear wheel assembly-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Osprey 53 - 345A (400000001 - 999999999) - Rear Wheel Assembly

Description

Hayter Osprey 53 - 345A

Serial No: 400000001 - 999999999

Rear Wheel Assembly - Parts Diagram

	Part No.	Details

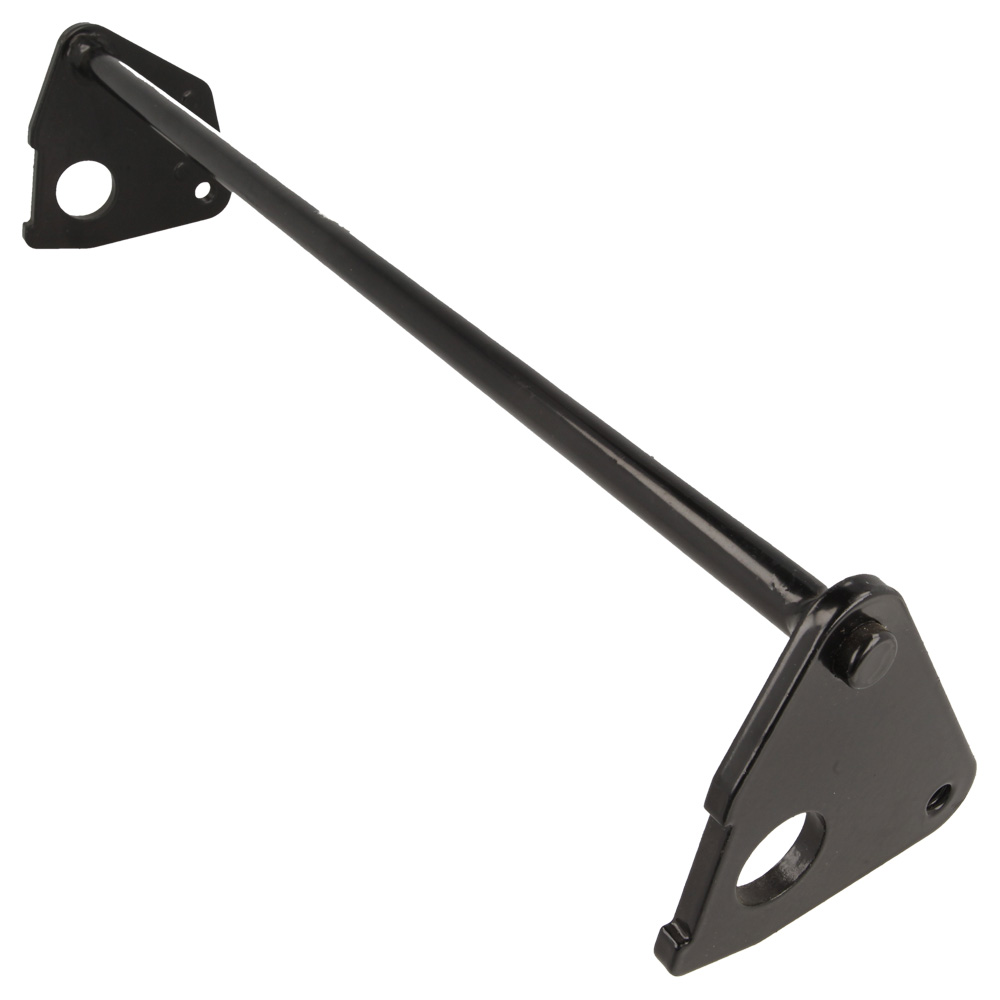

1	HA134-1669-03 Available to backorder	Axle Rear	£53.71 £44.76
2	HA138-3234 Available to backorder	Retainer-Bearing	£3.83 £3.19
3	HA104-8699 In stock	Bearing-Ball	£5.77 £4.81
4	HA127-6831 Available to backorder	Screw-Hwh	£0.72 £0.60
5	HA127-6896 Available to backorder	Bushing-Sleeve	£3.83 £3.19
6	HA131-0881 Available to backorder	Transmission	£128.04 £106.70
7	HA114-7977-03 Available to backorder	Bracket-Transmission	£16.08 £13.40
8	HA108-7476 In stock	Screw-Plastite	£1.01 £0.84
9	HA131-5399 In stock	Gear-Pinion. 15T	£6.25 £5.21
10	HA32151-61 Available to backorder	Ring-Retaining	£3.07 £2.56
11	HA131-4513 In stock	Wheel Cover Asm	£12.79 £10.66
12	HA161-8231 Available to backorder	Bolt-Shoulder	£1.97 £1.64
13	HA130-6714 Available to backorder	Wheel Gear Asm (8In)	£54.91 £45.76
14	HA134-1757 Available to backorder	Arm Spring	£5.29 £4.41
15	HA105-3042 Available to backorder	Knob-Lever. Hoc	£4.94 £4.12
16	HA603773 Available to backorder	Nut-Hex	£2.71 £2.26
17	HA36-4780 In stock	Washer-Plain	£11.70 £9.75

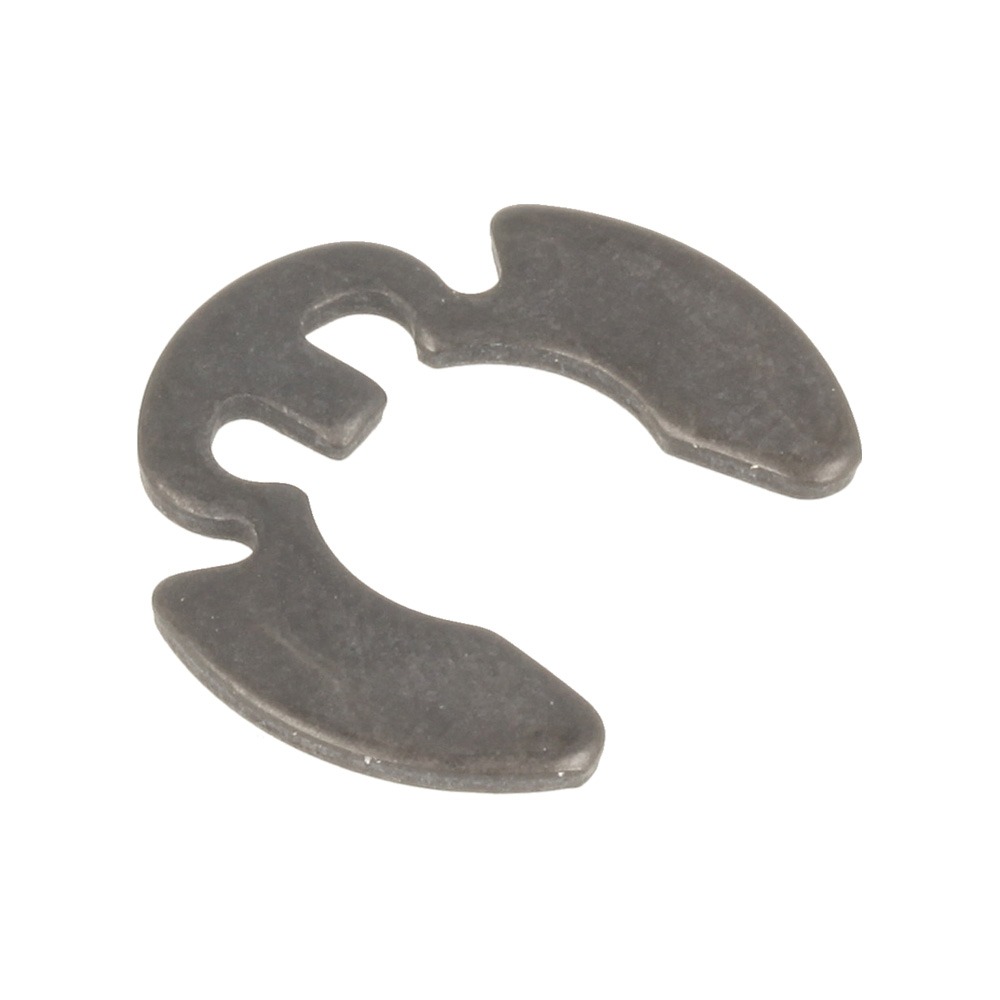

18	HA65-2720 In stock	Ring-Retaining. Clip	£1.22 £1.02
19	HA139-1710 Available to backorder	Screw-Thd Cut. Hwh	£2.34 £1.95
112	HA614426 Available to backorder	Washer-Stepped	£4.14 £3.45
