Hayter Osprey 46 - 611A (400000000 - 999999999) - Engine - Blade Assembly

Description

Hayter Osprey 46 - 611A

Serial No: 400000000 - 999999999

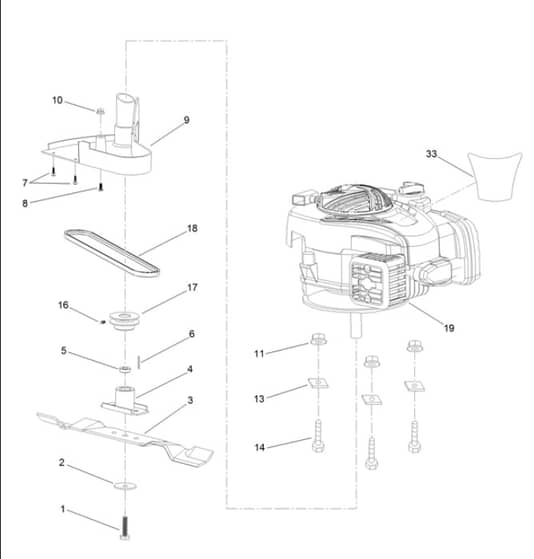

Engine - Blade Assembly - Parts Diagram

	Part No.	Details
1	HA134-0150 Available to backorder	Bolt-Blade	£3.25 £2.71
2	HA134-0151 Available to backorder	Washer-Dished	£3.52 £2.93
3	HA134-0073 In stock	Blade-Mulch	£38.66 £32.22
4	HA134-0152 In stock	Support-Blade	£16.82 £14.02
5	HA134-0153 Available to backorder	Sheath-Blade	£0.71 £0.59
6	HA134-0154 Available to backorder	Key-Flat	£1.54 £1.28
7	HA134-0155 Available to backorder	Screw-Self Driving	£1.26 £1.05
8	HA134-0156 Available to backorder	Screw-Tooth	£1.22 £1.02
9	HA134-0157 Available to backorder	Cover-Pulley. Belt	£7.60 £6.33
10	HA134-0117 Available to backorder	Nut-Lock. Flange	£1.22 £1.02
11	HA134-0118 Available to backorder	Nut-Lock. Flange	£1.16 £0.97
13	HA134-0158 Available to backorder	Washer-Square	£1.03 £0.86
14	HA134-2010 Available to backorder	Bolt-Blade	£1.14 £0.95
16	HA134-0161 Available to backorder	Screw-Grub	£1.22 £1.02
17	HA134-0162 Available to backorder	Pulley-Drive	£13.74 £11.45
18	HA134-0163 In stock	Belt-Triangle	£12.85 £10.71
33	HA111-9993 Available to backorder	Decal-Engine	£2.38 £1.98
