Hayter Osprey 46 - 611A (318000001 - 318999999) - Suspension - Traction - Hoc Assembly

Description

Hayter Osprey 46 - 611A

Serial No: 318000001 - 318999999

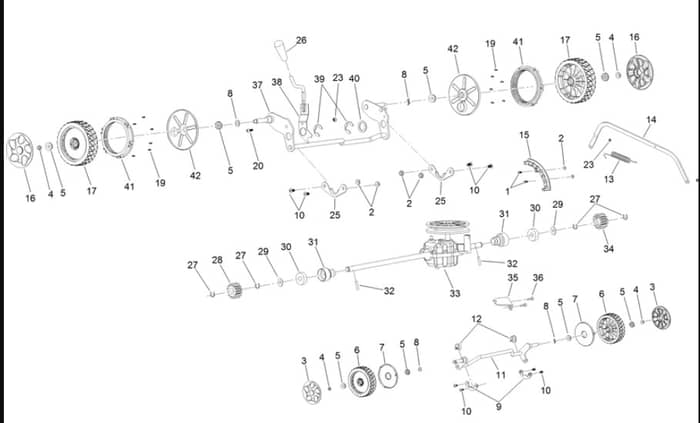

Suspension - Traction - Hoc Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA134-0156 Out of stock	Screw-Tooth	£1.21 £1.01
2	HA134-0117 Out of stock	Nut-Lock. Flange	£1.21 £1.01
3	HA134-2002 Out of stock	Cap-Hub (7)	£5.60 £4.67
4	HA134-0118 Out of stock	Nut-Lock. Flange	£1.15 £0.96
5	HA134-0176 Out of stock	Bearing	£5.27 £4.39
6	HA134-0177 Out of stock	Wheel Asm (7)	£27.24 £22.70
7	HA134-0178 Out of stock	Cover-Wheel. Dustproof	£4.08 £3.40
8	HA134-0179 Out of stock	Washer-Wave	£1.21 £1.01
9	HA134-0180 Out of stock	Clamp-Axle. Fixed	£2.44 £2.03
10	HA134-0181 Out of stock	Screw-Tooth	£1.21 £1.01
11	HA134-0182 Out of stock	Front Wheel Axis Asm	£25.79 £21.49
12	HA134-0183 Out of stock	Ring-Fixed	£1.52 £1.27
13	HA134-0184 Out of stock	Spring-Tension	£8.69 £7.24
14	HA134-0185 Out of stock	Bracket-Connecting. Hoc	£13.60 £11.33
15	HA134-0186 Out of stock	Board-Adjuster. Hoc	£2.26 £1.88
16	HA134-2003 Out of stock	Cap-Hub (8)	£4.32 £3.60
17	HA134-0188 In stock	Wheel Asm (8)	£34.04 £28.37
19	HA134-0131 Out of stock	Screw-Self Driving	£0.50 £0.42
20	HA134-0189 Out of stock	Screw-Pan. Cross	£2.26 £1.88
23	HA134-0190 Out of stock	Nut-Lock	£1.21 £1.01
25	HA134-0191 Out of stock	Ring-Fixed	£1.52 £1.27
26	HA134-0192 Out of stock	Handle-Lever. Hoc	£3.43 £2.86
27	HA134-0197 Out of stock	Washer-Spring	£2.26 £1.88
28	HA134-0198 Out of stock	Gear Output Asm-Rh	£11.46 £9.55
29	HA134-0199 Out of stock	Washer-Flat	£2.26 £1.88
30	HA134-0200 Out of stock	Bearing	£6.95 £5.79
31	HA134-0201 Out of stock	Sheath-Bearing	£14.83 £12.36
32	HA134-0202 Out of stock	Pin-Cynlindrical	£2.21 £1.84
33	HA134-0203 Out of stock	Gearbox	£105.66 £88.05
34	HA134-0204 Out of stock	Gear Output Asm-Lh	£7.92 £6.60
35	HA134-0205 Out of stock	Bracket-Location	£4.32 £3.60
36	HA134-0206 Out of stock	Bolt-HH. Flange	£2.26 £1.88
37	HA134-0207 Out of stock	Rear Axle Shaft Asm	£32.26 £26.88
38	HA134-0208 Out of stock	Handle Asm	£7.50 £6.25
39	HA134-0209 Out of stock	Washer-Spring	£1.82 £1.52
40	HA134-0210 Out of stock	Washer	£1.82 £1.52
41	HA134-0211 Out of stock	Gear Ring	£11.86 £9.88
42	HA134-0212 Out of stock	Cover-Wheel. Dustproof	£8.36 £6.97
