Hayter Osprey 46 - 611A (318000001 - 318999999) - Deck - Grass Bag Assembly

Name: Hayter Osprey 46 - 611A (318000001 - 318999999) - Deck - Grass Bag Assembly
SKU: 46cm lawn mower 611a01 deck grass bag assembly-group
Price: 0.42 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Osprey 46 - 611A (318000001 - 318999999) - Deck - Grass Bag Assembly

Description

Hayter Osprey 46 - 611A

Serial No: 318000001 - 318999999

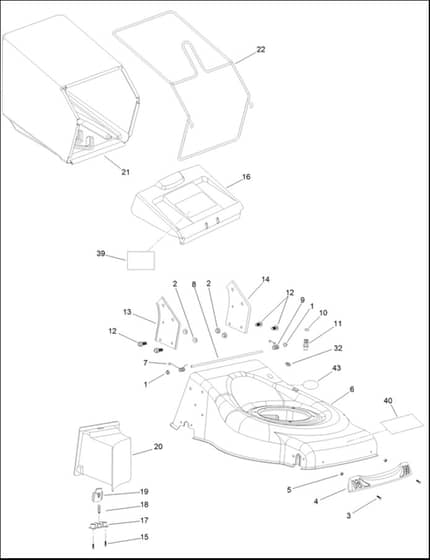

Deck - Grass Bag Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA134-0117 Out of stock	Nut-Lock. Flange	£1.21 £1.01
2	HA134-0118 Out of stock	Nut-Lock. Flange	£1.15 £0.96
3	HA134-0119 Out of stock	Screw-Tooth	£1.21 £1.01
4	HA134-0120 Out of stock	Bumper-Front	£13.06 £10.88
5	HA134-0121 Out of stock	Nut-Lock	£1.21 £1.01
6	HA134-2000 Out of stock	Deck	£123.00 £102.50
7	HA134-0123 Out of stock	Spring-Twist. Rh	£2.16 £1.80
8	HA134-0124 Out of stock	Rod-Spring. Rear Deflector	£4.87 £4.06
9	HA134-0125 Out of stock	Spring-Twist. Lh	£2.00 £1.67
10	HA134-0126 Out of stock	O-Ring	£0.85 £0.71
11	HA134-2001 Out of stock	Port-Wash	£3.13 £2.61
12	HA134-0128 Out of stock	Bolt-HH. Flange	£1.37 £1.14
13	HA134-0129 Out of stock	Bracket-Handle. Rh	£10.43 £8.69
14	HA134-0130 Out of stock	Bracket-Handle. Lh	£10.43 £8.69
15	HA134-0131 Out of stock	Screw-Self Driving	£0.50 £0.42
16	HA134-0132 Out of stock	Deflector-Rear	£27.05 £22.54
17	HA134-0133 Out of stock	Pressing Board-Lock Button. Mulch	£2.58 £2.15
18	HA134-0134 Out of stock	Spring-Button. Mulch	£1.21 £1.01
19	HA134-0135 Out of stock	Lock-Button. Mulch	£2.26 £1.88
20	HA134-0136 Out of stock	Plug-Mulch	£13.06 £10.88
21	HA134-0137 Out of stock	Bag-Grass	£44.88 £37.40
22	HA134-0138 Out of stock	Frame-Bag. Grass	£32.26 £26.88
32	HA134-0148 Out of stock	Sheath-Cable. Protective	£2.16 £1.80
39	HA134-0084 Out of stock	Decal-Safety	£5.62 £4.68
40	HA134-7277 In stock	Logo-Hayter	£5.77 £4.81
43	HA111-9937 Out of stock	Decal-Easy Wash	£2.71 £2.26
