Hayter Osprey 46 - 610B (320000001 - 320999999) - Suspension - Traction - Hoc Assembly

Description

Hayter Osprey 46 - 610B

Serial No: 320000001 - 320999999

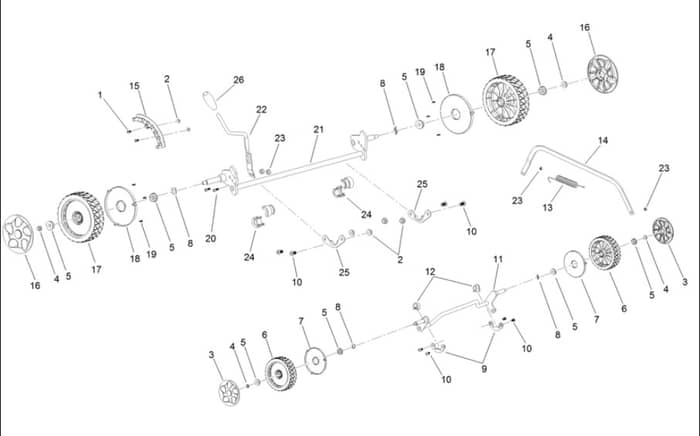

Suspension - Traction - Hoc Assembly - Parts Diagram

	Part No.	Details
1	HA134-0156 Available to backorder	Screw-Tooth	£1.22 £1.02
2	HA134-0117 Available to backorder	Nut-Lock. Flange	£1.22 £1.02
3	HA134-0175 Available to backorder	Cap-Hub (7)	£5.81 £4.84
4	HA134-0118 Available to backorder	Nut-Lock. Flange	£1.16 £0.97
5	HA134-0176 In stock	Bearing	£5.63 £4.69
6	HA134-0177 Available to backorder	Wheel Asm (7)	£27.31 £22.76
7	HA134-0178 Available to backorder	Cover-Wheel. Dustproof	£4.37 £3.64
8	HA134-0179 Available to backorder	Washer-Wave	£1.22 £1.02
9	HA134-0180 Available to backorder	Clamp-Axle. Fixed	£2.44 £2.03
10	HA134-0181 Available to backorder	Screw-Tooth	£1.22 £1.02
11	HA134-0182 Available to backorder	Front Wheel Axis Asm	£26.05 £21.71
12	HA134-0183 Available to backorder	Ring-Fixed	£1.55 £1.29
13	HA134-0184 Available to backorder	Spring-Tension	£8.40 £7.00
14	HA134-0185 Available to backorder	Bracket-Connecting. Hoc	£14.00 £11.67
15	HA134-0186 Available to backorder	Board-Adjuster. Hoc	£2.34 £1.95

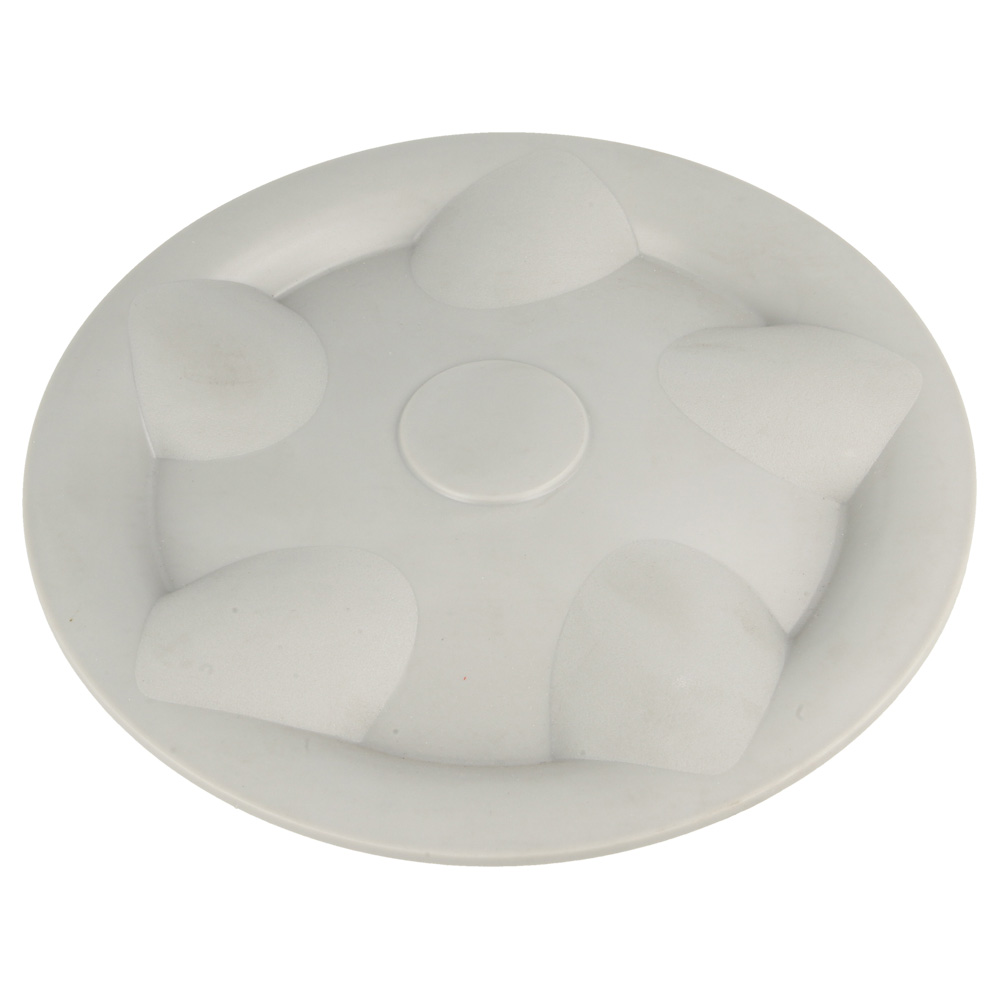

16	HA134-0187 Available to backorder	Cap-Hub (8)	£6.17 £5.14
17	HA134-0188 Available to backorder	Wheel Asm (8)	£32.42 £27.02
18	HA134-0196 Available to backorder	Cover-Wheel. Dustproof	£9.66 £8.05
19	HA134-0131 Available to backorder	Screw-Self Driving	£0.49 £0.41
20	HA134-0189 Available to backorder	Screw-Pan. Cross	£2.29 £1.91
21	HA134-0193 Available to backorder	Rear Axle Shaft Asm	£27.31 £22.76
22	HA134-0194 Available to backorder	Handle Asm	£7.01 £5.84
23	HA134-0190 Available to backorder	Nut-Lock	£1.22 £1.02
24	HA134-0195 Available to backorder	Sleeve-Shaft. Axle	£1.22 £1.02
25	HA134-0191 Available to backorder	Ring-Fixed	£1.55 £1.29
26	HA134-0192 Available to backorder	Handle-Lever. Hoc	£3.48 £2.90
