Hayter Motif 53 AD - 435H (435H314000028 - 435H314999999) - Mainframe

Name: Hayter Motif 53 AD - 435H (435H314000028 - 435H314999999) - Mainframe
SKU: motif 53 ad 435h02 mainframe-group
Price: 0.32 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Motif 53 AD - 435H (435H314000028 - 435H314999999) - Mainframe

Description

Hayter Motif 53 Autodrive Mower - 435H

Serial No: 435H314000028 - 435H314999999

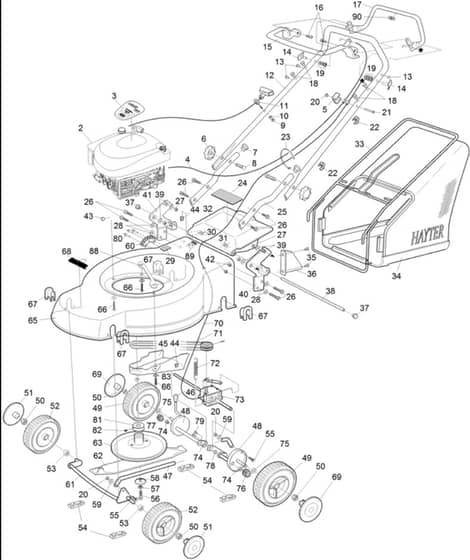

Mainframe - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HA111-6692 Available to backorder	Decal Engine Motif 53	£199.98 £166.65
4	HA111-3343 Available to backorder	Cable Engine Brake	£12.70 £10.58
5	HA411035 In stock	Cable Holder	£2.04 £1.70
6	HA480088 In stock	Knob-Handlebar	£5.48 £4.57
8	HAHY226024 Available to backorder	Bolt-Handlebar	£1.64 £1.37
9	HA09544 Available to backorder	Nut-Nyloc	£1.60 £1.33
10	HA09472 Available to backorder	Washer-Plain	£1.50 £1.25
12	HA305145W In stock	Handlebar - Upper	£66.32 £55.27
13	HA341033 In stock	Fastener-Drive	£1.70 £1.42
14	HA340182 In stock	Pin-Pivot	£1.66 £1.38
15	HA111-9662 In stock	Lever-Engine	£18.24 £15.20
16	HA09687 In stock	Screw	£1.68 £1.40
17	HA111-1921-03 In stock	Lever-Clutch	£43.56 £36.30
20	HA09438 Available to backorder	Nut-Nyloc	£1.66 £1.38
21	HAZBH1F040U Available to backorder	Screw-HH	£2.02 £1.68
22	HA410037 In stock	Guide-Cable	£1.50 £1.25
23	HAHY3966 Available to backorder	Tie-Cable	£1.60 £1.33
24	HA111-0083 Available to backorder	Decal-Safety	£2.36 £1.97
25	HA432001W Available to backorder	Handlebar - Lower	£10.70 £8.92
26	HA09368 Available to backorder	Screw-HH	£1.58 £1.32
27	HA09441 Available to backorder	Nut-Hex. Ni	£1.56 £1.30
28	HA09475 Available to backorder	Washer	£1.58 £1.32
29	HA320006 In stock	Decal-Hoc	£1.66 £1.38
31	HA111-7656 Available to backorder	Spring Torsion Rear Defl. Lh	£2.66 £2.22
32	HA111-7652 Available to backorder	Rear Deflector 48	£22.96 £19.13
33	HA433010W Available to backorder	Frame - Grassbag	£29.10 £24.25
34	HA433003 Available to backorder	Fabric - Grassbag	£55.12 £45.93
36	HA432021W Available to backorder	Plate - Discharge	£10.66 £8.88
37	HA111-7657 Available to backorder	Starlux End Cap 6mm	£1.46 £1.22
38	HA433007 Available to backorder	Pin - Deflector	£4.48 £3.73
39	HA09270 In stock	Washer-Plain	£1.68 £1.40
40	HA435017W Available to backorder	Bracket - Handlebar Lh	£20.86 £17.38
41	HA435018W In stock	Bracket - Handlebar Rh	£20.86 £17.38
42	HA111-7683 Available to backorder	Nut-Rivet	£1.78 £1.48
43	HA1662 In stock	Key-Woodruff	£1.50 £1.25
44	HA111-7654 Available to backorder	Clip Belt Cover	£1.75 £1.46
45	HA111-7670 In stock	Belt Cover 53	£14.18 £11.82
46	HA111-7682 Available to backorder	Knob Hoc-Griff	£3.42 £2.85
47	HA435014W Available to backorder	Connecting Rod 53	£22.74 £18.95
48	HA434015W Available to backorder	Axle - Rear 48 Lh	£44.08 £36.73
48	HA435011W Available to backorder	Axle - Rear 53 Rh	£40.04 £33.37
49	HA111-7663 In stock	Wheel Rear A/D 200 Waffel	£22.86 £19.05
50	HA111-7664 Available to backorder	M12 Nyloc Extra Thin	£3.32 £2.77
51	HA111-7665 Available to backorder	Trim Wheel 180 Black	£7.02 £5.85
52	HA111-7661 Available to backorder	Wheel Front 180 Waffel	£15.50 £12.92
53	HA111-7659 Available to backorder	Axle Spacer	£1.75 £1.46
54	HA111-7681 In stock	Axle Retainer	£1.46 £1.22
55	HA111-7678 Available to backorder	M6 x 6 Shoulder Screw	£1.70 £1.42
56	HA09118 Available to backorder	Bolt-HH	£1.80 £1.50
57	HA09273 In stock	Washer-Spring	£1.66 £1.38
58	HAHY4014 In stock	Spacer-Distance. Cutterbar	£11.82 £9.85
59	HA111-7679 Available to backorder	Washer-Plain	£0.38 £0.32
61	HA435013W Available to backorder	Axle - Front	£36.54 £30.45
62	HA435005 Available to backorder	Cutterbar 21"	£31.20 £26.00
63	HA397042W Available to backorder	Friction Disc W/A	£56.66 £47.22
67	HA111-7680 In stock	Axle Support	£2.58 £2.15
68	HA410087 In stock	Decal	£5.66 £4.72
69	HA111-7666 Available to backorder	Trim Wheel 200 Black	£7.02 £5.85
70	HA111-3363 Available to backorder	Clutch Cable	£27.30 £22.75
71	HA111-7668 Available to backorder	Belt Drive 53	£12.08 £10.07
72	HA111-7673 In stock	Spring Tension - Gearbox	£3.08 £2.57
73	HA111-7672 Available to backorder	Gearbox 53	£104.40 £87.00
74	HA111-7674 Available to backorder	Bush Flanged 325Mks	£3.64 £3.03
76	HA111-7676 In stock	Gear Drive Assy Lh	£35.00 £29.17
77	HA111-7677 Available to backorder	Gear Drive Assy Rh	£35.00 £29.17
78	HA111-7660 Available to backorder	Washer 13 Dia	£1.75 £1.46
79	HA09546 Available to backorder	Screw-Taptite	£1.68 £1.40
80	HAMU710259 Available to backorder	Rivet-Pop	£3.08 £2.57
81	HA434001 Available to backorder	Pulley Drive	£26.68 £22.23
82	HA09619 Available to backorder	Grubscrew	£1.68 £1.40
83	HA111-7658 Available to backorder	Washer 10.5 Dia x 30 O/D x 2.5	£1.70 £1.42
88	HA111-4074 Available to backorder	Plate Engine	£18.16 £15.13
89	HA111-7722 Available to backorder	Made In Britain Decal	£1.48 £1.23
90	HA111-7853 Available to backorder	Decal - Transmission Control	£199.98 £166.65
