Hayter Motif 48 Push - 438H (315000001 - 315999999) - Mainframe

Description

Hayter Motif 48 Push - 438H

Serial No: 315000001 - 315999999

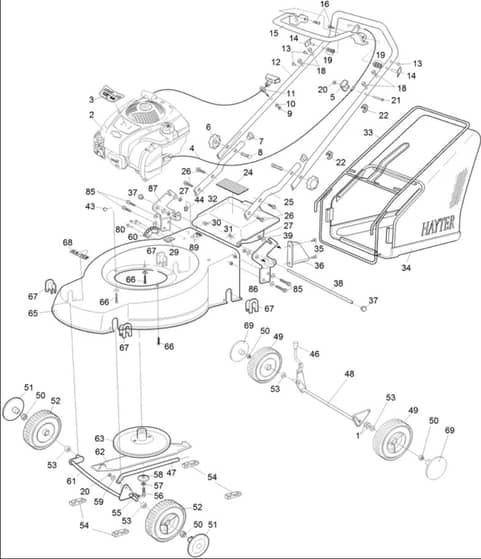

Mainframe - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HAHY09485 Out of stock	Washer-Plain	£1.82 £1.52
3	HA111-7371 Out of stock	Decal Engine Code 438H & 439H	£7.50 £6.25
4	HA111-3342 Out of stock	Cable Engine Brake	£13.01 £10.84
5	HA411035 In stock	Cable Holder	£2.21 £1.84
6	HA480088 In stock	Knob-Handlebar	£5.64 £4.70
8	HAHY226024 In stock	Bolt-Handlebar	£1.79 £1.49
9	HA09544 Out of stock	Nut-Nyloc	£1.74 £1.45
10	HA09472 Out of stock	Washer-Plain	£1.55 £1.29
12	HA305145W In stock	Handlebar - Upper	£63.12 £52.60
13	HA341033 In stock	Fastener-Drive	£1.69 £1.41
14	HA340182 Out of stock	Pin-Pivot	£1.70 £1.42
15	HA111-9662 In stock	Lever-Engine	£18.86 £15.72
16	HA09687 In stock	Screw	£1.69 £1.41
20	HA09438 In stock	Nut-Nyloc	£1.61 £1.34
21	HAZBH1F040U Out of stock	Screw-HH	£2.02 £1.68
22	HA410037 In stock	Guide-Cable	£1.63 £1.36
24	HA111-0083 Out of stock	Decal-Safety	£2.58 £2.15
25	HA432001W Out of stock	Handlebar - Lower	£11.63 £9.69
26	HA09368 Out of stock	Screw-HH	£1.72 £1.43
27	HA09441 Out of stock	Nut-Hex. Ni	£1.69 £1.41
29	HA320006 Out of stock	Decal-Hoc	£1.81 £1.51
30	HA111-7655 Out of stock	Spring Torsion Rear Defl. Rh	£2.70 £2.25
31	HA111-7656 Out of stock	Spring Torsion Rear Defl. Lh	£2.84 £2.37
32	HA111-7653 Out of stock	Rear Deflector 48	£22.74 £18.95
33	HA433010W Out of stock	Frame - Grassbag	£29.83 £24.86
34	HA433003 Out of stock	Fabric - Grassbag	£56.46 £47.05
36	HA432021W Out of stock	Plate - Discharge	£10.93 £9.11
37	HA111-7657 Out of stock	Starlux End Cap 6mm	£1.50 £1.25
38	HA433007 Out of stock	Pin - Deflector	£4.58 £3.82
39	HA09270 Out of stock	Washer-Plain	£1.69 £1.41
43	HA1662 In stock	Key-Woodruff	£1.63 £1.36
44	HA111-7654 Out of stock	Clip Belt Cover	£1.50 £1.25
46	HA111-7682 Out of stock	Knob Hoc-Griff	£3.49 £2.91
47	HA111-7492-03 Out of stock	Connecting Rod 48 Push	£25.34 £21.12
48	HA111-7504-03 Out of stock	Axle Rear 48 Push W/A	£59.51 £49.59
49	HA111-7662 Out of stock	Wheel Rear 200 Waffel	£18.10 £15.08
50	HA111-7664 Out of stock	M12 Nyloc Extra Thin	£3.61 £3.01
51	HA111-7665 Out of stock	Trim Wheel 180 Black	£7.19 £5.99
52	HA111-7661 Out of stock	Wheel Front 180 Waffel	£15.88 £13.23
53	HA111-7659 Out of stock	Axle Spacer	£1.50 £1.25
54	HA111-7681 In stock	Axle Retainer	£1.75 £1.46
55	HA111-7678 Out of stock	M6 x 6 Shoulder Screw	£1.45 £1.21
56	HA09118 Out of stock	Bolt-HH	£1.85 £1.54
57	HA09273 Out of stock	Washer-Spring	£1.81 £1.51
58	HAHY4014 Out of stock	Spacer-Distance. Cutterbar	£12.24 £10.20
59	HA111-7679 In stock	Washer-Plain	£0.37 £0.31
61	HA433014W Out of stock	Axle - Front	£40.37 £33.64
62	HA111-5013 Out of stock	Cutterbar 19"	£32.44 £27.03
63	HA397042W Out of stock	Friction Disc W/A	£58.07 £48.39
65	HA111-0962-08 Out of stock	Deck - Mainframe 48	£287.28 £239.40
67	HA111-7680 In stock	Axle Support	£2.82 £2.35
68	HA410087 In stock	Decal	£5.86 £4.88
69	HA111-7666 Out of stock	Trim Wheel 200 Black	£7.19 £5.99
80	HAMU710259 Out of stock	Rivet-Pop	£3.08 £2.57
85	HA111-6759 Out of stock	Screw Taptite M10 x 25 Hex W Hd	£3.95 £3.29
86	HA111-0964-03 Out of stock	Bracket Handlebar Lh	£16.67 £13.89
87	HA111-0965-03 Out of stock	Bracket Handlebar Rh	£16.67 £13.89
89	HA111-7722 Out of stock	Made In Britain Decal	£1.52 £1.27
