Hayter Motif 48 Push - 433H (433H313000001 - 433H313999999) - Main Assembly 433 Motif 48 Push

Name: Hayter Motif 48 Push - 433H (433H313000001 - 433H313999999) - Main Assembly 433 Motif 48 Push
SKU: motif 48 push 433h01 main assembly 433 motif 48 push-group
Price: 0.32 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Motif 48 Push - 433H (433H313000001 - 433H313999999) - Main Assembly 433 Motif 48 Push

Description

Hayter Motif 48 Push - 433H

Serial No: 433H313000001 - 433H313999999

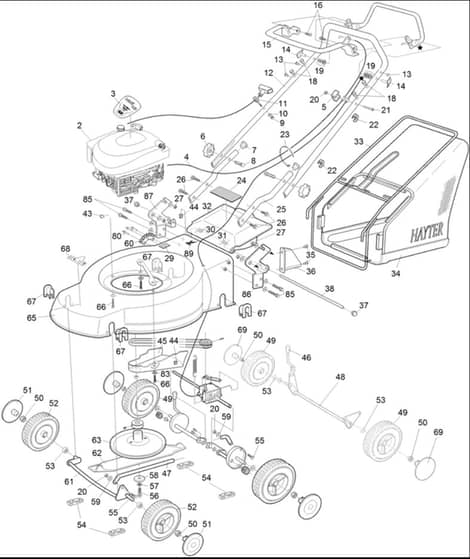

Main Assembly 433 Motif 48 Push - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HA111-6687 Available to backorder	Decal Engine Motif 48(Rs)	£7.46 £6.22
4	HA111-3342 Available to backorder	Cable Engine Brake	£12.70 £10.58
5	HA411035 In stock	Cable Holder	£2.04 £1.70
6	HA480088 In stock	Knob-Handlebar	£5.48 £4.57
8	HAHY226024 Available to backorder	Bolt-Handlebar	£1.64 £1.37
9	HA09544 Available to backorder	Nut-Nyloc	£1.60 £1.33
10	HA09472 Available to backorder	Washer-Plain	£1.50 £1.25
12	HA305145W In stock	Handlebar - Upper	£66.32 £55.27
13	HA341033 In stock	Fastener-Drive	£1.70 £1.42
14	HA340182 In stock	Pin-Pivot	£1.66 £1.38
15	HA111-9662 In stock	Lever-Engine	£18.24 £15.20
16	HA09687 In stock	Screw	£1.68 £1.40
20	HA09438 Available to backorder	Nut-Nyloc	£1.66 £1.38
21	HAZBH1F040U Available to backorder	Screw-HH	£2.02 £1.68
22	HA410037 In stock	Guide-Cable	£1.50 £1.25
23	HAHY3966 Available to backorder	Tie-Cable	£1.60 £1.33
24	HA111-0083 Available to backorder	Decal-Safety	£2.36 £1.97
25	HA432001W Available to backorder	Handlebar - Lower	£10.70 £8.92
26	HA09368 Available to backorder	Screw-HH	£1.58 £1.32
27	HA09441 Available to backorder	Nut-Hex. Ni	£1.56 £1.30
29	HA320006 In stock	Decal-Hoc	£1.66 £1.38
31	HA111-7656 Available to backorder	Spring - Rear Deflector Lh	£2.66 £2.22
33	HA433010W Available to backorder	Frame - Grassbag	£29.10 £24.25
34	HA433003 Available to backorder	Fabric - Grassbag	£55.12 £45.93
36	HA432021W Available to backorder	Plate - Discharge	£10.66 £8.88
37	HA111-7657 Available to backorder	End Cap - M8 Starlux	£1.46 £1.22
38	HA433007 Available to backorder	Pin - Deflector	£4.48 £3.73
43	HA1662 In stock	Key-Woodruff	£1.50 £1.25
44	HA111-7654 Available to backorder	Clip - Belt Cover	£1.75 £1.46
45	HA111-7669 Available to backorder	Cover - Belt	£14.68 £12.23
46	HA111-7682 Available to backorder	Knob - Hoc	£3.42 £2.85
47	HA433011W Available to backorder	Connecting Rod 48	£20.98 £17.48
48	HA433016W Available to backorder	Axle - Rear 48	£55.14 £45.95
49	HA111-7662 Available to backorder	Wheel - Rear 200mm	£17.66 £14.72
50	HA111-7664 Available to backorder	Nut - M12 Nyloc	£3.32 £2.77
51	HA111-7665 Available to backorder	Trim - Front Wheel 180mm	£7.02 £5.85
52	HA111-7661 Available to backorder	Wheel - Front 180mm	£15.50 £12.92
53	HA111-7659 Available to backorder	Spacer Axle	£1.75 £1.46
54	HA111-7681 In stock	Retainer - Axle	£1.46 £1.22
55	HA111-7678 Available to backorder	Screw - Shoulder M6 x 6	£1.70 £1.42
56	HA09118 Available to backorder	Bolt-HH	£1.80 £1.50
57	HA09273 In stock	Washer-Spring	£1.66 £1.38
58	HAHY4014 In stock	Spacer-Distance. Cutterbar	£11.82 £9.85
59	HA111-7679 Available to backorder	Washer	£0.38 £0.32
61	HA433014W Available to backorder	Axle - Front	£37.16 £30.97
62	HA480149 In stock	Cutterblade - 19 Inch	£26.36 £21.97
63	HA397042W Available to backorder	Friction Disc	£56.66 £47.22
65	HA111-0962-08 Available to backorder	Deck - Mainframe 48	£293.64 £244.70
67	HA111-7680 In stock	Axle Support	£2.58 £2.15
68	HA410087 In stock	Decal	£5.66 £4.72
69	HA111-7666 Available to backorder	Trim - Rear Wheel 200mm	£7.02 £5.85
80	HAMU710259 Available to backorder	Rivet-Pop	£3.08 £2.57
83	HA111-7658 Available to backorder	Washer 10.5mm Dis	£1.70 £1.42
85	HA111-6759 Available to backorder	Screw Taptite M10 x 25 Hex W Hd	£3.86 £3.22
86	HA111-0964-03 Available to backorder	Bracket Handlebar Lh	£16.28 £13.57
87	HA111-0965-03 Available to backorder	Bracket Handlebar Rh	£16.28 £13.57
89	HA111-7722 Available to backorder	Decal Made In Britain	£1.48 £1.23
