Hayter Motif 48 Push - 433C (433C001001 - 433C099999) - Mainframe Assembly

Description

Hayter Motif 48 Push - 433C

Serial No: 433C001001 - 433C099999

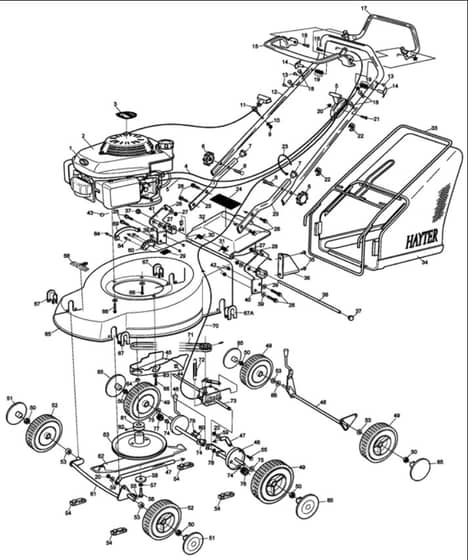

Mainframe Assembly - Parts Diagram

	Part No.	Details
1	HA410064 Available to backorder	Decal - Blade Of Grass	£9.37 £7.81
3	HA433009 Available to backorder	Decal - Engine	£4.82 £4.02
6	HA480088 In stock	Knob-Handlebar	£5.87 £4.89
8	HAHY226024 In stock	Bolt-Handlebar	£1.81 £1.51
9	HA09544 In stock	Nut-Nyloc	£1.76 £1.47
10	HA09472 Available to backorder	Washer-Plain	£1.55 £1.29
12	HA305145W In stock	Handlebar - Upper	£70.64 £58.87
13	HA341033 In stock	Fastener-Drive	£1.84 £1.53
14	HA340182 In stock	Pin-Pivot	£1.84 £1.53
15	HA111-9662 In stock	Lever-Engine	£20.12 £16.77
16	HA09687 In stock	Screw	£1.84 £1.53
20	HA09438 Available to backorder	Nut-Nyloc	£1.72 £1.43
21	HA09780 Available to backorder	Setscrew	£1.86 £1.55
22	HA410037 In stock	Guide-Cable	£1.66 £1.38
24	HA111-0083 In stock	Decal - Rear Deflector	£2.60 £2.17
25	HA432001W Available to backorder	Handlebar - Lower	£11.06 £9.22
26	HA09368 Available to backorder	Screw-HH	£1.74 £1.45
27	HA09441 Available to backorder	Nut-Hex. Ni	£1.76 £1.47
28	HA09475 Available to backorder	Washer	£1.76 £1.47
29	HA320006 In stock	Decal-Hoc	£1.79 £1.49
31	HA111-7656 Available to backorder	Spring - Rear Deflector Lh	£2.83 £2.36
33	HA433010W Available to backorder	Frame - Grassbag	£30.11 £25.09
34	HA433003 Available to backorder	Fabric - Grassbag	£57.02 £47.52
36	HA432021W Available to backorder	Plate - Discharge	£11.03 £9.19
37	HA111-7657 In stock	End Cap - M8 Starlux	£1.61 £1.34
38	HA433007 Available to backorder	Pin - Deflector	£4.63 £3.86
39	HA09270 In stock	Washer-Plain	£1.79 £1.49
40	HA433017W In stock	Bracket - Handlebar Lh	£23.00 £19.17
41	HA433018W In stock	Bracket - Handlebar Rh	£23.00 £19.17
42	HA111-7683 Available to backorder	Nut-Rivet	£1.54 £1.28
43	HA1662 In stock	Key-Woodruff	£1.66 £1.38
44	HA111-7654 Available to backorder	Clip - Belt Cover	£1.51 £1.26
45	HA111-7669 In stock	Cover - Belt	£16.20 £13.50
46	HA433016W Available to backorder	Axle - Rear 48	£58.69 £48.91
46	HA111-7682 Available to backorder	Knob - Hoc	£3.54 £2.95
47	HA433011W Available to backorder	Connecting Rod 48	£21.71 £18.09
49	HA111-7662 Available to backorder	Wheel - Rear 200mm	£18.80 £15.67
50	HA111-7664 Available to backorder	Nut - M12 Nyloc	£3.54 £2.95
51	HA111-7665 Available to backorder	Trim - Front Wheel 180mm	£7.46 £6.22
52	HA111-7661 Available to backorder	Wheel - Front 180mm	£16.49 £13.74
53	HA111-7659 Available to backorder	Spacer Axle	£1.55 £1.29
54	HA111-7681 In stock	Retainer - Axle	£1.57 £1.31
55	HA111-7678 Available to backorder	Screw - Shoulder M6 x 6	£1.46 £1.22
56	HA09122 In stock	Bolt-Unf	£1.84 £1.53
57	HA09273 In stock	Washer-Spring	£1.84 £1.53
59	HA111-7679 In stock	Washer	£0.42 £0.35
61	HA433014W Available to backorder	Axle - Front	£38.44 £32.03
62	HA111-5013 Available to backorder	Cutterbar 19"	£28.37 £23.64
64	HA434005 Available to backorder	Spacer	£7.43 £6.19
65	HA110.004.382V Available to backorder	Deck - Mainframe 48	£314.04 £261.70
67	HA111-7680 Available to backorder	Axle Support	£2.84 £2.37
68	HA410087 In stock	Decal - Hayter	£6.24 £5.20
83	HA111-7658 Available to backorder	Washer 10.5mm Dis	£1.46 £1.22
84	HAMU710259 Available to backorder	Rivet-Pop	£3.08 £2.57
85	HA111-7666 Available to backorder	Trim - Rear Wheel 200mm	£7.46 £6.22
86	HAZWP1L000U Available to backorder	Washer-Plain	£2.54 £2.12
