Hayter Motif 48 AD - 434E (434E270000001 - 434E270999999) - Mainframe

Description

Hayter Motif 48 Autodrive Mower - 434E

Serial No: 434E270000001 - 434E270999999

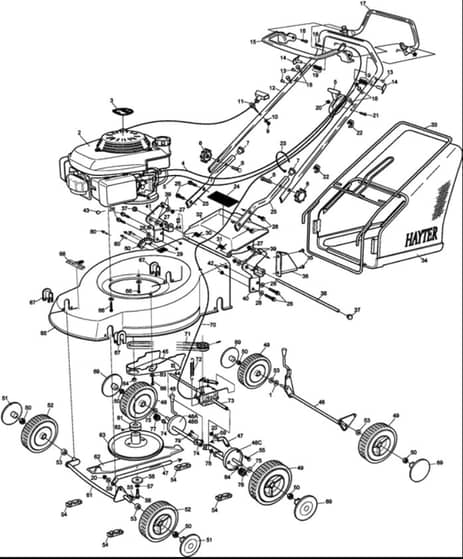

Mainframe - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HA433009 Out of stock	Decal - Engine	£5.06 £4.22
5	HA432006 Out of stock	Control Throttle	£25.31 £21.09
6	HA480088 In stock	Knob-Handlebar	£5.64 £4.70
8	HAHY226024 In stock	Bolt-Handlebar	£1.79 £1.49
9	HA09544 Out of stock	Nut-Nyloc	£1.74 £1.45
10	HA09472 Out of stock	Washer-Plain	£1.55 £1.29
12	HA305145W In stock	Handlebar - Upper	£66.84 £55.70
13	HA341033 In stock	Fastener-Drive	£1.69 £1.41
14	HA340182 Out of stock	Pin-Pivot	£1.70 £1.42
15	HA111-9662 In stock	Lever-Engine	£18.86 £15.72
16	HA09687 In stock	Screw	£1.69 £1.41
17	HA111-1921-03 Out of stock	Lever-Clutch	£45.06 £37.55
20	HA09438 In stock	Nut-Nyloc	£1.61 £1.34
21	HA09780 In stock	Setscrew	£1.96 £1.63
22	HA410037 In stock	Guide-Cable	£1.63 £1.36
23	HA3966 Out of stock	Spring - Clip	£1.18 £0.98
24	HA111-0083 In stock	Decal-Safety	£2.58 £2.15
25	HA432001W Out of stock	Handlebar - Lower	£11.63 £9.69
26	HA09368 Out of stock	Screw-HH	£1.72 £1.43
27	HA09441 Out of stock	Nut-Hex. Ni	£1.69 £1.41
28	HA09475 Out of stock	Washer	£1.72 £1.43
29	HA320006 In stock	Decal-Hoc	£1.81 £1.51
30	HA111-7655 Out of stock	Spring - Rear Deflector Rh	£2.70 £2.25
31	HA111-7656 Out of stock	Spring - Rear Deflector Lh	£2.90 £2.42
32	HA111-7653 Out of stock	Deflector - Rear	£22.74 £18.95
33	HA433010W Out of stock	Frame - Grassbag	£29.83 £24.86
34	HA433003 Out of stock	Fabric - Grassbag	£56.46 £47.05
36	HA432021W Out of stock	Plate - Discharge	£10.93 £9.11
37	HA111-7657 Out of stock	End Cap - M8 Starlux	£1.50 £1.25
38	HA433007 Out of stock	Pin - Deflector	£4.58 £3.82
39	HA09270 Out of stock	Washer-Plain	£1.69 £1.41
40	HA433017W Out of stock	Bracket - Handlebar Lh	£20.40 £17.00
41	HA433018W Out of stock	Bracket - Handlebar Rh	£20.40 £17.00
42	HA111-7683 Out of stock	Nut-Rivet	£1.52 £1.27
43	HA1662 In stock	Key-Woodruff	£1.63 £1.36
44	HA111-7654 Out of stock	Clip - Belt Cover	£1.50 £1.25
45	HA111-7669 In stock	Cover - Belt	£15.19 £12.66
46	HA111-7682 Out of stock	Knob - Hoc	£3.49 £2.91
47	HA434003W Out of stock	Connecting Rod 48	£13.49 £11.24
48	HA434015W Out of stock	Axle - Rear 48 Lh	£45.17 £37.64
49	HA111-7663 In stock	Wheel - Rear 200mm	£23.65 £19.71
50	HA111-7664 Out of stock	Nut - M12 Nyloc	£3.61 £3.01
51	HA111-7665 Out of stock	Trim - Front Wheel 180mm	£7.19 £5.99
52	HA111-7661 Out of stock	Wheel - Front 180mm	£15.88 £13.23
53	HA111-7659 Out of stock	Spacer Axle	£1.50 £1.25
54	HA111-7681 In stock	Retainer - Axle	£1.75 £1.46
55	HA111-7678 Out of stock	Screw - Shoulder M6 x 6	£1.45 £1.21
56	HA09122 In stock	Bolt-Unf	£1.81 £1.51
57	HA09273 In stock	Washer-Spring	£1.81 £1.51
58	HA4014 Out of stock	Drag Plate	£12.24 £10.20
59	HA111-7679 Out of stock	Washer	£0.37 £0.31
61	HA433014W Out of stock	Axle - Front	£40.37 £33.64
62	HA111-5013 Out of stock	Cutterbar 19"	£32.44 £27.03
63	HA397042W Out of stock	Friction Disc	£58.07 £48.39
64	HA434005 Out of stock	Spacer	£7.80 £6.50
67	HA111-7680 In stock	Axle Support	£2.82 £2.35
68	HA410087 In stock	Decal	£5.86 £4.88
69	HA111-7666 Out of stock	Trim - Rear Wheel 200mm	£7.19 £5.99
70	HA434002 In stock	Cable- Clutch A/D	£26.28 £21.90
71	HA111-7667 Out of stock	Belt Drive	£10.54 £8.78
72	HA111-7673 Out of stock	Spring - Tension Gearbox	£3.18 £2.65
73	HA111-7671 Out of stock	Gearbox 48	£123.00 £102.50
76	HA111-7676 Out of stock	Gear Drive Assembly Lh	£35.87 £29.89
77	HA111-7677 Out of stock	Gear Drive Assembly Rh	£34.16 £28.47
78	HA111-7660 Out of stock	Washer 13mm Dia	£1.50 £1.25
79	HA09546 Out of stock	Screw-Taptite	£1.72 £1.43
80	HAMU710259 Out of stock	Rivet-Pop	£3.08 £2.57
81	HA434001 Out of stock	Pulley Drive	£27.60 £23.00
82	HA09769 Out of stock	Grubscrew	£1.63 £1.36
83	HA111-7658 Out of stock	Washer 10.5mm Dis	£1.45 £1.21
84	HA111-7674 Out of stock	Olite Bush Flanged	£3.72 £3.10
