Hayter Motif 41 Push - 432G (310000001 - 312999999) - Mainframe

Description

Hayter Motif 41 - Push Mower - 432G

Serial No: 310000001 - 312999999

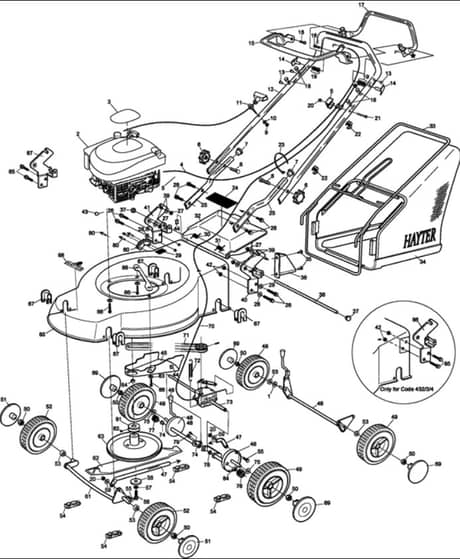

Mainframe - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HAHY09485	Washer-Plain	Out of stock	£1.82 £1.52
2	HA111-3071	Engine B&S Quantum xts 50	Out of stock	£266.52 £222.10
3	HA111-3209	Decal Engine Motif 41(Rs)	Out of stock	£6.86 £5.72
4	HA111-3342	Cable Engine Brake	Out of stock	£13.01 £10.84
5	HA411035	Cable Holder	In stock	£2.21 £1.84
6	HA480088	Knob-Handlebar	In stock	£5.64 £4.70
8	HAHY226024	Bolt-Handlebar	In stock	£1.79 £1.49
9	HA09544	Nut-Nyloc	Out of stock	£1.74 £1.45
10	HA09472	Washer-Plain	Out of stock	£1.55 £1.29
12	HA305145W	Handlebar - Upper	In stock	£66.84 £55.70
13	HA341033	Fastener-Drive	In stock	£1.69 £1.41
14	HA340182	Pin-Pivot	Out of stock	£1.70 £1.42
15	HA111-9662	Lever-Engine	In stock	£18.86 £15.72
16	HA09687	Screw	In stock	£1.69 £1.41
20	HA09438	Nut-Nyloc	In stock	£1.61 £1.34
21	HAZBH1F040U	Screw-HH	Out of stock	£2.02 £1.68
22	HA410037	Guide-Cable	In stock	£1.63 £1.36
23	HAHY3966	Tie-Cable	Out of stock	£1.63 £1.36
24	HA111-0083	Decal-Safety	In stock	£2.58 £2.15
25	HA432001W	Handlebar - Lower	Out of stock	£11.63 £9.69
26	HA09368	Screw-HH	Out of stock	£1.72 £1.43
27	HA09441	Nut-Hex. Ni	Out of stock	£1.69 £1.41
28	HA09475	Washer	Out of stock	£1.72 £1.43
29	HA320006	Decal-Hoc	In stock	£1.81 £1.51
30	HA111-7655	Spring - Rear Deflector Rh	Out of stock	£2.70 £2.25
31	HA111-7656	Spring - Rear Deflector Lh	Out of stock	£2.90 £2.42
32	HA111-7652	Deflector - Rear	Out of stock	£23.53 £19.61
33	HA432010W	Frame - Grassbag	Out of stock	£28.61 £23.84
36	HA432021W	Plate - Discharge	Out of stock	£10.93 £9.11
37	HA111-7657	End Cap - M8 Starlux	Out of stock	£1.50 £1.25
38	HA432007	Pin - Deflector	Out of stock	£4.34 £3.62
39	HA09270	Washer-Plain	Out of stock	£1.69 £1.41
40	HA433017W	Bracket - Handlebar Lh	Out of stock	£20.40 £17.00
41	HA433018W	Bracket - Handlebar Rh	Out of stock	£20.40 £17.00
43	HA1662	Key-Woodruff	In stock	£1.63 £1.36
46	HA111-7682	Knob - Hoc	Out of stock	£3.49 £2.91
47	HA111-7279-03	Connecting Rod 41	Out of stock	£25.74 £21.45
48	HA432027W	Axle - Rear 41	Out of stock	£58.93 £49.11
49	HA111-7662	Wheel - Rear 200mm	Out of stock	£18.10 £15.08
50	HA111-7664	Nut - M12 Nyloc	Out of stock	£3.61 £3.01
51	HA111-7665	Trim - Front Wheel 180mm	Out of stock	£7.19 £5.99
52	HA111-7661	Wheel - Front 180mm	Out of stock	£15.88 £13.23
53	HA111-7659	Spacer Axle	Out of stock	£1.50 £1.25
54	HA111-7681	Retainer - Axle	In stock	£1.75 £1.46
55	HA111-7678	Screw - Shoulder M6 x 6	Out of stock	£1.45 £1.21
56	HA09118	Bolt-HH	Out of stock	£1.85 £1.54
57	HA09273	Washer-Spring	In stock	£1.81 £1.51
58	HAHY4014	Spacer-Distance. Cutterbar	In stock	£12.24 £10.20
59	HA111-7679	Washer	Out of stock	£0.37 £0.31
61	HA432019W	Axle - Front	Out of stock	£41.42 £34.52
62	HAHY201026	Cutter Blade	In stock	£31.28 £26.07
63	HA397042W	Friction Disc	Out of stock	£58.07 £48.39
64	HA111-3705	Crank Spacer Large	Out of stock	£13.36 £11.13
65	HA111-0704-08	Deck - Mainframe 41	Out of stock	£281.78 £234.82
67	HA111-7680	Axle Support	In stock	£2.82 £2.35
68	HA410087	Decal	In stock	£5.86 £4.88
69	HA111-7666	Trim - Rear Wheel 200mm	Out of stock	£7.19 £5.99
80	HAMU710259	Rivet-Pop	Out of stock	£3.08 £2.57
85	HA09787	Screw-Taptite	Out of stock	£1.63 £1.36
