Hayter Motif 41 Push - 432D (432D260000001 - 432D260999999) - Main Assembly

Name: Hayter Motif 41 Push - 432D (432D260000001 - 432D260999999) - Main Assembly
SKU: motif 41 push 432d main assembly-group
Price: 0.32 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Motif 41 Push - 432D (432D260000001 - 432D260999999) - Main Assembly

Description

Hayter Motif 41 - Push Mower - 432D

Serial No: 432D260000001 - 432D260999999

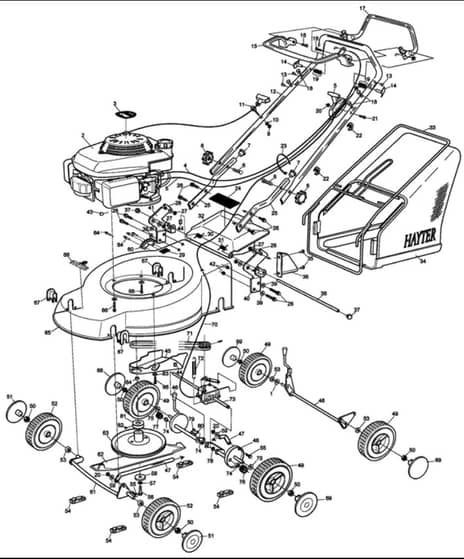

Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HAHY09485 Available to backorder	Washer-Plain	£1.68 £1.40
6	HA480088 In stock	Knob-Handlebar	£5.48 £4.57
8	HAHY226024 Available to backorder	Bolt-Handlebar	£1.64 £1.37
9	HA09544 Available to backorder	Nut-Nyloc	£1.60 £1.33
10	HA09472 Available to backorder	Washer-Plain	£1.50 £1.25
12	HA305145W In stock	Handlebar - Upper	£66.32 £55.27
13	HA341033 In stock	Fastener-Drive	£1.70 £1.42
14	HA340182 In stock	Pin-Pivot	£1.66 £1.38
15	HA111-9662 In stock	Lever-Engine	£18.24 £15.20
16	HA09687 In stock	Screw	£1.68 £1.40
17	HA111-1921-03 In stock	Lever-Clutch	£43.56 £36.30
20	HA09438 Available to backorder	Nut-Nyloc	£1.66 £1.38
21	HA09780 Available to backorder	Setscrew	£1.80 £1.50
22	HA410037 In stock	Guide-Cable	£1.50 £1.25
24	HA111-0083 Available to backorder	Decal - Caution	£2.36 £1.97
25	HA432001W Available to backorder	Handlebar - Lower	£10.70 £8.92
26	HA09368 Available to backorder	Screw-HH	£1.58 £1.32
27	HA09441 Available to backorder	Nut-Hex. Ni	£1.56 £1.30
28	HA09475 Available to backorder	Washer	£1.58 £1.32
29	HA320006 In stock	Decal-Hoc	£1.66 £1.38
31	HA111-7656 Available to backorder	Spring - Rear Deflector Lh	£2.66 £2.22
32	HA111-7652 Available to backorder	Deflector - Rear	£22.96 £19.13
33	HA432010W Available to backorder	Frame - Grassbag	£27.92 £23.27
36	HA432021W Available to backorder	Plate - Discharge	£10.66 £8.88
37	HA111-7657 Available to backorder	End Cap - M8 Starlux	£1.46 £1.22
38	HA432007 Available to backorder	Pin - Deflector	£4.24 £3.53
39	HA09270 In stock	Washer-Plain	£1.68 £1.40
40	HA432022W Available to backorder	Bracket - Handlebar Lh	£39.46 £32.88
42	HA111-7683 Available to backorder	Nut-Rivet	£1.78 £1.48
43	HA1662 In stock	Key-Woodruff	£1.50 £1.25
46	HA111-7682 Available to backorder	Knob - Hoc	£3.42 £2.85
47	HA111-7279-03 Available to backorder	Connecting Rod 41	£23.70 £19.75
48	HA432027W Available to backorder	Axle - Rear 41	£57.52 £47.93
49	HA111-7662 Available to backorder	Wheel - Rear 200mm	£17.66 £14.72
50	HA111-7664 Available to backorder	Nut - M12 Nyloc	£3.32 £2.77
51	HA111-7665 Available to backorder	Trim - Front Wheel 180mm	£7.02 £5.85
52	HA111-7661 Available to backorder	Wheel - Front 180mm	£15.50 £12.92
53	HA111-7659 Available to backorder	Spacer Axle	£1.75 £1.46
54	HA111-7681 In stock	Retainer - Axle	£1.46 £1.22
55	HA111-7678 Available to backorder	Screw - Shoulder M6 x 6	£1.70 £1.42
56	HA09122 Available to backorder	Bolt-Unf	£1.66 £1.38
57	HA09273 In stock	Washer-Spring	£1.66 £1.38
59	HA111-7679 Available to backorder	Washer	£0.38 £0.32
61	HA432019W Available to backorder	Axle - Front	£40.42 £33.68
62	HAHY201026 In stock	Cutterbar 16"	£25.70 £21.42
67	HA111-7680 In stock	Axle Support	£2.58 £2.15
68	HA410087 In stock	Decal	£5.66 £4.72
69	HA111-7666 Available to backorder	Trim - Rear Wheel 200mm	£7.02 £5.85
84	HAMU710259 Available to backorder	Rivet-Pop	£3.08 £2.57
