Hayter Jubilee Push - 423N (423N001001 - 423N099999) - Upper Mainframe Diagram

Name: Hayter Jubilee Push - 423N (423N001001 - 423N099999) - Upper Mainframe Diagram
SKU: jubilee push psei854 upper mainframe diagram-group
Price: 1.29 GBP
Availability: InStock

Part No. jubilee push psei854 upper mainframe diagram-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Jubilee Push - 423N (423N001001 - 423N099999) - Upper Mainframe Diagram

Description

Hayter Jubilee Push - 423N

Serial No: 423N001001 - 423N099999

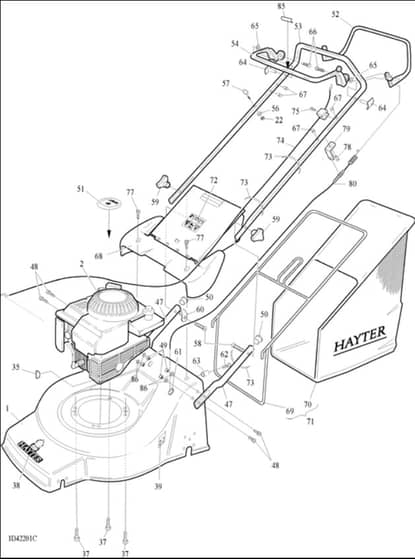

Upper Mainframe Diagram - Parts Diagram

	Part No.	Details
22	HA09544 In stock	Nut-Nyloc	£1.76 £1.47
35	HA1662 In stock	Key-Woodruff	£1.66 £1.38
38	HA410087 In stock	Decal Hayter Royal Warrant	£6.24 £5.20
39	HA320006 In stock	Decal-Hoc	£1.79 £1.49
48	HAZDH1H016U Available to backorder	Setscrew M8*16	£1.68 £1.40
49	HA09441 Available to backorder	Nut-Hex. Ni	£1.76 £1.47
53	HA305145W In stock	Handlebar Upper	£70.64 £58.87
54	HA111-9662 In stock	Lever-Engine	£20.12 £16.77
56	HA09472 Available to backorder	Washer-Plain	£1.55 £1.29
58	HAHY226024 In stock	Bolt-Handlebar	£1.81 £1.51
59	HA226013 In stock	Triangular Handwheel	£7.68 £6.40
61	HA70-07-014 Available to backorder	Grommet.	£2.17 £1.81
64	HA340182 In stock	Pin-Pivot	£1.84 £1.53
66	HA09687 In stock	Screw	£1.84 £1.53
70	HA422003 Available to backorder	Grassbag - Fabric.	£49.18 £40.98
72	HA111-0083 In stock	Decal - Caution	£2.60 £2.17
77	HA09546 In stock	Screw-Taptite	£1.85 £1.54
