Hayter Jubilee Push - 422V (422V001001 - 422V099999) - Lower Mainframe Diagram

Description

Hayter Jubilee Push - 422V

Serial No: 422V001001 - 422V099999

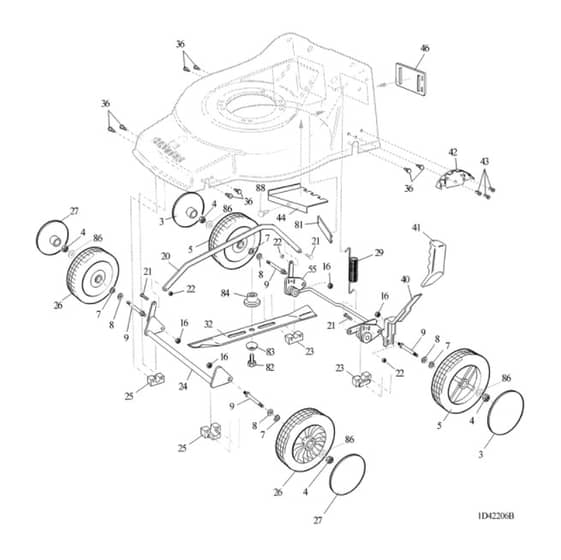

Lower Mainframe Diagram - Parts Diagram

	Part No.	Details
4	HAZNB1H000U Available to backorder	Nut	£2.51 £2.09
8	HAZWP1L000U Available to backorder	Washer-Plain	£2.54 £2.12
16	HA63-11-015 Available to backorder	Nut-Hex	£3.14 £2.62
21	HA09362 Available to backorder	Screw-HH	£1.66 £1.38
22	HA09544 In stock	Nut-Nyloc	£1.76 £1.47
25	HA422033 Available to backorder	Bracket - Front Axle.	£5.15 £4.29
26	HA422043 Available to backorder	Wheel - 180mm.	£34.86 £29.05
27	HA422045 Available to backorder	Cover - Wheel 180mm.	£4.68 £3.90
29	HA422037 Available to backorder	Spring - C/Balance.	£4.39 £3.66
35	HA1662 In stock	Key-Woodruff	£1.66 £1.38
38	HA410087 In stock	Decal Hayter Royal Warrant	£6.24 £5.20
39	HA320006 In stock	Decal-Hoc	£1.79 £1.49
43	HA9317 Available to backorder	Rivet	£0.95 £0.79
48	HAZDH1H016U Available to backorder	Setscrew M8*16	£1.68 £1.40
49	HA09441 Available to backorder	Nut-Hex. Ni	£1.76 £1.47
53	HA305145W In stock	Handlebar Upper	£70.64 £58.87
54	HA111-9662 In stock	Lever-Engine	£20.12 £16.77
56	HA09472 Available to backorder	Washer-Plain	£1.55 £1.29
58	HAHY226024 In stock	Bolt-Handlebar	£1.81 £1.51
59	HA226013 In stock	Triangular Handwheel	£7.68 £6.40
61	HA70-07-014 Available to backorder	Grommet.	£2.17 £1.81
64	HA340182 In stock	Pin-Pivot	£1.84 £1.53
66	HA09687 In stock	Screw	£1.84 £1.53
70	HA422003 Available to backorder	Grassbag - Fabric.	£49.18 £40.98
72	HA111-0083 In stock	Decal - Caution	£2.60 £2.17
77	HA09546 In stock	Screw-Taptite	£1.85 £1.54
82	HA09118 In stock	Bolt-HH	£1.99 £1.66
83	HAMU17X137 Available to backorder	Washer	£5.52 £4.60
86	HA09475 Available to backorder	Washer	£1.76 £1.47
