Hayter Jubilee Push - 422A (422A001001 - 422A099999) - Upper Mainframe Diagram

Name: Hayter Jubilee Push - 422A (422A001001 - 422A099999) - Upper Mainframe Diagram
SKU: jubilee push psei1535 upper mainframe diagram-group
Price: 0.78 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Jubilee Push - 422A (422A001001 - 422A099999) - Upper Mainframe Diagram

Description

Hayter Jubilee Push - 422A

Serial No: 422A001001 - 422A099999

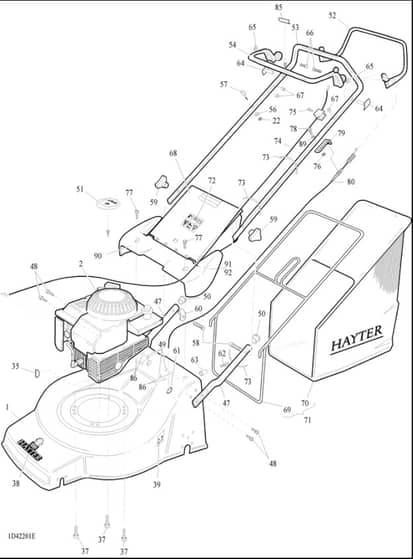

Upper Mainframe Diagram - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
4	HAZNB1H000U Available to backorder	Nut	£2.28 £1.90
8	HAZWP1L000U Available to backorder	Washer-Plain	£2.32 £1.93
16	HA63-11-015 Available to backorder	Nut-Hex	£3.04 £2.53
21	HA09362 Available to backorder	Screw-HH	£1.60 £1.33
22	HA09544 Available to backorder	Nut-Nyloc	£1.60 £1.33
25	HA422033 Available to backorder	Bracket - Front Axle.	£4.98 £4.15
26	HA422043 Available to backorder	Wheel - 180mm.	£33.70 £28.08
27	HA422045 Available to backorder	Cover - Wheel 180mm.	£4.52 £3.77
29	HA422037 Available to backorder	Spring - C/Balance.	£4.24 £3.53
35	HA1662 In stock	Key-Woodruff	£1.50 £1.25
38	HA410087 In stock	Decal Hayter Royal Warrant	£5.66 £4.72
39	HA320006 In stock	Decal-Hoc	£1.66 £1.38
43	HA9317 Available to backorder	Rivet	£0.97 £0.81
48	HAZDH1H016U Available to backorder	Setscrew M8*16	£1.62 £1.35
49	HA09441 Available to backorder	Nut-Hex. Ni	£1.56 £1.30
53	HA305145W In stock	Handlebar Upper	£66.32 £55.27
54	HA111-9662 In stock	Lever-Engine	£18.24 £15.20
56	HA09472 Available to backorder	Washer-Plain	£1.50 £1.25
58	HAHY226024 Available to backorder	Bolt-Handlebar	£1.64 £1.37
59	HA226013 In stock	Triangular Handwheel	£6.98 £5.82
61	HA70-07-014 Available to backorder	Grommet.	£2.10 £1.75
64	HA340182 In stock	Pin-Pivot	£1.66 £1.38
66	HA09687 In stock	Screw	£1.68 £1.40
70	HA422003 Available to backorder	Grassbag - Fabric.	£47.54 £39.62
72	HA111-0083 Available to backorder	Decal - Caution	£2.36 £1.97
77	HA09546 Available to backorder	Screw-Taptite	£1.68 £1.40
82	HA09118 Available to backorder	Bolt-HH	£1.80 £1.50
83	HAMU17X137 Available to backorder	Washer	£5.52 £4.60
86	HA09475 Available to backorder	Washer	£1.58 £1.32
88	HA02385 Available to backorder	Grip Fix	£1.50 £1.25
94	HA09363 In stock	Screw-HH	Was £1.61 £1.34 Special Price £0.94 £0.78
