Hayter Hunter 46 Push - 320 (320L001001 - 320L099999) - Lower Mainframe Diagram01

Name: Hayter Hunter 46 Push - 320 (320L001001 - 320L099999) - Lower Mainframe Diagram01
SKU: hunter 46 push psei803 lower mainframe diagram01-group
Price: 1.5 GBP
Availability: InStock

Part No. hunter 46 push psei803 lower mainframe diagram01-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

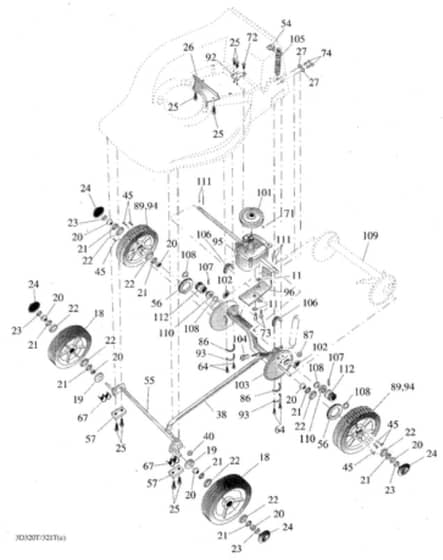

Hayter Hunter 46 Push - 320 (320L001001 - 320L099999) - Lower Mainframe Diagram01

Description

Hayter Hunter 46 Push - 320

Serial No: 320L001001 - 320L099999

Lower Mainframe Diagram01 - Parts Diagram

	Part No.	Details
25	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.84 £1.53
57	HA219037 In stock	Plate-Securing	£1.80 £1.50
64	HA09575 In stock	Screw-Taptite	£1.84 £1.53
67	HA219036 In stock	Moulding - Front Axle Bearing	£6.54 £5.45
105	HA300070 In stock	Spring-Compensating	£11.77 £9.81
