Hayter Hunter 46 AD - 321L (321L001001 - 321L099999) - Upper Mainframe Diagram

Name: Hayter Hunter 46 AD - 321L (321L001001 - 321L099999) - Upper Mainframe Diagram
SKU: hunter 46 ad psei810 upper mainframe diagram-group
Price: 1.29 GBP
Availability: InStock

Part No. hunter 46 ad psei810 upper mainframe diagram-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Hunter 46 AD - 321L (321L001001 - 321L099999) - Upper Mainframe Diagram

Description

Hayter Hunter 46 Autodrive Mower - 321L

Serial No: 321L001001 - 321L099999

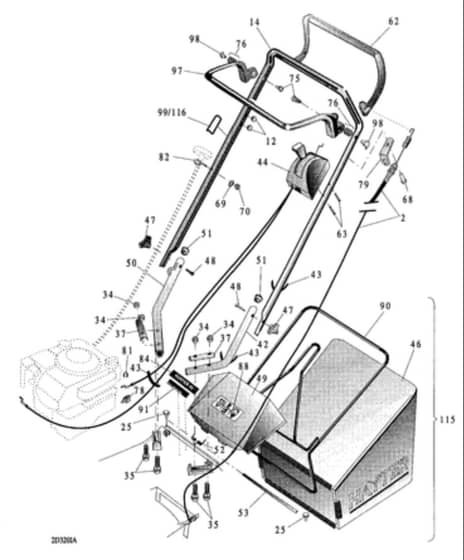

Upper Mainframe Diagram - Parts Diagram

	Part No.	Details
14	HA305145W In stock	Handlebar Upper	£70.64 £58.87
25	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.84 £1.53
34	HA09441 Available to backorder	Nut-Hex. Ni	£1.76 £1.47
35	HA09569 Available to backorder	Bolt Coach M8 x 45 C/Sq Gd 4.6	£1.57 £1.31
47	HA226013 In stock	Triangular Handwheel	£7.68 £6.40
48	HAHY226024 In stock	Bolt-Handlebar	£1.81 £1.51
62	HA111-1921-03 In stock	Lever-Clutch	£46.68 £38.90
69	HA09472 Available to backorder	Washer-Plain	£1.55 £1.29
70	HA09544 In stock	Nut-Nyloc	£1.76 £1.47
75	HA09687 In stock	Screw	£1.84 £1.53
78	HA219097 Available to backorder	Clip - Cable	£1.74 £1.45
88	HA111-0083 In stock	Decal - Caution	£2.60 £2.17
97	HA111-9662 In stock	Lever-Engine	£20.12 £16.77
98	HA340182 In stock	Pin-Pivot	£1.84 £1.53
