Allen Hover XR44 - 184E (311000001 - 311999999) - Mainframe

Name: Allen Hover XR44 - 184E (311000001 - 311999999) - Mainframe
SKU: hover xr44 184e mainframe-group
Price: 0.35 GBP
Availability: InStock

Part No. hover xr44 184e mainframe-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Allen Hover XR44 - 184E (311000001 - 311999999) - Mainframe

Description

Hayter Allen Hover XR44 - 184E

Serial No: 311000001 - 311999999

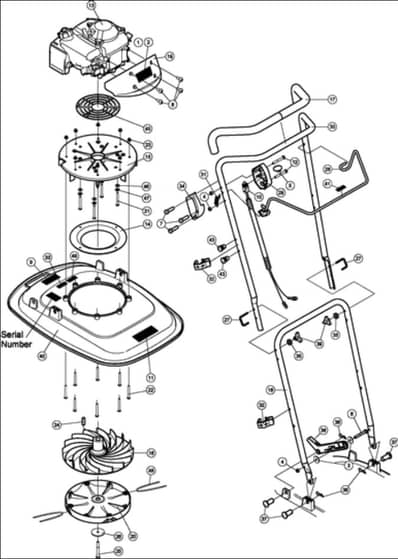

Mainframe - Parts Diagram

	Part No.	Details
3	HA09263 Available to backorder	Washer	£1.66 £1.38
4	HA09438 Available to backorder	Nut-Nyloc	£1.72 £1.43
5	HAHY3966 Available to backorder	Tie-Cable	£1.66 £1.38
6	HA09568 Available to backorder	Bolt-HH	£1.55 £1.29
8	HA09784 Available to backorder	Screw-Soc. Hd	£1.57 £1.31
9	HA111-2521 Available to backorder	Decal Warning	£3.54 £2.95
10	HA111-2054 Available to backorder	Opc Wire Loom Asm	£42.85 £35.71
11	HAH295128 Available to backorder	Logo Allen	£5.15 £4.29
12	HAH292309 Available to backorder	Bolt-Hex	£1.61 £1.34
14	HA111-1299 Available to backorder	Bell-Mouth	£7.18 £5.98
15	HA111-1300 Available to backorder	Plate-Engine	£34.39 £28.66
16	HA111-1302 In stock	Impeller	£82.20 £68.50
17	HAH292276 Available to backorder	Grip-Handle	£13.31 £11.09
18	HAH292254 Available to backorder	Handle-Lower	£40.16 £33.47
20	HA111-1381 Available to backorder	Disc-Cutting	£38.21 £31.84
21	HA09364 In stock	Screw-HH	£1.76 £1.47
22	HA111-1501 In stock	Screw-Pph	£1.68 £1.40
23	HA111-1502 Available to backorder	Nut-HHf. Ny	£1.74 £1.45
24	HA111-1503 Available to backorder	Key-Drive. Square Ended	£1.76 £1.47
25	HA111-1504 Available to backorder	Bolt-HH	£1.76 £1.47
26	HA111-1515 Available to backorder	Disc-Spring	£6.72 £5.60
28	HAH290239 Available to backorder	Arm-Bail	£42.14 £35.12
29	HA111-1525 Available to backorder	Switch Box Rh	£8.71 £7.26
30	HAH290237 Available to backorder	Handle-Upper	£58.60 £48.83
31	HA111-1773 Available to backorder	Spring-Return	£1.32 £1.10
32	HA111-1792 Available to backorder	Clip-P. Natural	£1.61 £1.34
33	HA111-2153 Available to backorder	Decal Eye/Ear Protection	£2.46 £2.05
34	HA111-1816 Available to backorder	Box-Switch. Lh	£9.52 £7.93
35	HA111-7679 In stock	Washer	£0.42 £0.35
36	HAH192040 Available to backorder	Clip-R	£4.84 £4.03
37	HAH192169 Available to backorder	Pin-Retaining	£1.03 £0.86
38	HAH192181 Available to backorder	Footstop	£9.98 £8.32
39	HAH192204 Available to backorder	Handwheel	£13.31 £11.09
40	HAH192257-SA Available to backorder	Deck	£66.84 £55.70
41	HAH295159 Available to backorder	Decal-Stop	£1.06 £0.88
43	HA341033 In stock	Fastener-Drive	£1.84 £1.53
44	HAHY412008 Available to backorder	Guide-Cable	£1.70 £1.42
45	HA111-4675 Available to backorder	Sink-Heat	£52.63 £43.86
46	HA09472 Available to backorder	Washer-Plain	£1.55 £1.29
47	HA09474 In stock	Washer-Spring	£1.72 £1.43
48	HA111-5252 Available to backorder	Nylon Cutting Line - 27M Spool	£27.34 £22.78
