Hayter Heritage RS82H - 148A (148A001001 - 148A099999) - Engine Cover

Name: Hayter Heritage RS82H - 148A (148A001001 - 148A099999) - Engine Cover
SKU: rs82h heritage tractor psei1749 engine cover panels-group
Price: 0.66 GBP
Availability: InStock

Part No. rs82h heritage tractor psei1749 engine cover panels-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Heritage RS82H - 148A (148A001001 - 148A099999) - Engine Cover

Description

Hayter Heritage RS82H - 148A

Serial No: 148A001001 - 148A099999

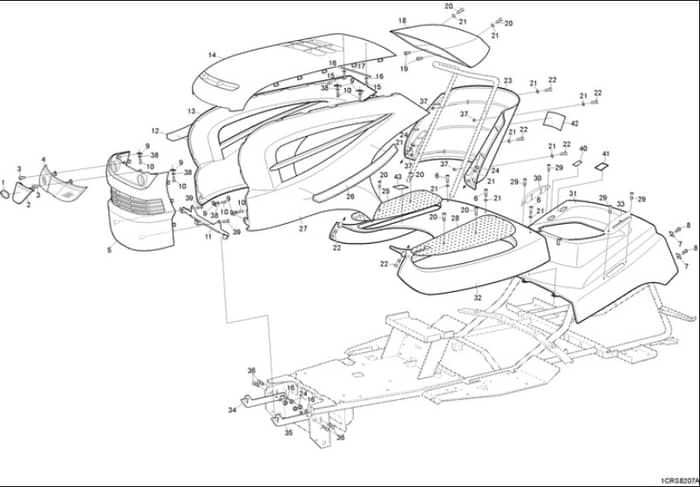

Engine Cover - Parts Diagram

	Part No.	Details
1	HA410064 Available to backorder	Decal - Blade Of Grass	£9.37 £7.81
5	HAAL52157413 Available to backorder	Grille	£91.08 £75.90
6	HAAL514317 Available to backorder	Screw	£1.34 £1.12
7	HAAL514331 Available to backorder	Nut	£1.15 £0.96
18	HAAL521084 Available to backorder	Cover	£71.64 £59.70
19	HAAL518482 Available to backorder	Screw	£1.15 £0.96
20	HAAL514316 Available to backorder	Screw	£1.15 £0.96
21	HAAL700148 In stock	Washer	£0.86 £0.72
22	AK700553 In stock	Bolt	£0.79 £0.66
25	HAAL51416101 Available to backorder	Mat Rh	£29.64 £24.70
27	HAAL52157613 Available to backorder	Panel Lh	£86.04 £71.70
30	HAAL521085 Available to backorder	Cover Rh	£21.72 £18.10
32	HAAL51400413 Available to backorder	Deck	£139.68 £116.40
33	HAAL521164 Available to backorder	Cover Lh	£23.76 £19.80
34	HAAL521461 Available to backorder	Rh Front Bracket	£16.44 £13.70
35	HAAL521462 Available to backorder	Lh Front Bracket	£16.44 £13.70
37	HAAL321126 Available to backorder	Nut	£2.35 £1.96
38	AK703451 In stock	Washer	£1.03 £0.86
40	HAAL51499901 Available to backorder	Plug	£2.45 £2.04
41	HAAL52113801 Available to backorder	Plug	£2.45 £2.04
